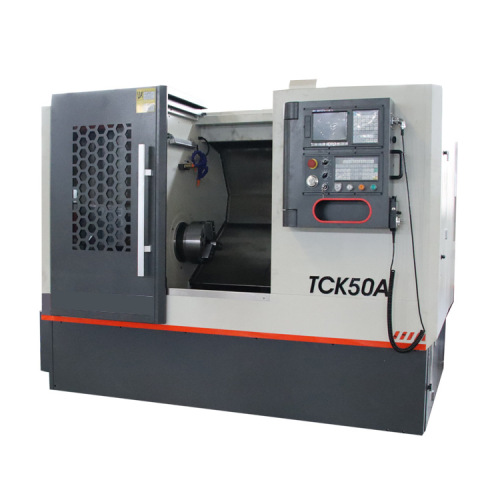

10" hollow chuck cnc lathe machine TCK50A

Item No.: 180
High accuracy taiwan linear guideway
High speed spindle unit,
High rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Add to Inquiry
Description

Specification

unit

TCK50A

Max.swing over bed

mm

560

Max.swing over cross slide

mm

260

Max.processing length

mm

500

Spindle unit

mm

200

Spindle nose (optional chuck)



A2-6

The spindle motor power

Kw

11

Max.spindle speed

rpm

3000

Spindle bore

mm

66

Bar capacity

mm

55

The X/Y axis screw specifications



3210 /4010

Max. X axis travel

mm

240

Max.Z axis travel

mm

540

Motor torque on X axis

N.M

10

Motor torque on Z axis

N.M

10

X/Z axis repeatability

mm

±0.003

Tool turret (optional)



8T/12T

Center height on tool turret

mm

100

Hdyraulic quill dia.

mm

70

Hydraulic quill traverse

mm

80

Hydraulic quill taper



M.T5

Hyraulic tailstock travel

mm

450

Machine size (LxWxH)

mm

2600x1850x2000

Net Weight

Kg

3000
