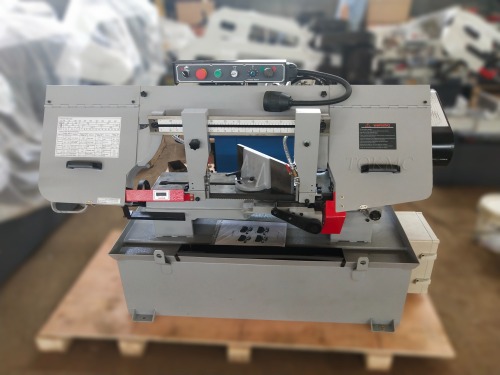

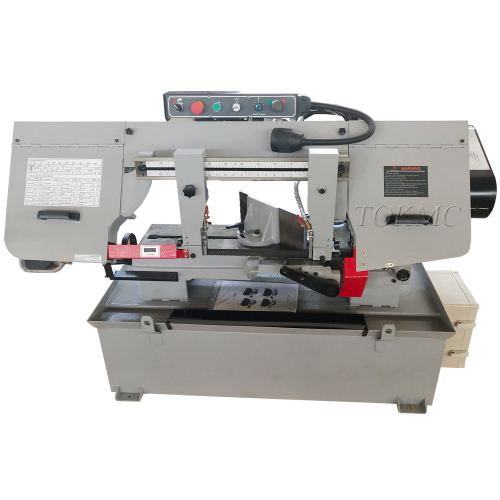

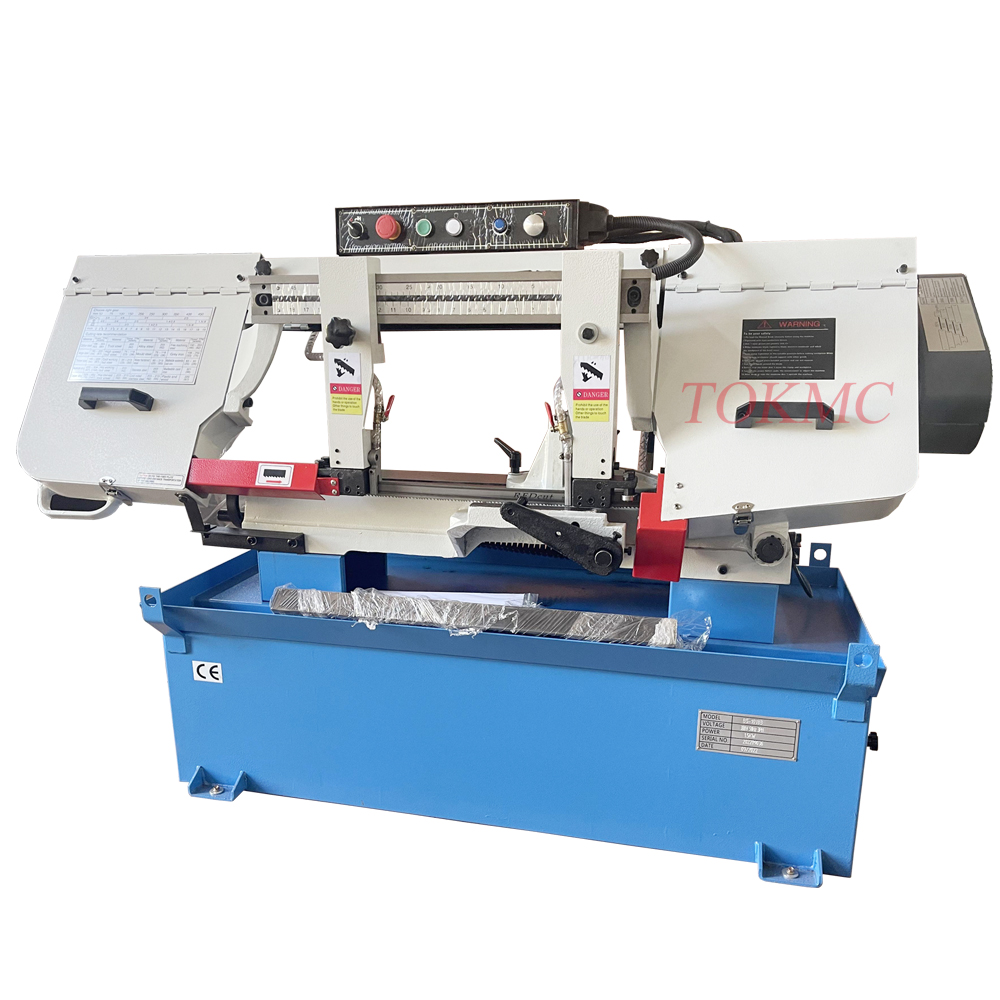

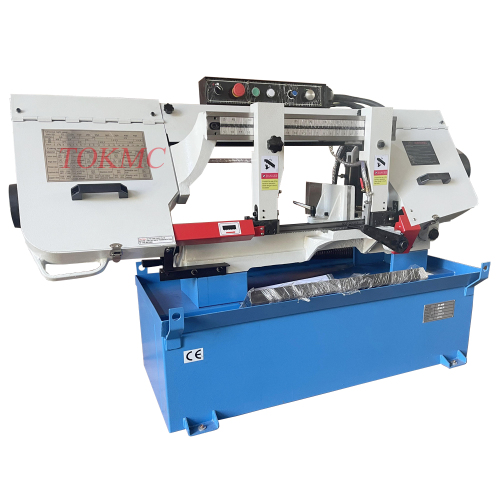

10" metal cut saw machine

Item No.: 091
Vertical force controlled by hydraulic cylinder
Strong structure for big capacity
Add to Inquiry
1. The maximum processing capability of BAND SAW BS-1018 is 10"(254mm)
2. Vertical force controlled through hydraulic cylinder.
3. Belt driven, with four cutting speed
4. Strong structure for big capacity cutting
5. Electric coolant system for extending the life of blade and improve the precision of work piece
6. High-capacity due to controlled by motor
7. Has the advantage of quickly clamping
8. The falling speed of saw bow is controlled by hydraulic cylinder
9. With a sizing device, machine will stop automatically after sawing materials
10. With power break protection device, machine will power off automatically when the rear protective cover is opened
Vertical force controlled by hydraulic cylinder
The bow can be swiveled between 45 and 90 degree
Model BS-1018B BS1018V
  Max Circular      @90 254mm (10" ) 254mm (10" )
  Rectangular @ 90 127x457mm (5" x18" ) 160x406mm(6.3x16)
Capacity Circular      @ 45 150mm (6" ) 170mm (6.7)
  Rectangular @ 45 150x190mm(6" x7.5" ) 160x190mm (6.3x7.5)
Blade speed                      60HZ 35,60,88,115 MPM 35,60,88,115 MPM
50HZ 26,50,73,95 MPM 26,50,73,95 MPM
Blade size 27x0.9x3280 mm 27x0.9x3215mm
Motor 1.5KW 2HP  3phase 1.5KW 2HP  3phase
Drive V belt V belt
Packing Size 183x83x115 cm 183x83x115 cm
NW/GW 310/385KGS 300/360 kgs
