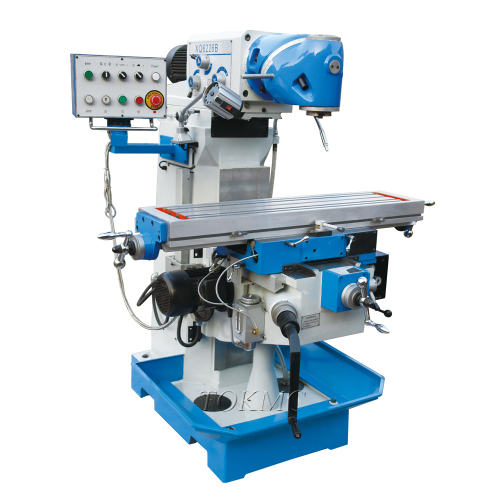

1120x260MM universal milling machine

Item No.: 099
Auto feed on X,Y,Z axes
Add to Inquiry
Description
Item XQ6226B
Head movement ±360°

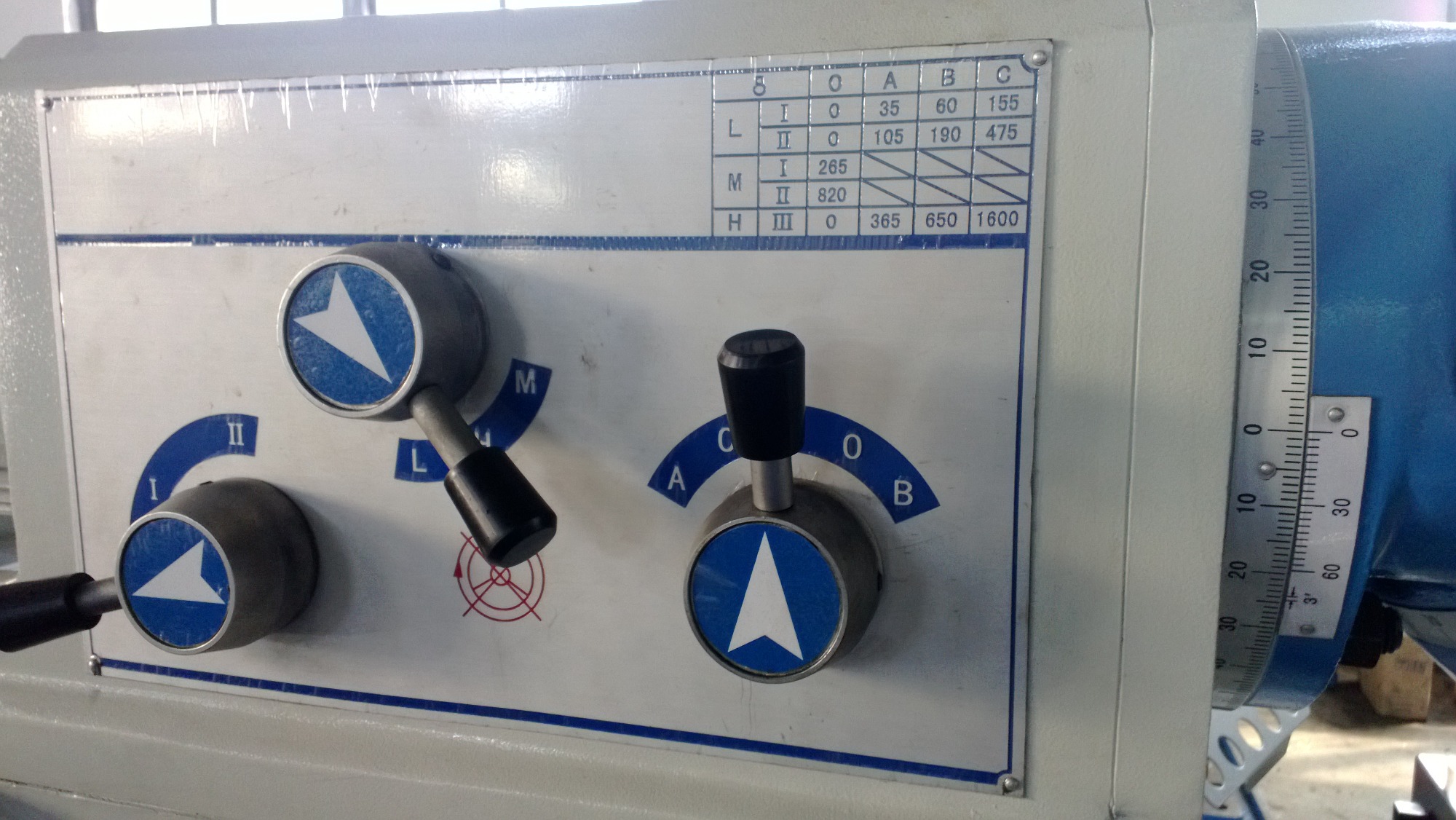

Spindle speeds 11step35-1600r.p.m.
Table size 1120×260mm
Table travel (Horizontal/Cross/Vertical) 600/270/400mm
Feeding range of longitudinal.cross travel 22-555mm
X,Y-axis Rapid feed speed 1080mm/min
Z-axis rapid feed speed 590mm/min
Z-axis motor power 750W
Max.weight of work piece 200kg
T-slot Number/Width/Distance 3/14mm/60mm

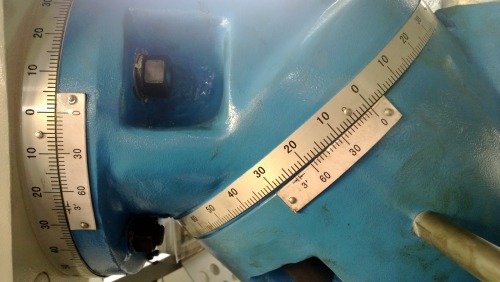

Milling head moving(Vertical) 55°
Cross slide way 55°
Longitudinal slide way 55°
Horse power for main motor 2.2kw(H)
X,Y-axis driving motor 750W
Overall dimension 1655×1500×1730mm
Packing size 1680×1600×2250mm
  2300×1600×2250mm
N.W./G.W. 1300/1400kg(2600/2800kg)
