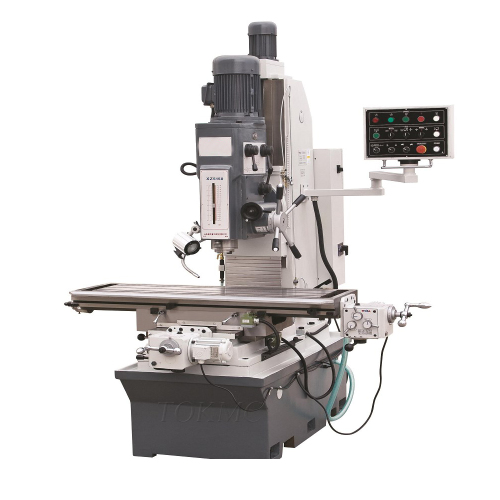

1220x360mm Mill Drill machine XZ5150

Item No.: 170
Rectangular guideway with high stability
Hardened and ground table surface
Automatic spindle feed
Motorized up and down headstock, swivel 45 degree
Add to Inquiry
Description

Milling machine

Unit

XZ5150

Table size

mm

1220×360

T slot no./width/distance

no

3/14/95

Max. load of Table

kg

300

Longitudinal travel

mm

600

Cross travel

mm

360

Vertical travel

mm

500

Spindle taper



ISO40

quill travel

mm

180

spindle speed /step

rpm

94-2256/16

spindle axis to column surface

mm

400

spindle nose to table surface

mm

120-620

Longitudinal/cross feed

mm / min

24-720

Vertical



1300

Longitudinal  rapid  speed

mm / min

1040

Rapid Traverse vertical



1300

main motor

kW

1.5/2.4

feed motor

kW

0.37

elevating motor for headstock

kW

0.55

coolant motor

kW

0.04

package dimension

cm

180×190×225

overall dimension

cm

173×173×230

N/W; G/W

kg

1750/1950
