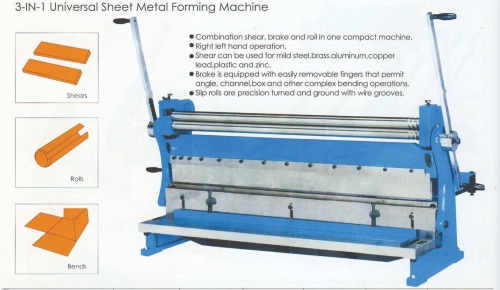

3-in-1 universal sheet metal forming machine

Item No.: 038
-Heavy duty type
-Back gauge standard equipment
-with two position handles
-Combination shear,brake ,roll in one compact machine, capacity 1.5mm
Add to Inquiry
Description
Model 3-IN-1/1067 3-IN-1/1320
Bed width(mm) 1067 1320
Max.shearing thickness(mm) 1.5 1.5
Max.bending thickness(mm) 1.5 1.5
Max.bending angle 90  90
Max.rolling thickness(mm) 1.5 1.5
Min.rolling dia.(mm) 60 60
Packing size(cm) 150X59X93 179X59X93
N.W./G.W.(kg) 390/440 470/530



-Removable male dies with female dies
-Back gauge standard equipment
-With two position handles
-Shear mild steel or equipment
-press brake-bends box and pan works
-Sectional fingers allow box and pan works
-Slip roll provided with forming grooves
Model 3-IN-1/1016 3-IN-1/1067 3-IN-1/1320
Bed width(mm) 1016 1067 1320
Max.shearing thickness(mm) 1.0 1.0 1.0
Max.bending thickness(mm) 1.0 1.0 1.0
Max.bending angle 90  90  90
Max.rolling thickness(mm) 1.0 1.0 1.0
Min.rolling dia.(mm) 43 43 43
Packing size(cm) 137X45X72 139X54X78 168X54X78
N.W./G.W.(kg) 195/215 276/297 349/399
