Model |
unit |

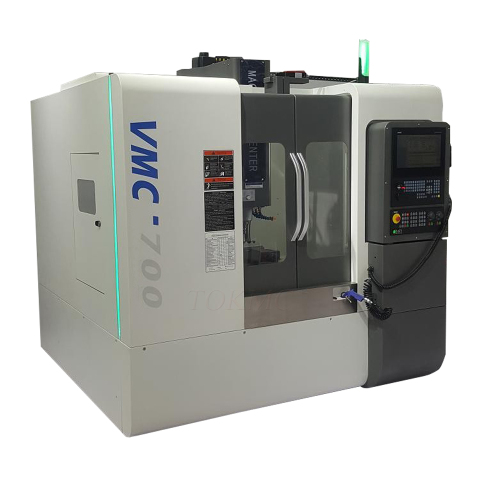

VMC700 |
|
Table size |
mm |
920x400 |
|
T slot no./width/distance |
|
3/14/120 |
|
Max. load of worktable |
kg |
300 |
|
Longitudinal travel |
mm |
700 |
|
Cross travel |
mm |
400 |
|
Vertical travel |
mm |
500 |
|
spindle nose to table surface |
mm |
120-620 |
|
spidle axis to column surface |
mm |
425 |
|
Spindle taper |
|
BT40 |
|
Speed Range |
RPM |
40-6000 |
|
spindle motor power |
kw |
5.5 |
|
cutting feed X/Y/Z |
mm / min |
1-10000 |
|
rapid feed X/Y/Z |
m / min |
30/30/24 |
|
tool magazine capacity |
piece |
16 |
|
tool magazine type |
|
drum-type |
|
Max. tool diameter |
mm |
Φ130(adjancent tool empty) |
|
Max. tool length |
mm |
300 |
|
Max. tool weight |
kg |
8 |
|
Tool changing time (tool-tool/cut-cut) |
s |
3/7 |
|
positioning accuracy |
mm |
±0.005/300 JIS |
|
repeat positioning accuracy |
mm |
±0.003 JIS |
|
air pressure |
Mpa |
0.5-0.7 |
|
overall dimensions(LxWxH) |
mm |
2180x2052x2600 |
|
N/W |
kg |
3200 |
