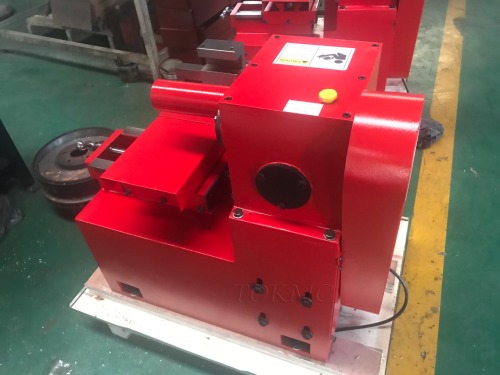

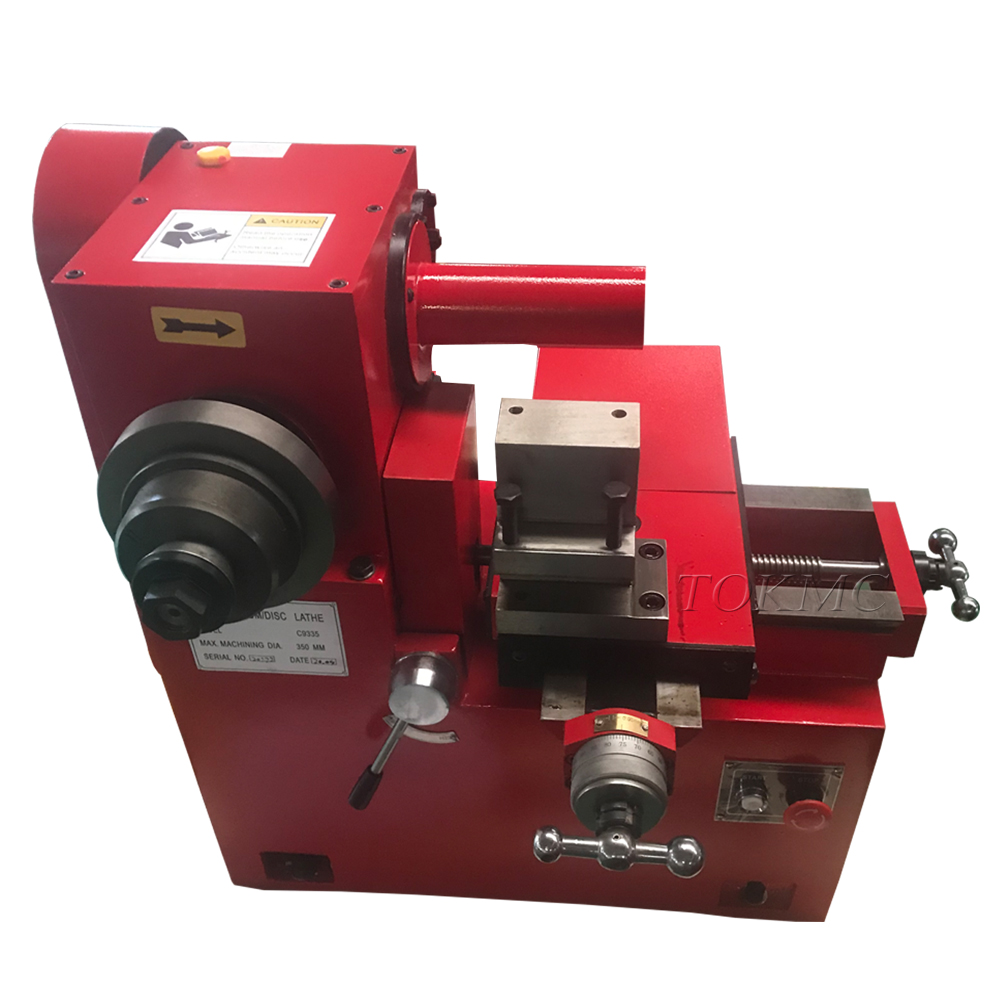

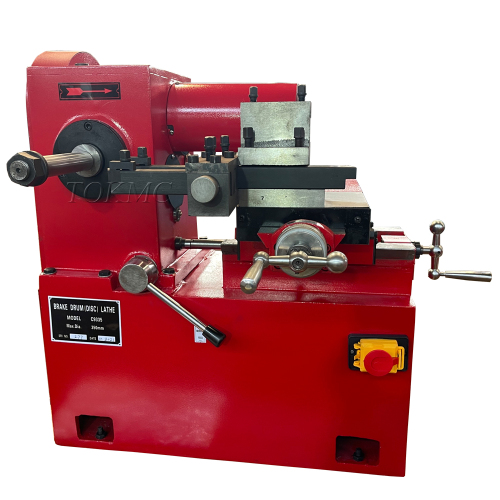

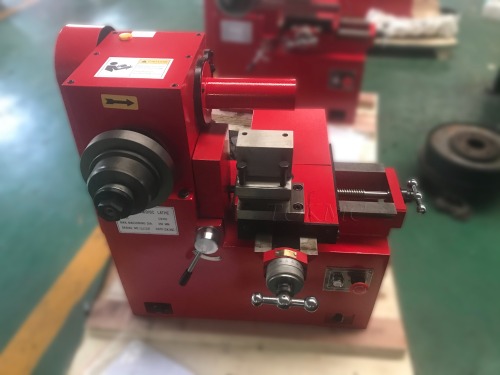

brake disc drum lathe C9335

Item No.: 125
-Repair small brake drum disc
It can be feeding either manual or auto
-Faces of brake disc can be turned simultaneously.
Add to Inquiry
Specification Unit C9335
Range of processing diameter Brake drum mm φ180-φ350
Brake plate mm φ180-φ350
Rotating speed of workpiece r/min 90
Max. travel of tool mm 100
Overall dimension(LxWxH) mm 695x565x635
Packing dimension(LxWxH) mm 750x710x730
N.W/G.W kg 200/260
Motor power kw 0.75
220V /380V /415Voltage , three phase or two phase
