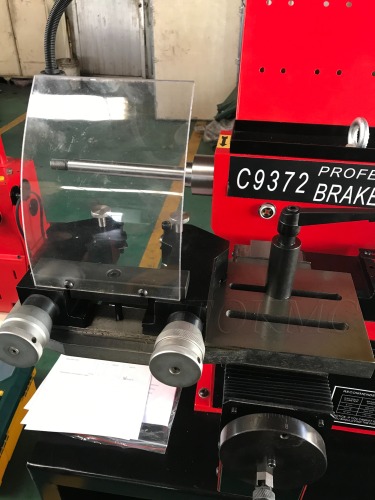

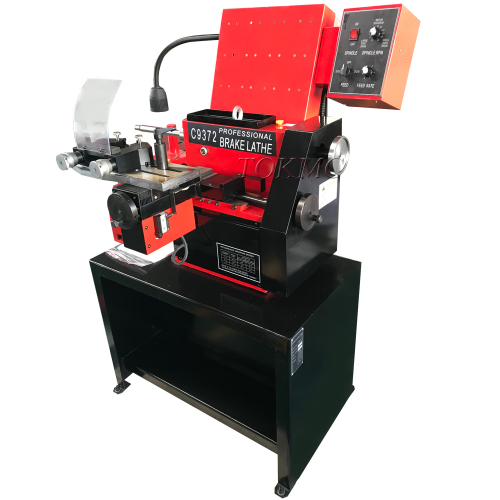

Brake drum disc lathe C9372 single phase motor

Item No.: 130
Applicable for repairing medium /small brake disc drum.

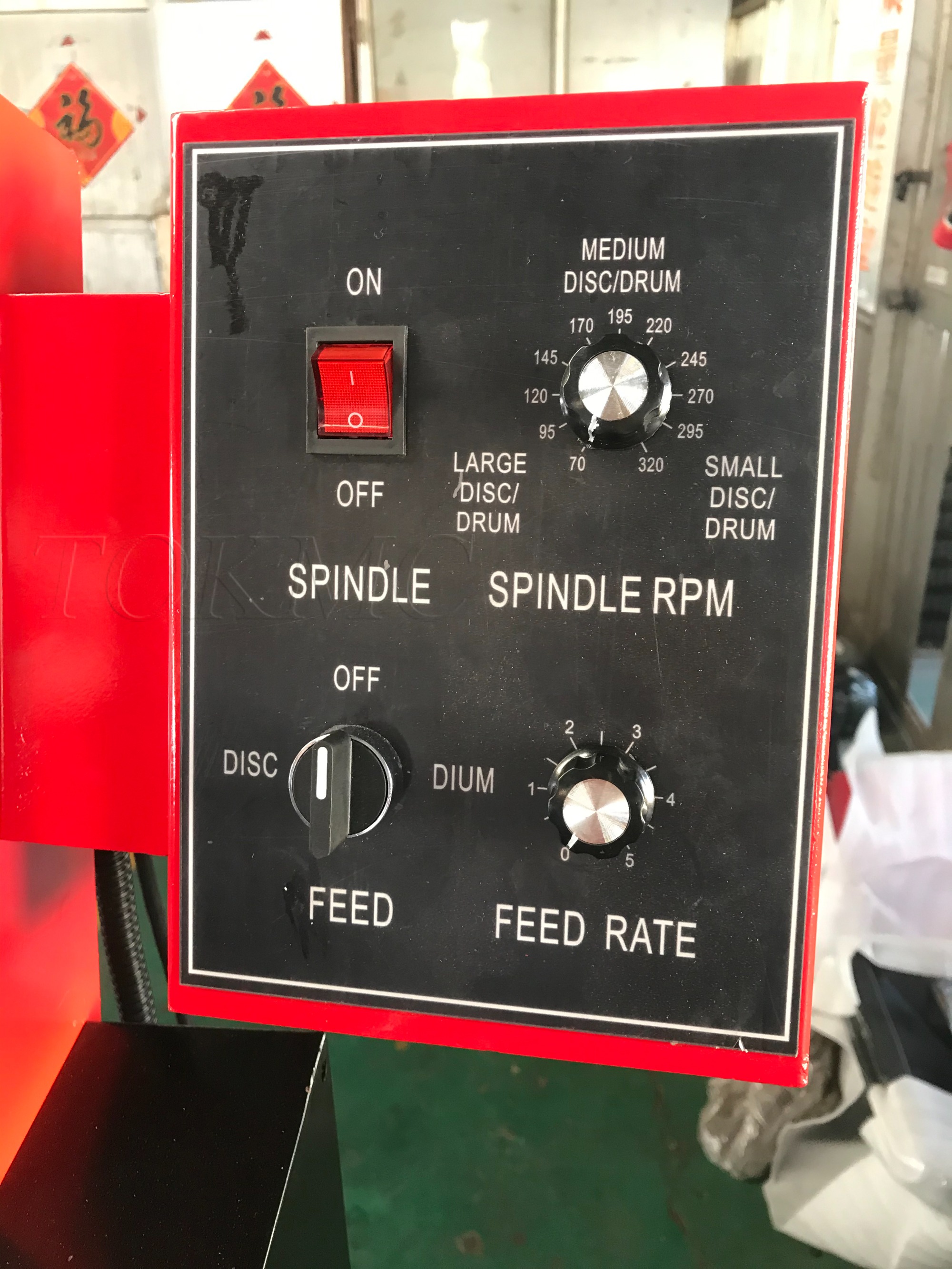

DC drive enables variable spindle speed (max.320rpm) & feeding speed.
Add to Inquiry
Description
Specification C9372
Rotor Diameter 180-508mm
Drum Diameter 152-500mm
Rotor Thickness 73mm
Drum Depth 165mm)
Spindle Travel /
Spindle Speed 70-320RPM
Spindle Feed Speed 0"-0.026"(0-0.66mm)
Cross Feed Speed /
Handwheel Graduations /
Motor 110V/220V,50/60Hz
Gross Weight 220KG
Dimension 1010*720*1430mm
