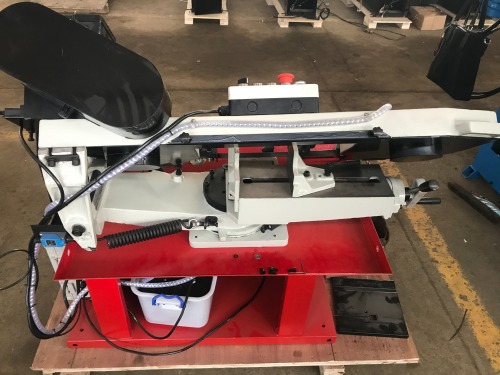

BS712R swivel base saw machine 7"

Item No.: 085
. The maximum processing capability of BAND SAW BS-712 series is 7" (178 mm)
. Vertical force controlled through hydraulic cylinder.
. Belt driven, with four cutting speed
Add to Inquiry
Description
. High-capacity due to controlled by motor
. The falling speed of saw bow is controlled by hydraulic cylinder
. With a sizing device, machine will stop automatically after sawing materials
MODEL BS-712R
Capacity Circular @ 90° 178mm(7")
Rectangular @90° 178 x 210mm(7" X8.25" )
Circular @45° 127mm(5")
Rectangular @45° 85x 140mm(3.33" x5.5" )
Blade speed @60Hz 27, 41, 59, 78 MPM
@50Hz 22, 34, 49, 64 MPM
Blade size 19.05 x 0.8 x 2362mm
Motor power 750W 1HP(3PH),
Drive V-belt
Packing size 132 x 77 x 115cm(body)
52" x30" x45"(stand)
N.W./G.W. 170/190kg
