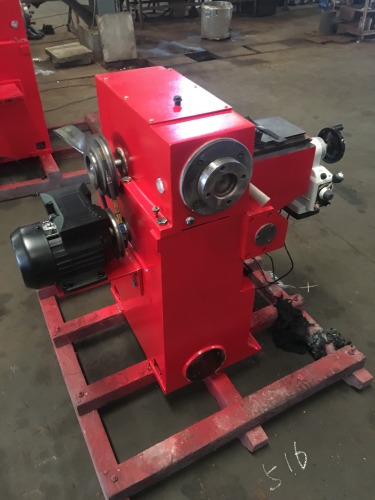

C9365 brake drum lathe

Item No.: 133
Applicable for repairing brake drum discs of large medium vehicles.
2 electric power feed enables infinitely variable feeding in either direction with high efficiency
Specical support enables stability for turning heavy drums
2 faces of brake disc can
Request Quote
Description
Specification Unit C9365 C9365A
Range of processing diameter Brake drum mm φ350-φ650
Brake plate mm φ180-φ480 φ180-φ480
Rotating speed of workpiece r/min 30, 49, 88 30, 49, 88
Max. travel of tool mm 256 256
Overall dimension(LxWxH) mm 1750x800x815 1750x800x815
Packing dimension(LxWxH) mm 1165x956x915 1165x956x915
N.W/G.W kg 480/580 400/500
Motor power kw 1.1 1.1
