PLC contral auto cutting.
| Model |
unit |

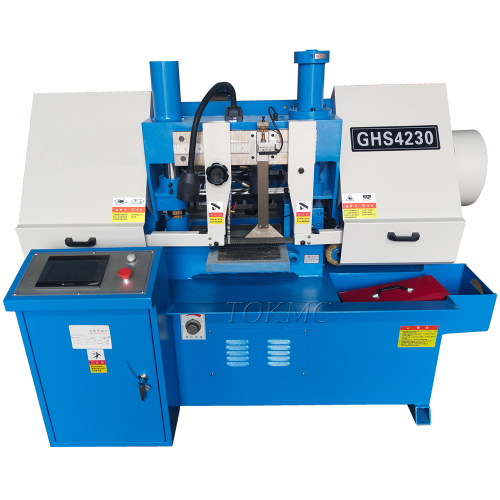

GHS4230 |
GHS4235 |
GHS4235/50 |
| Cutting capacity |
mm |
300-300x300 |
350-350x350 |
350-350x500 |
| Blade speed |
m/min |
27、45、69 |
27、45、69 |
27、45、69 |
| Saw blade size |
mm |
3505x27x0.9 |
4115x34x1.1 |
4425x34x1.1 |
| Maximum cutting seam width |
mm |
1.1 |
1.3 |
1.3 |
| Main motor power |
kw |
3 |
4 |
4 |
| Hydraulic motor power |
kw |
0.75 |
0.75 |
0.75 |
| Coolant pump |
w |
90 |
90 |
90 |
| Clamping |
|
Auto hydraulic |
Auto hydraulic |
Hydraulic vice |
| Main transmission |
|
Worm gear |
Worm gear |
Worm gear |
| Feeding type |
|
Auto hydraulic |
Auto hydraulic |
AUTO |
| Saw machine Size |
mm |
1800x2350x1500 |
2000x2350x1600 |
2100x2350x1800 |
| Package size |
mm |
2000x2450x1650 |
2250x2450x1600 |
2200x2450x1900 |
| Weight |
Kgs |
1400 |
1600 |
1600 |
| Model |
unit |
GHS4240 |
GHS4250 |
GHS4260 |
| Cutting capacity |
mm |
400-400x400 |
500-500x500 |
600-600x600 |
| Blade speed |
m/min |
27、45、69 |
27、45、69 |
27、45、69 |
| Saw blade size |
mm |
5000x41x1.3 |
5800x41x1.3 |
6640x67x1.6 |
| Maximum cutting seam width |
mm |
1.5 |
1.5 |
1.8 |
| Main motor power |
kw |
5.5 |
5.5 |
5.5 |
| Hydraulic motor power |
kw |
0.75 |
1.5 |
1.5 |
| Coolant pump |
w |
90 |
90 |
125 |
| Clamping |
|
Auto hydraulic |
Auto hydraulic |
Auto hydraulic |
| Main transmission |
|
Worm gear |
Worm gear |
Worm gear |
| Feeding type |
|
Auto hydraulic |
Auto hydraulic |
Auto hydraulic |
| Saw machine Size |
mm |
2380x2280x1850 |
2780x2250x2000 |
3150x2700x2100 |
| Package size |
mm |
2460x2320x2000 |
2960x2320x2200 |
2960x2320x2200 |
| Weight |
Kgs |
2000 |
2400 |
3000 |
Standard equipment :
PlC control
1 saw blade belt
Hydraulic workpiece clamping
Bundle vise
Material support stand
Coolant system
Work lamp
Operation manual
Optional equipment:
automatic blade breakage control
Fast drop protection devise
Hydraulic blade tension
automatic chip removal device
Various blade linear speed
Blade protection covers
Wheel cover opening protection
Ce standard electrical equipment
