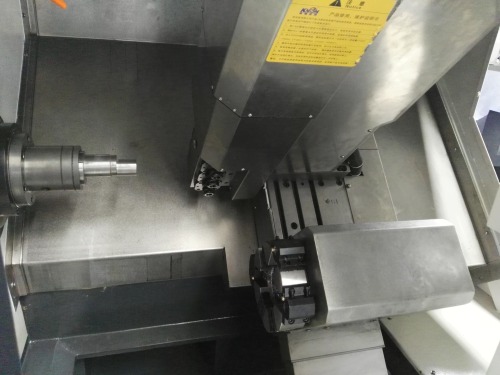

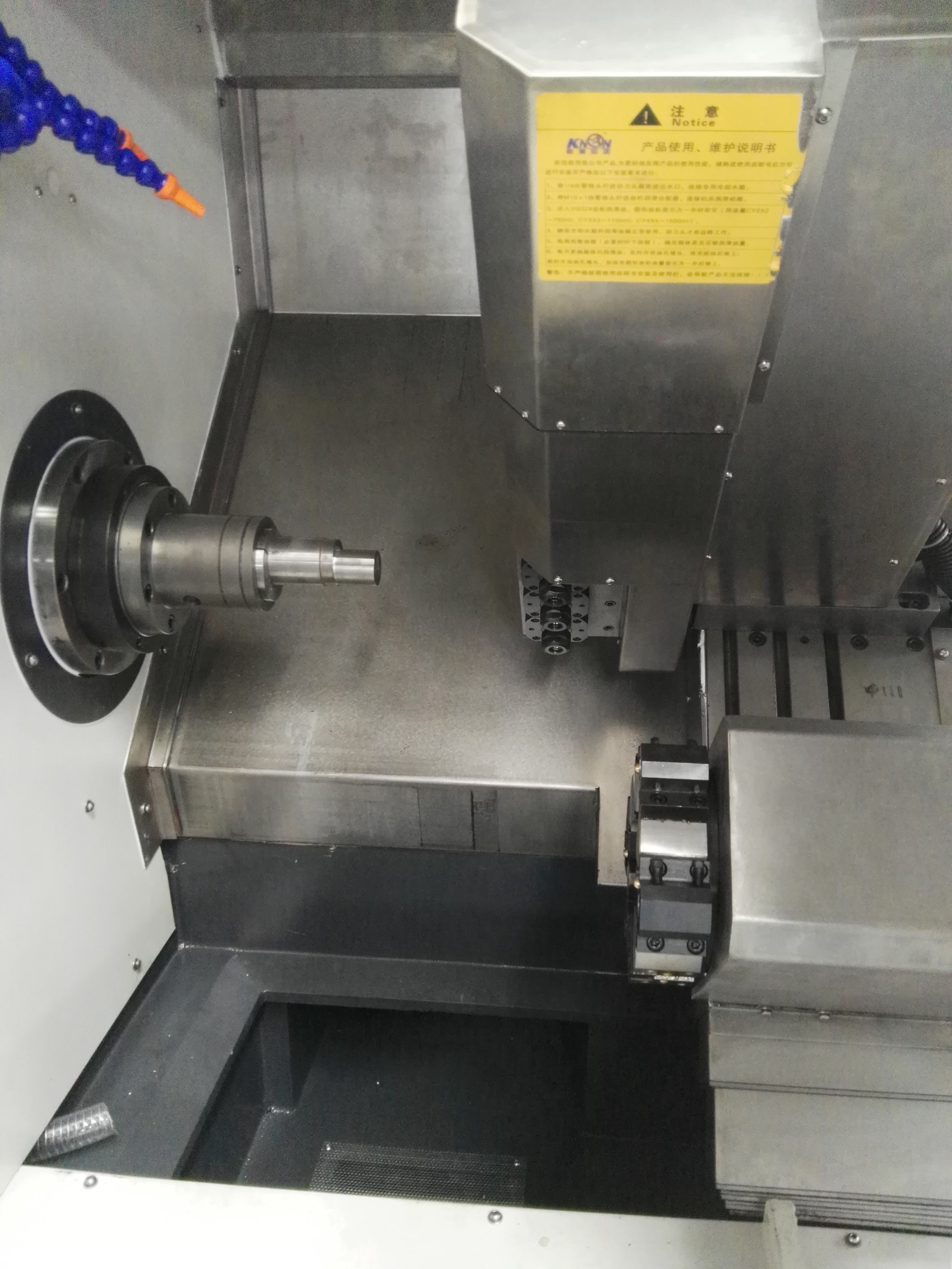

cnc lathe machine with tool holder tok6350

Item No.: 149
1.45 degree slant bed cnc lathe
2.Higher accuracy taiwan linear guideways
3.Chip convey is optional, right or in the back position
4.Spindle units two types, heavy duty cutting for bearing and gear processing and high speed type for high precision proc
Add to Inquiry
Description
specification TOK6350
Max. swing over bed 520mm
max. swing over cross slide 220mm
Max.processing length 410 gang tools/330 turret tools
x axis travel 500mm
z axis travel 500mm
Spindle unit 200mm
Spindle nose A2-6
Spindle bore 66mm
Bar capacity 55mm
Max.spindle speed 3000rpm
Chuck size 10”
Spindle motor 7.5/11kw
X/Z axis repeatability ±0.003mm
Feed Motor torque on X/Z axis 7.5 / 7.5 N.M
X/Z axis rapid traverse 24/24m/min
Turret type Gang tool/turret optional
Cutting tool size 25x25mm
Guidway type 45 degree
Total power capacity 14/18 kva
Size 250x162x189cm
Weight 2900kgs
