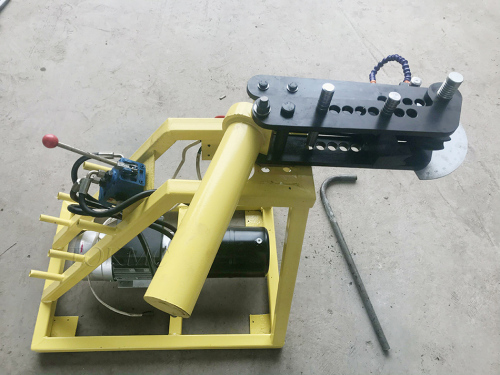

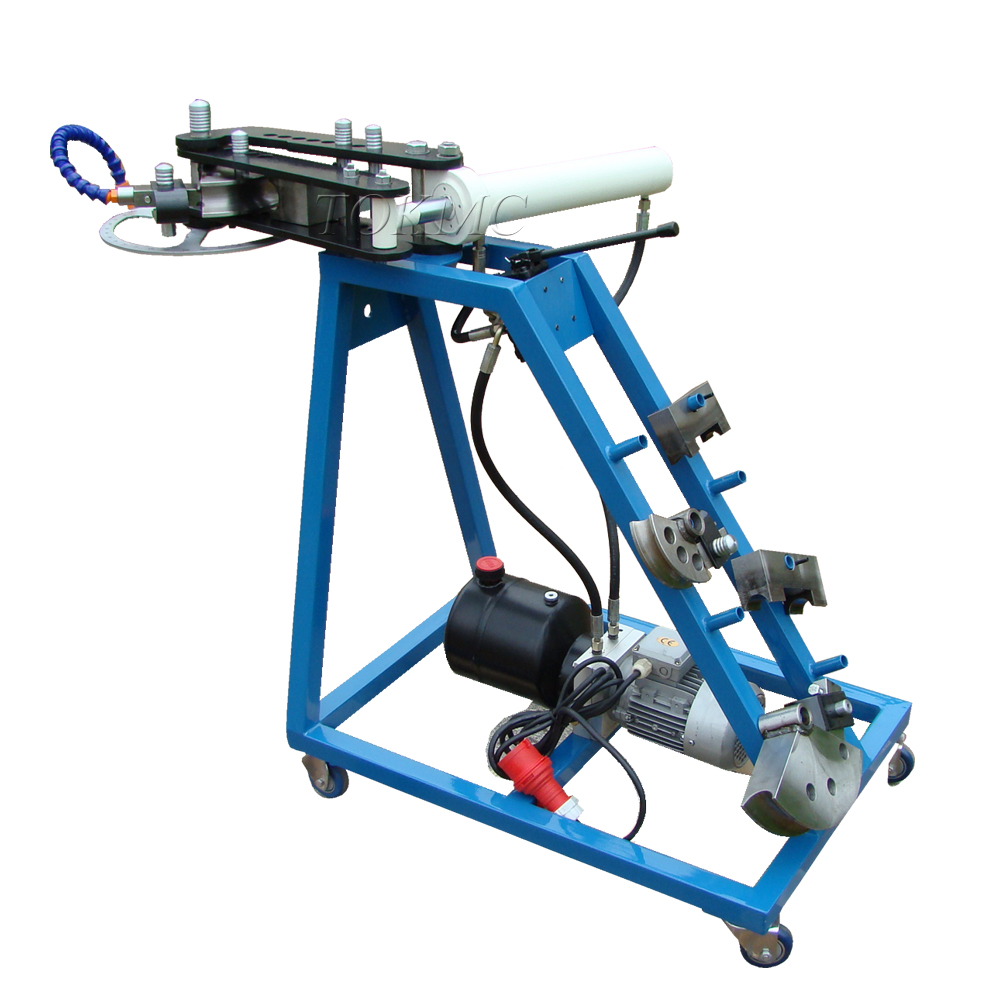

Electrical hydraulic tube bender HTB-1000
Item No.:
010
max.diameter 51mm
max.thickness 3mm stainless steel
110 V/220V,single phase is optional
Add to Inquiry
Contact Us
facebook
line
twitter
whatsapp
pinterest
tumblr
Description
Portable and easy to bend up to 2” schedule 40 pipe(1.54”)
Dies available in 120
a
nd 240
degree
Aluminum bronze bushings at pivot points
Capacity greater than bender costing 3 times as much
Electric hydraulic pipe bender HTB-1000 has a handle to control the travel of cylinder easily.
It has various dies to bend different pipes.
Standard ides include: 1”x3”, 1-1/2”x5”, 1-3/4”x6” in 120
.
Optional dies include: 3/4”x3”,7/8”x3”, 1”x3”, 1-1/8”x3”, 1-1/4”x4”, 1-1/2”x4”, 1-1/2”x5”, 1-5/8”x5”, 1-3/4”x6”, 2”x6”, 3/4”x3”, 1”x4”, 1-1/4”x5”, 1-1/2”x6”
POWER: 550W
Model
HTB-1000
Capacity
3/4"-2"
Wall thickness
4mm
Angle
120º /240º
Packing size
140x 70 x 116 cm
N.W/G.W
102 / 154 kg
