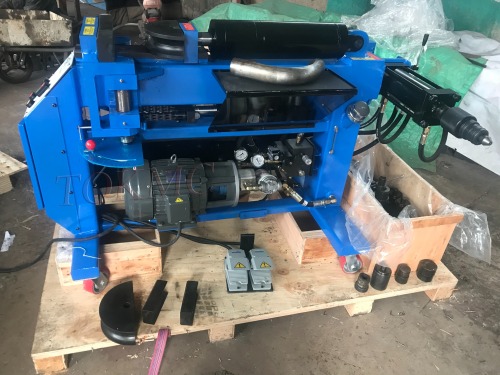

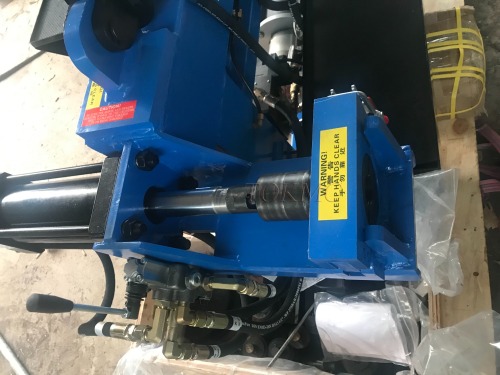

exhaust pipe bender,shrinker,expander HTB-2000

Item No.: 109
Request Quote
Description
Exhaust pipe tube bender, shrinker, expander
BENDER SPECIFICATIONS
Bending Capacity 1/2’’ OD 2-1/2 /(3”)
Maximum Bending Diameter 2-1/2 /(3”)
Swaging Capacity 1/2” OD 1’’ OD to 3’’OD
Motor/power Supply 7.5HP/3 Phase-220,380,or 440V
Hydraulic Pump Output 3A-8R(4200PS)
Operation Mode Button and Foot operated Controls
Hydraulic Filter Canister Type
Maximum Bending Force 3,500Pounds
Depth-of-bend Plate Preset to Stop Any Desired Bend Depth
Package Measurement(cm) 1950×1300×950mm
weight 750 kg

4 size of bending dies 1-1/2,1-5/8,2,2-1/2,1-3/4(inch)
38.1, 41.3, 50.8, 63.5, 44.5(mm)
5 sizes of back shoe sets 1-1/2, 1-5/8, 1-3/4, 2, 2-1/2, (inch)
38.1, 41.3, 44.5, 50.8, 63.5, (mm)
5 sizes of half shoes 1-1/2, 1-5/8, 1-3/4, 2, 2-1/2, (inch)
38.1, 41.3, 44.5, 50.8, 63.5, (mm)
4 size of bend plugs 1-1/2, 1-5/8, 1-3/4, 2, 2-1/2, (inch)
38.1, 41.3, 44.5, 50.8, 63.5, (mm)
3 sizes of reducing tools 1-3/4, 1-7/8, 2(inch)
44.5, 47.6, 50.8(mm)
5 sizes expander dies 1-1/2, 1-5/8, 1-3/4, 2, 2-1/2, (inch)
38.1, 41.3, 44.5, 50.8, 63.5, (mm)
5 sizes adaptor collars 1-1/2, 1-5/8, 1-3/4, 2, 2-1/2, (inch)
38.1, 41.3, 44.5, 50.8, 63.5, (mm)
5 sizes segment expander sets 1-1/2, 1-5/8, 1-3/4, 2, 2-1/2, (inch)
38.1, 41.3, 44.5, 50.8, 63.5, (mm)
1 segment expand arbor
1 rotation gauge
