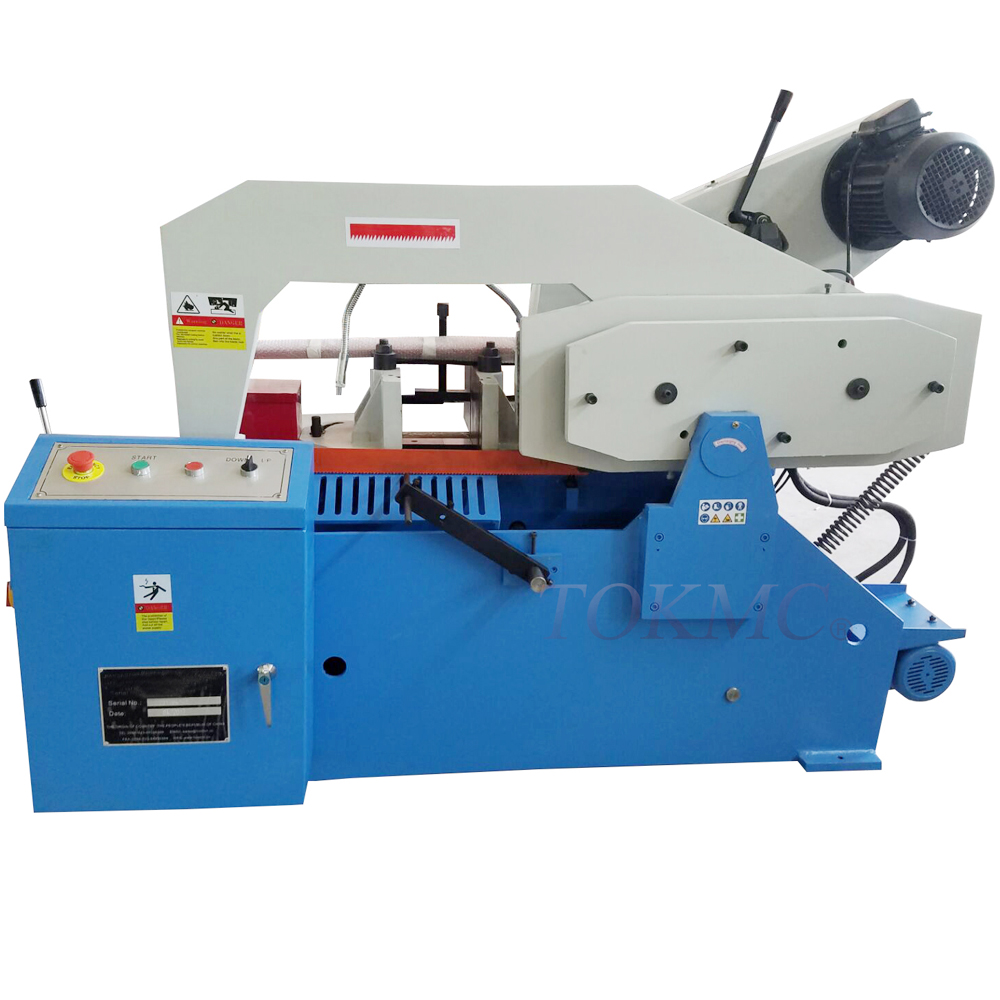

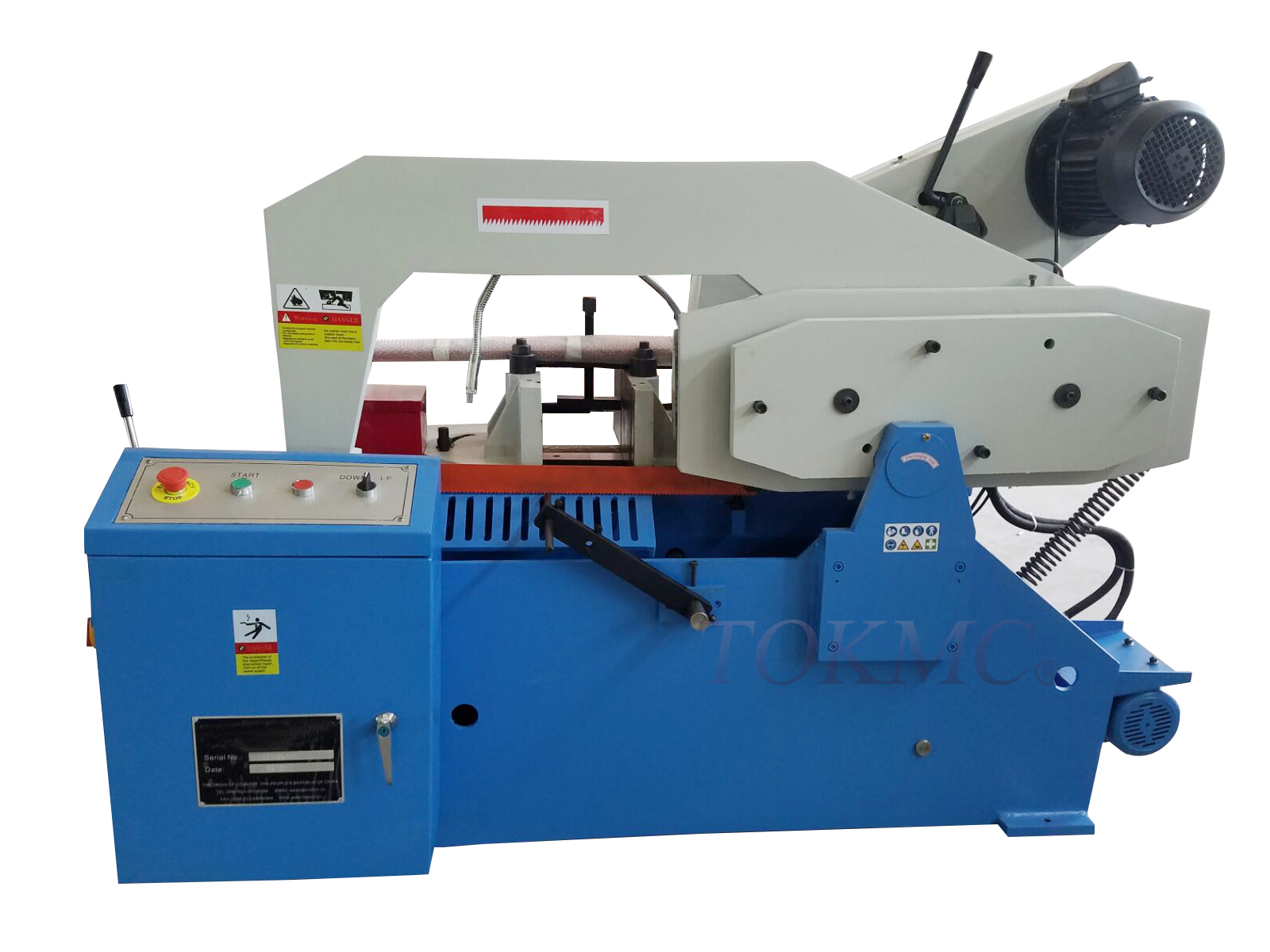

Feature of Hack Saw Machine
l different speeds and a wide cutting scope.
l a high-efficiency arc-push saw which is one and a half times more efficient than that of normal sawing machines
l a new style V-shaped transmision belt which is very quiet(no louder than 74db)
l electrical components are installed inside, thus gidving it an elegant outer appearance and rendering if extremely safe.
l Auto cutting process except gripping device and feeing mechanism.With Protective System.
l Hydraulic transmission simple running Easy upkeep
|
Model |
HS7150 |
|
|
Cutting capacity |
Round bar |
500mm |
|
|
Square bar |
400x400mm |
|
|
Oblique saw |
45° |
|
Sawing speed |
34,60,84 |
|
|
Blade size |
750x63x2.5mm |
|
|
Main motor |
4.34kw |
|
|
Coolant pump motor |
0.09kw 2step |
|
|
Saw blade rapid down |
0.25kw 4step |
|
|
Packing size |
2440x1190x1760mm |
|
|
N.W./G.W. |
1450/1700kg |
|
