Machine Model |

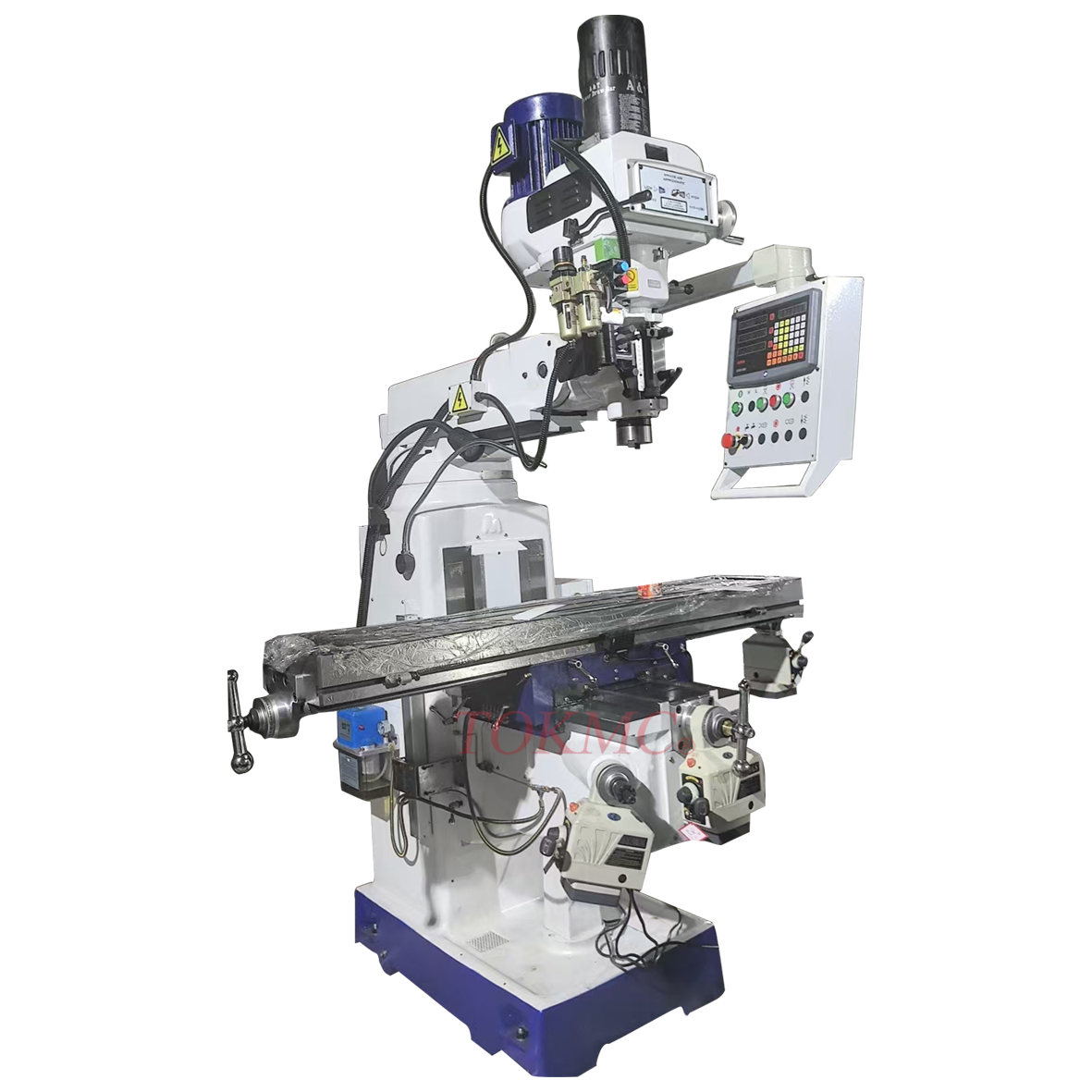

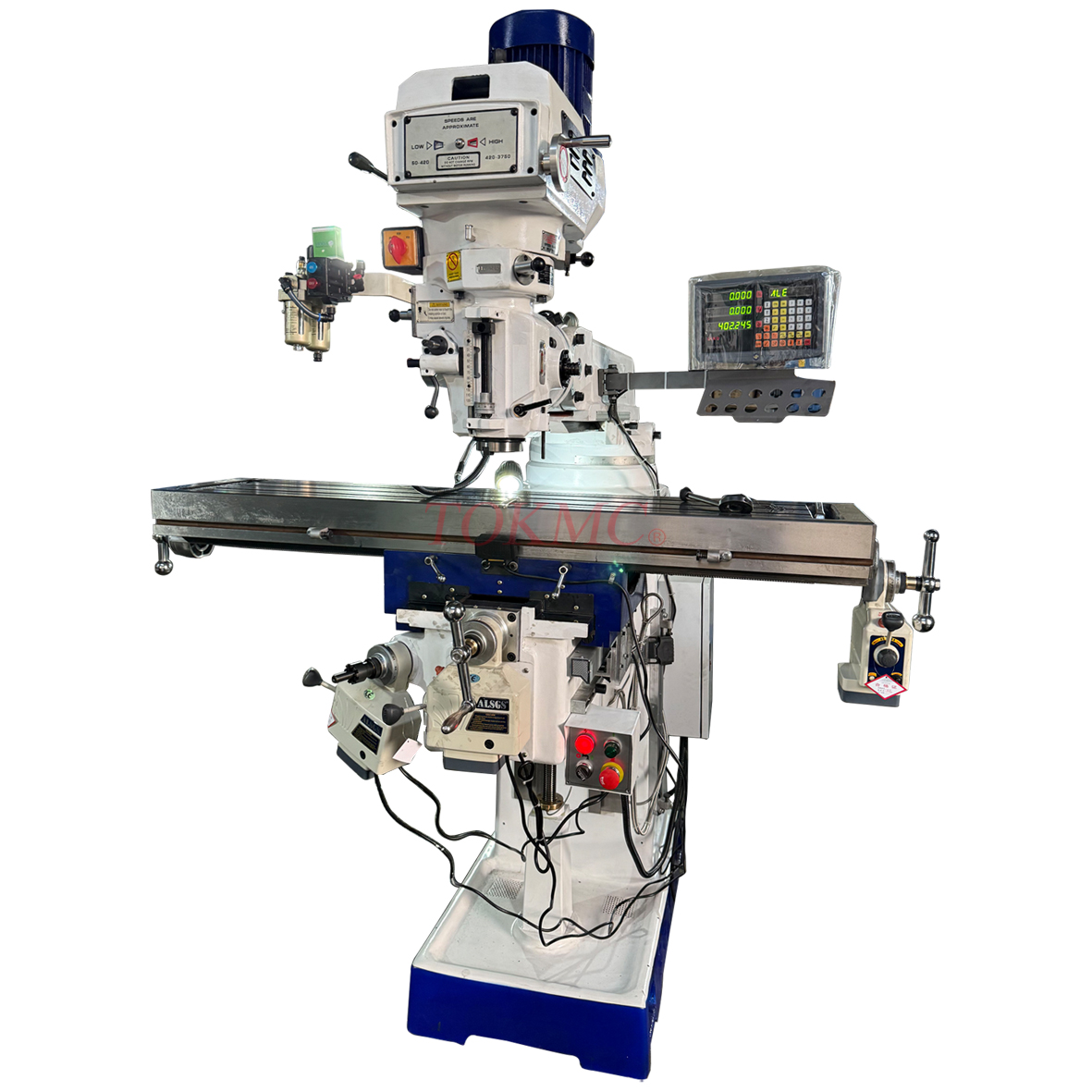

X6325VSH |
||
|
Working Surface Area of Table |
320x1500 mm |
||
|
12.5”x*59” |
|||
|
Travel of Table |
X-axis(mm) |
1000 manual / 1000 auto |
|
|
Y-axis(mm) |
400 manual / 377 auto |
||
|
Z-axis(mm) |
430 manual / 400 auto |
||
|
Guideway |
Y-axis(mm) |
■Square |
|
|
Z-axis(mm) |
▲Angle |
||
|
Spindle |
Spindle Taper |
NT40 7:24 |
|
|
Spindle travel（mm) |
127 |
||
|
Spindle Speed |
60-4200 rpm variable |
||
|
Quill dia. |
85.7mm |
||
|
Spindle Feed（mm) |
0.076/0.003” 0.038/0.0015” 0.203/0.008” |
||
|
Spindle tilting |
Degree |
± 90° Horizontal direction ± 45°vertical direction |
|
|
T-slot |
Slot Number* Width(mm) |
3*16 |
|
|
T-slot Pitch(mm) |
63 |
||
|
Motor |
Voltage(v) |
380/400V |
|
|
Frequency(HZ) |
50 |
||
|
Spindle Motor |
5HP/3.7 kw |
||
|
Max Working Piece Weight(kg) |
300 |
||
|
Saddle W*L(mm) |
280*510 |
||
|
Ram Travel(mm) |
510 |
||
|
Spindle Diameter |
85.7 |
||
|
Distance From spindle center to body |
Min(mm) |
20 |
|
|
Max(mm) |
660 |
||
|
Distance From spindle nose to working table |
Min(mm) |
12 |
|
|
Max(mm) |
520 |
||
|
Machine Dimension |
1670*1680*2110 |
||
|
L*W*H(mm) |
|||
|
Net Weight（kg） |
1200 |
||
