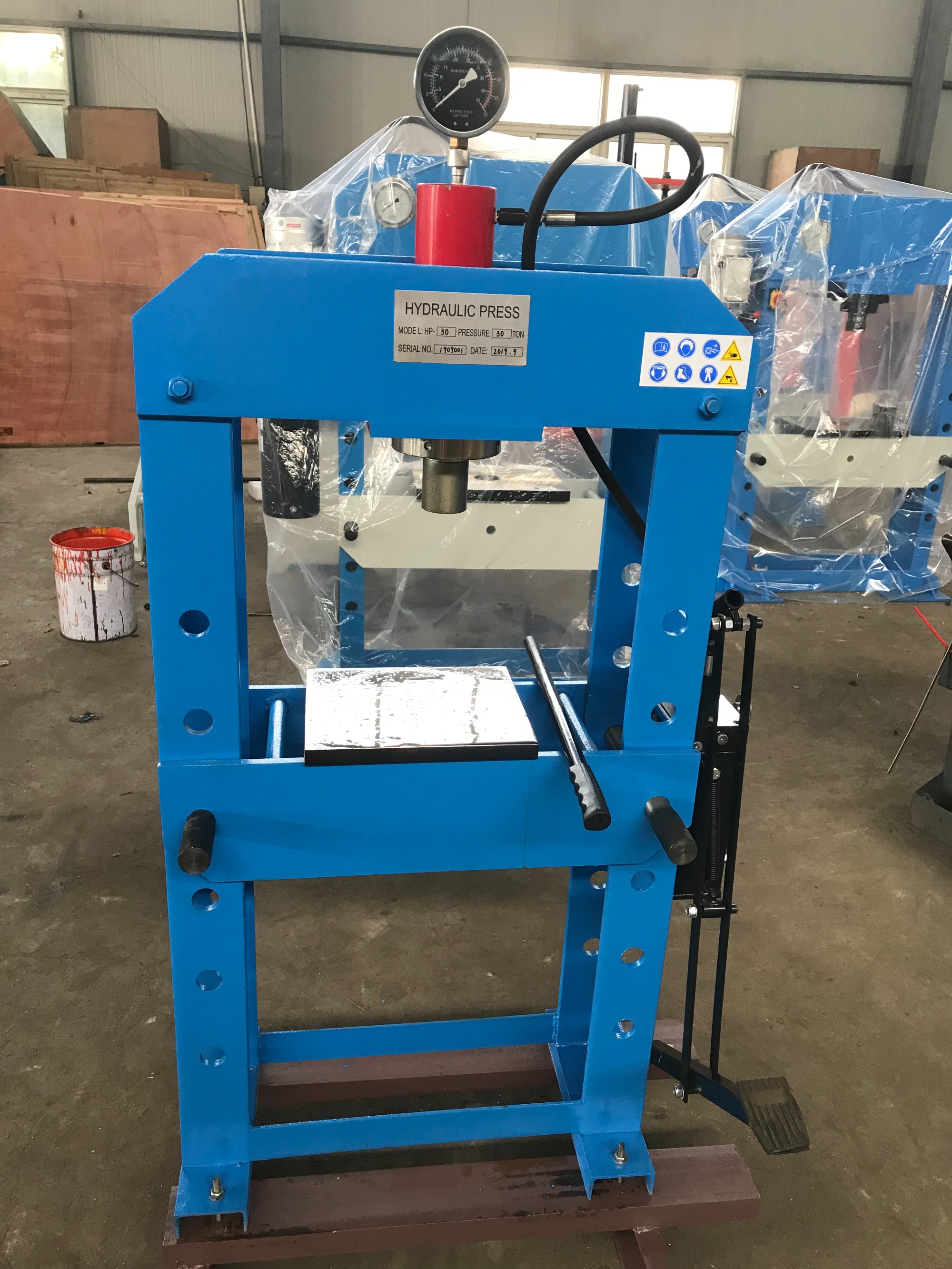

Mandrel press machine shop press

Item No.: 064

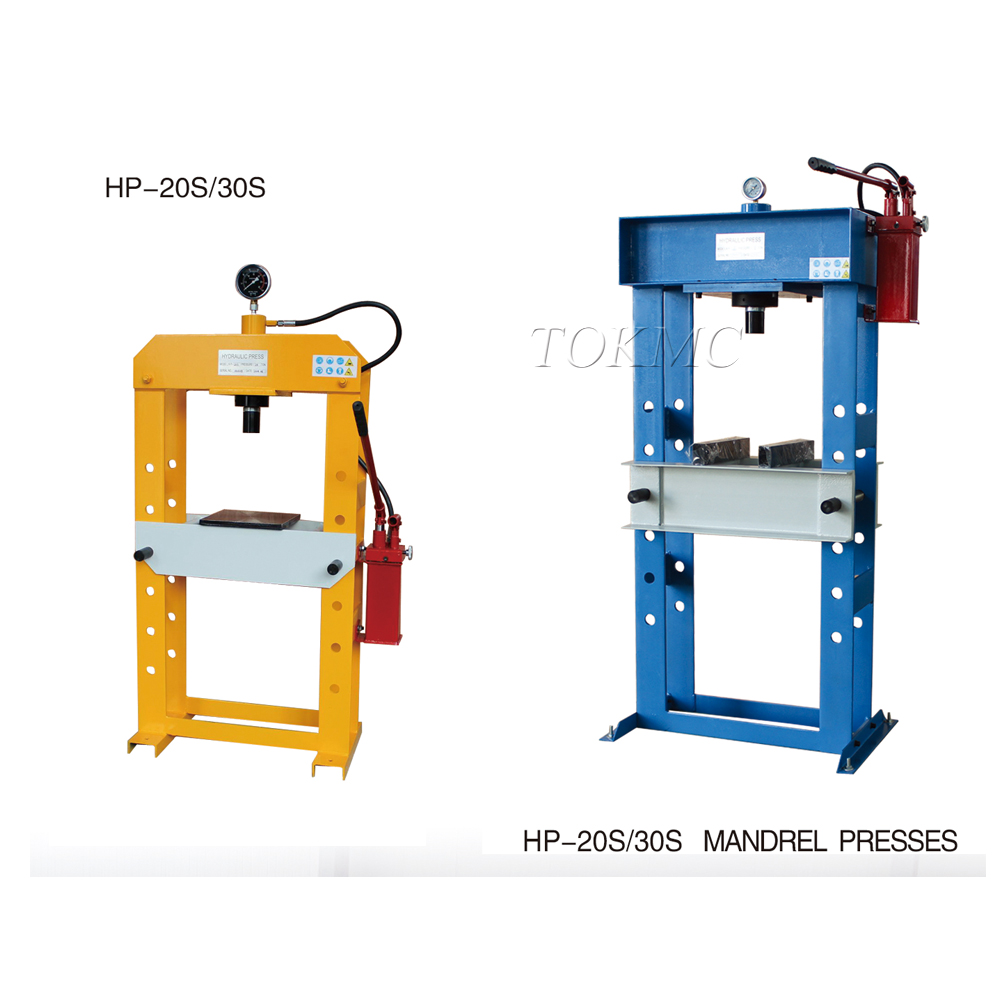

The HP-S series mandrel presses have the advantages of small volume,simple structure, and little cost.
The machine is suitable for operating in the open area and the other special situation.
Foot pedal is optional
Request Quote
Description
MODEL HP-10S HP-20S HP-30S HP-40S HP-50S
CAPACITY(KN) 100 200 300 400 500
PRESSURE(MPa) 50 50 50 60 60
TRAVEL (mm) 180+450 200+450 200+450 250+450 250+450
TABLE SIZE (mm) 200*300 200*300 300*400 360*500 360*680
DIMENSION(mm) 500*350*1300 500*350*1300 550*400*1500 1000*550*1500 1000*600*1750
WEITHT (KG) 220 260 320 380 460

Europe type , It can add foot pedal.
