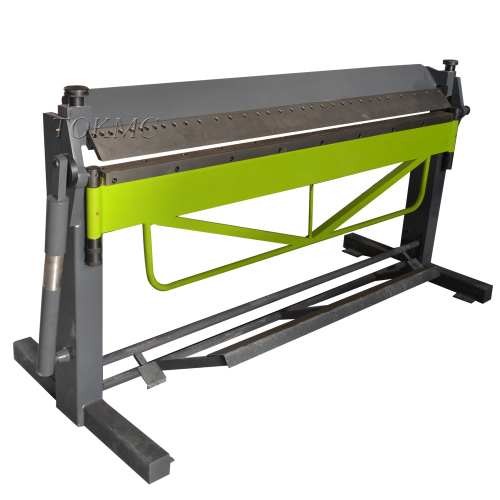

manual bending machine PBB2520/1.0

Item No.: 021
Strong welded steel body.
Heat treated blade.
Add to Inquiry
Description
- Fully welded structure and compact high quality engineering, ensure min. Maintance, simple and safe operation
- The function of air spring which can be installed inside the arm (optional)
-Foot control to easy operation and relax hands
Model PBB1520/1.5 PBB2020/1.2 PBB2520/1.0
Max. working length(mm) 1520 2020 2520
Max. sheet thickness(mm) 1.5 1.2 1.0
Max. clamping bar lift(mm) 47 47 47
Folding angle 0-135 0-135 0-135
Packing size(cm) 196X71X130 247X94X132 297X94X132
N.W/G.W(kg) 385/456 490/640 590/770
