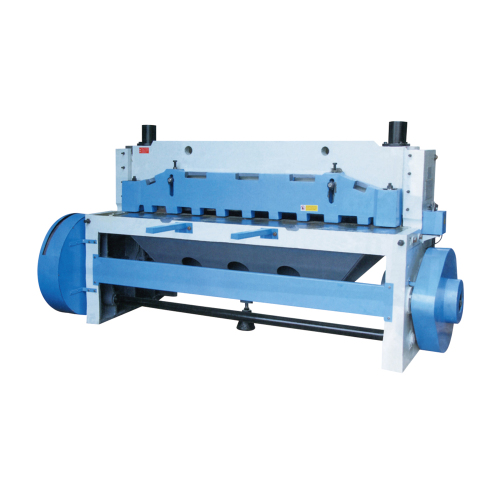

Mechanical shearing machine Q11-3x1300 Q11-6x2000

Item No.: 029
-long life high quality blade
-back gauge is available to good performance
-simple construction with good appearance
-Easy operaiton
-widely used for medium and thick steel
Shearing thickness : 3.0mm  4.0mm
width: 1300, 1500mm ,2000mm ,2500mm, 3200m
Add to Inquiry
Description
Model Q11-3X1300 Q11-3X1500 Q11-4X2000 Q11-4X2500 Q11-4x3200
Shearing thickness(mm) 3 3 4 4 4
Shearing width(mm) 1300 1500 2000 2500 3200
Shearing angle 3° 3° 2° 2° 1.3°
Num of stroke (per minute) 20 20 20 20 20
Motor power(kW) 3 3 5.5 5.5 7.5
Back gauge(mm) 350 350 500 500 600
Dimension(cm) 233x136x154 240x130x144 318x151x149 370x151x149 520x210x185
N.W/ G.W. (kg) 1300/1450 1500/1650 3000/3200 3600/3850 6800/7100
