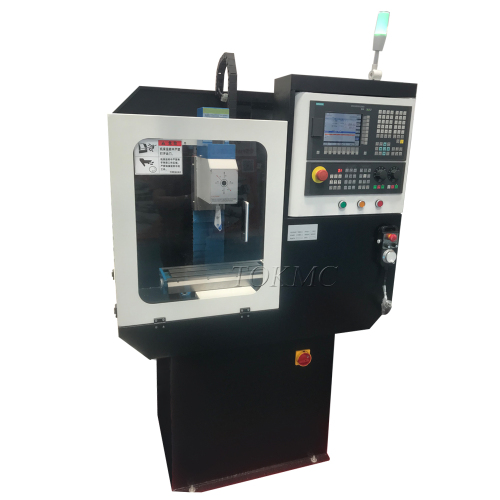

Model |
CK20 |
|
Table size |
180x500 mm |
|
Max.loading weight |
10kg |
|
T-slot width/Pitch |
12/62 mm |
|
Table travel X/Y/Z axes |
220/165/280 mm |
|
Distance from spindle nose to table surface |
348 mm |
|
Distance between spindle and vertical guideway |
185 mm |
|
Rapid feed speed |
16 m/min |
|
Feed speed |
0-16 m/min |
|
Spindle taper |
MT2 |
|
Spindle speed |
50-2500 /100-15000 RPM |
|
Spindle motor |
1.1 kw |
|
N.W /G.W |
298/418 kg |
|
Package size |
1220x910x1890 mm |
