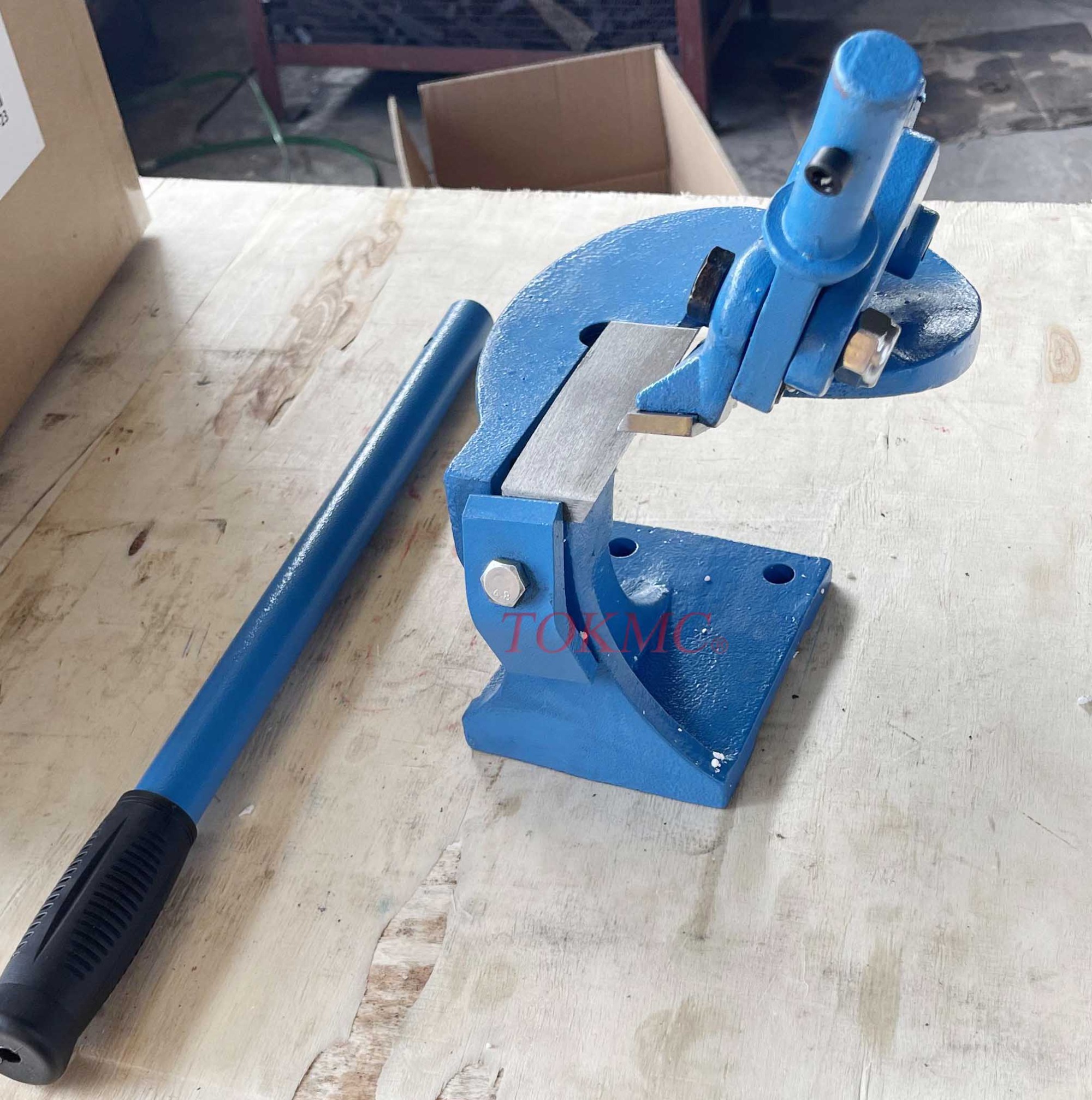

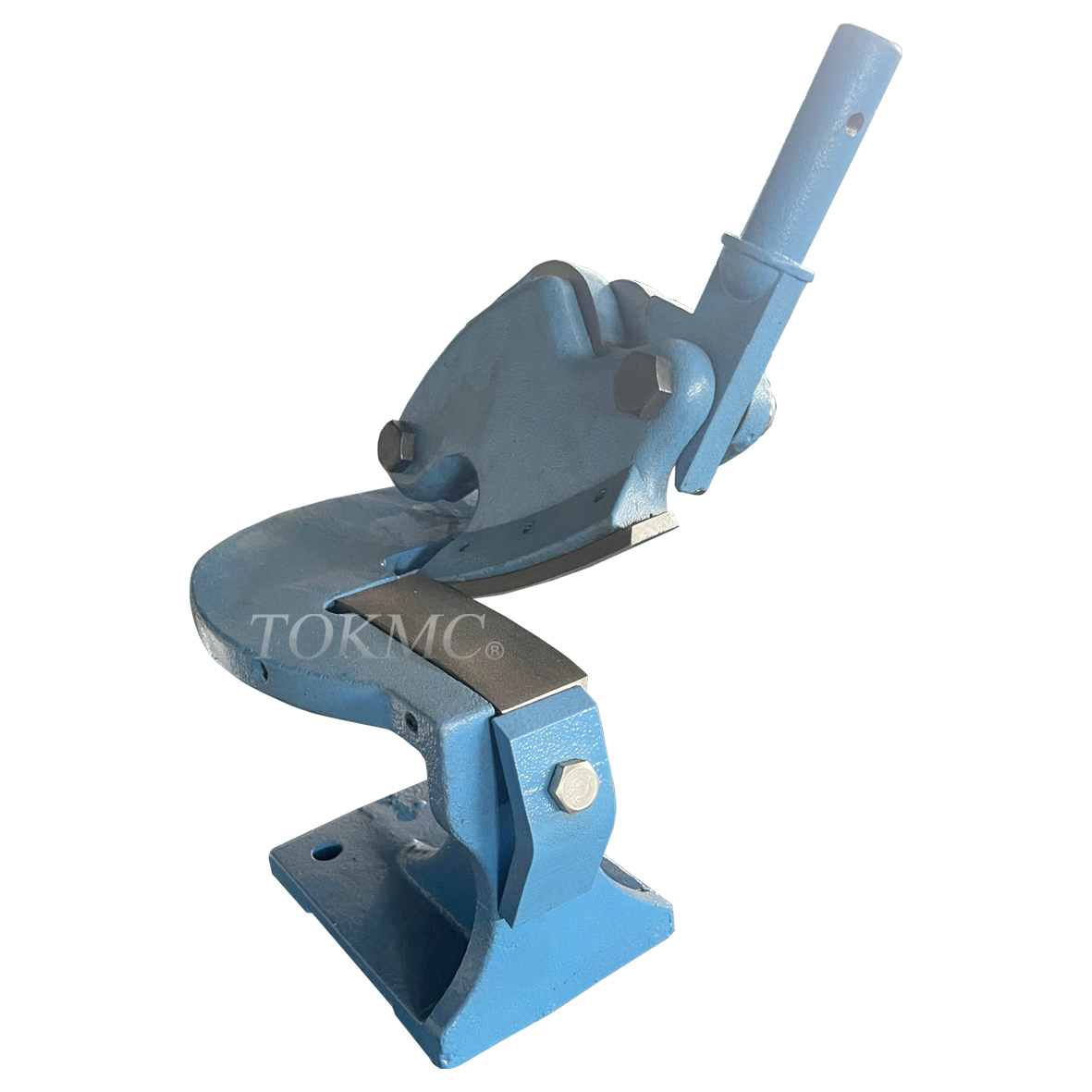

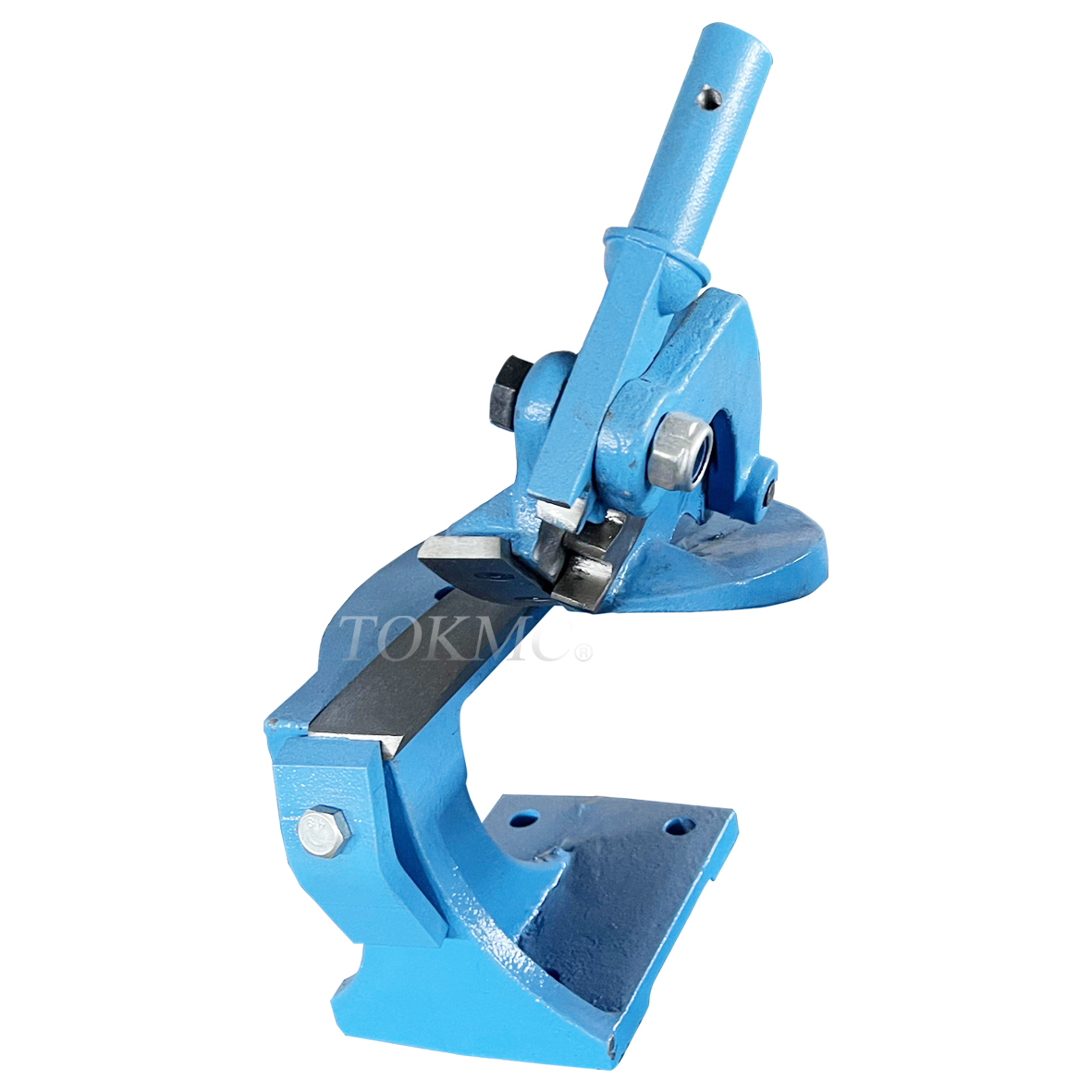

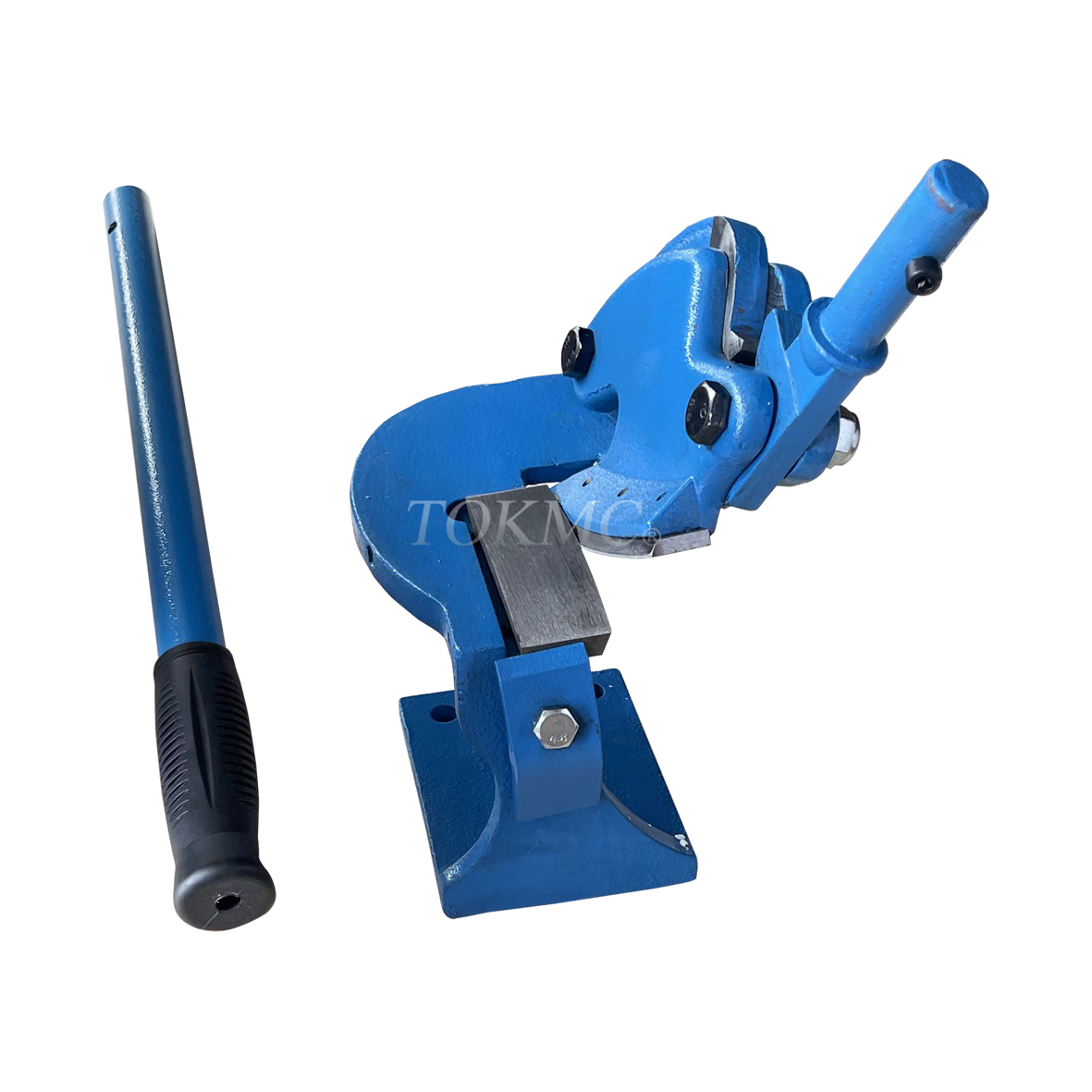

1.Throatless shear makes it easy to cut large panels and save production time.
2. The design of the cast iron base guides material away from the blade, so you can cut without trimming. 4.25” blade, T10 material Cuts 14 gauge mild steel without difficulty.
3. Curved blade design allows you to cut just about any shape you need. Cast iron frame helps ensure many years of trouble-free accuracy.
|
Model |
MMS-4 |
MMS-5 |
MMS-6 |
|
Handle |
442 mm |
590 mm |
720 mm |
|
Width |
70 mm |
220 mm |
230 mm |
|
Lower blade length |
105 mm |
108 mm |
160 mm |
|
Length of cut |
70 mm |
80 mm |
80 mm |
|
Capacity of steel |
2.0 mm |
3.0 mm |
4.0 mm |
|
Capacity of stainless |
1.5 mm |
2.0 mm |
3.0 mm |
|
Packing size |
51x33x22 cm |
38x26x69 cm |
38x26x82 cm |
|
N.W./G.W. |
8/9 kg |
15/17 kg |
26/28 kg |
