1.The machine is reasonable in structure, good rigidity, beautiful appearance,convenient operation.
2. Using precision plastic guide surface and precision scraping, grinding imported hydraulicransmission, drive by synchronous.
3. The main mechanical valve is a special valve arinder. is divided into two parts.he mechanical commutation control, throttle control.
Throttle control part and unloading function, can realize the station start and stop.
4.Grinding can be all kinds of plane and complex shaped surface. suitable for motorwvithout
|
parameter |
unit |
MY618 |
|
Worktable size |
Mm |
460x180 |
|
Worktable travel |
Mm |
500x190 |
|
Cutting area on worktable |
Mm |
500x190 |
|
T-slot |
|
1 x12mm |
|
Distance from spindle center to table surface |
Mm |
450 |
|
Wheel size |
Mm |
200x20x31.75 |
|
Spindle speeds |
R/min |
335 |
|
Longitudinal feed speed (left and right) |
M/min |
3-23 |
|
Horizontal feed (front and back) 1. Continuous variable speed (stepless) |
Mm/min |
150 |
|
2. Intermittent (stepless) |
Mm/each |
0-5 |
|
3. The hand wheel rates |
Mm |
2.5 |
|
4. The hand wheel each grid |
Mm |
0.02 |
|
Vertical feed (up and down) wheel feed 1. The hand wheel rates |
Mm |
1.25 |
|
2. The hand wheel each grid |
Mm |
0.01 |
|
Spindle motor |
Kw |
1.5 |
|
Coolant motor |
Watt |
40 |
|
Hydraulic motor |
Kw |
1.5 |
|
Working pressure |
MPA |
3 |
|
Oil tank capacity |
L |
80 |
|
Maximum flow |
L /min |
18 |
|
Flat precision |
Mm |
300/0.005 |
|
Surface roughness |
|
Ra0.32 |
|
Net weight /Gross weight |
Kg |
810/850 |
|

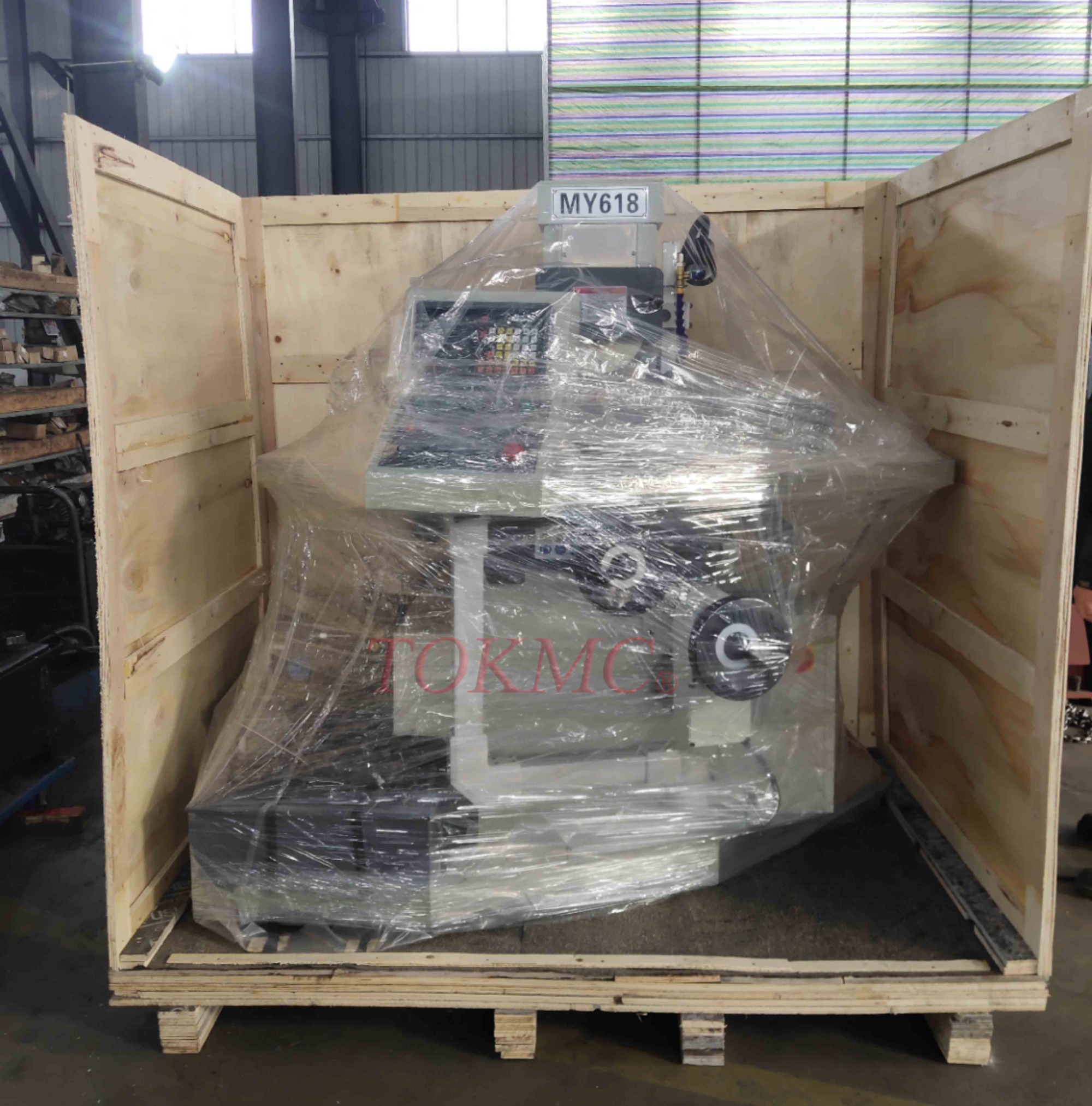

Package size LxWxH |
Cm |
170x125x190 |
