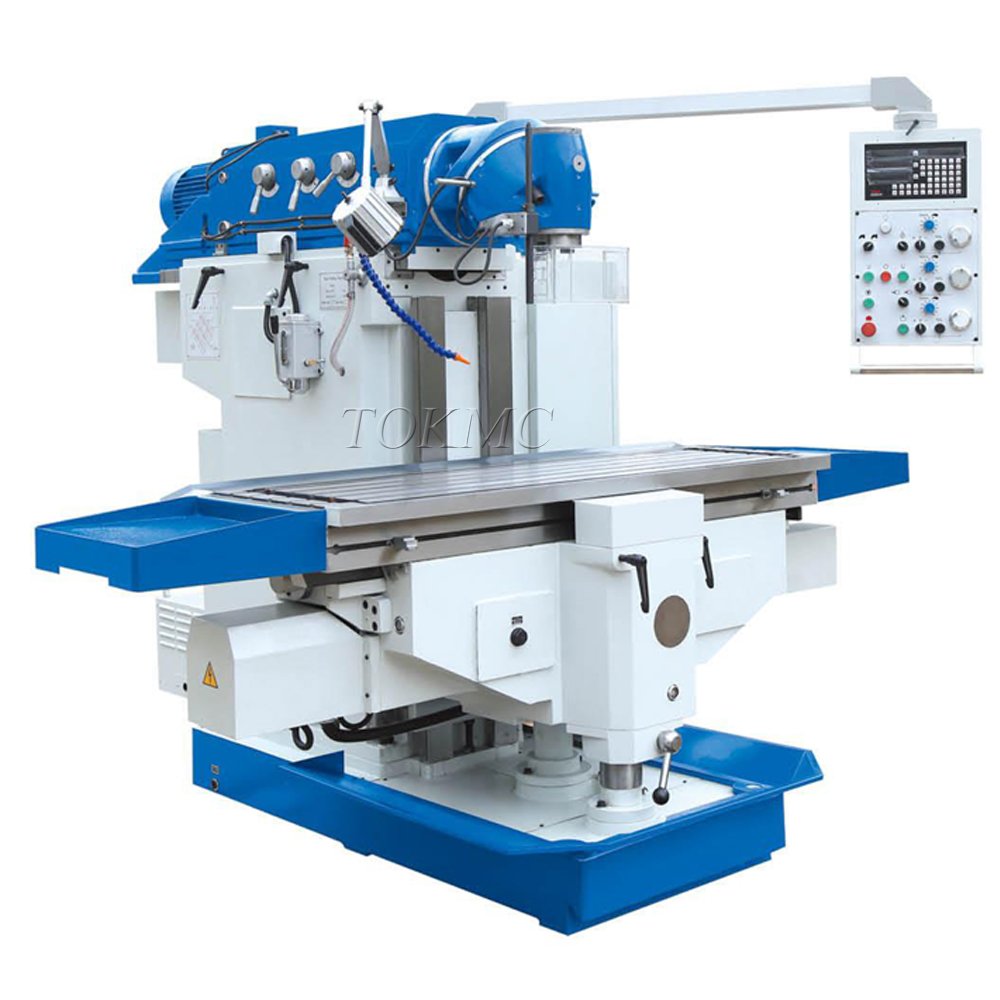

Ram milling machine X5750

Item No.: 105
It can mill any angle surface.
central lubrication for XYZ axes.
Add to Inquiry
Description
Specifications Unit X5750
Table size mm 500*1600
T-slots(NO./width/pitch) mm 5*18*80
Table travel (X/Y/Z) mm 1200*700*500
Swivel angle of milling head - 360°
Spindle taper - ISO50
Spindle speed range r.p.m (27) 30-2050
Table feed(X/Y/Z) mm/min 10-1000/10-1000/5-500
Table rapid speed   2200/2200/1100
Distance between spindle nose and table surface mm 50-550
Distance from spindle center line to column mm 47-745
Main motor power Kw 7.5
Feed motor Kw AC servo motor X/Y:15NM; Z: 18NM
Max load Kg 1800
Overall size mm 2625*2460*2080
weight kg 4200
