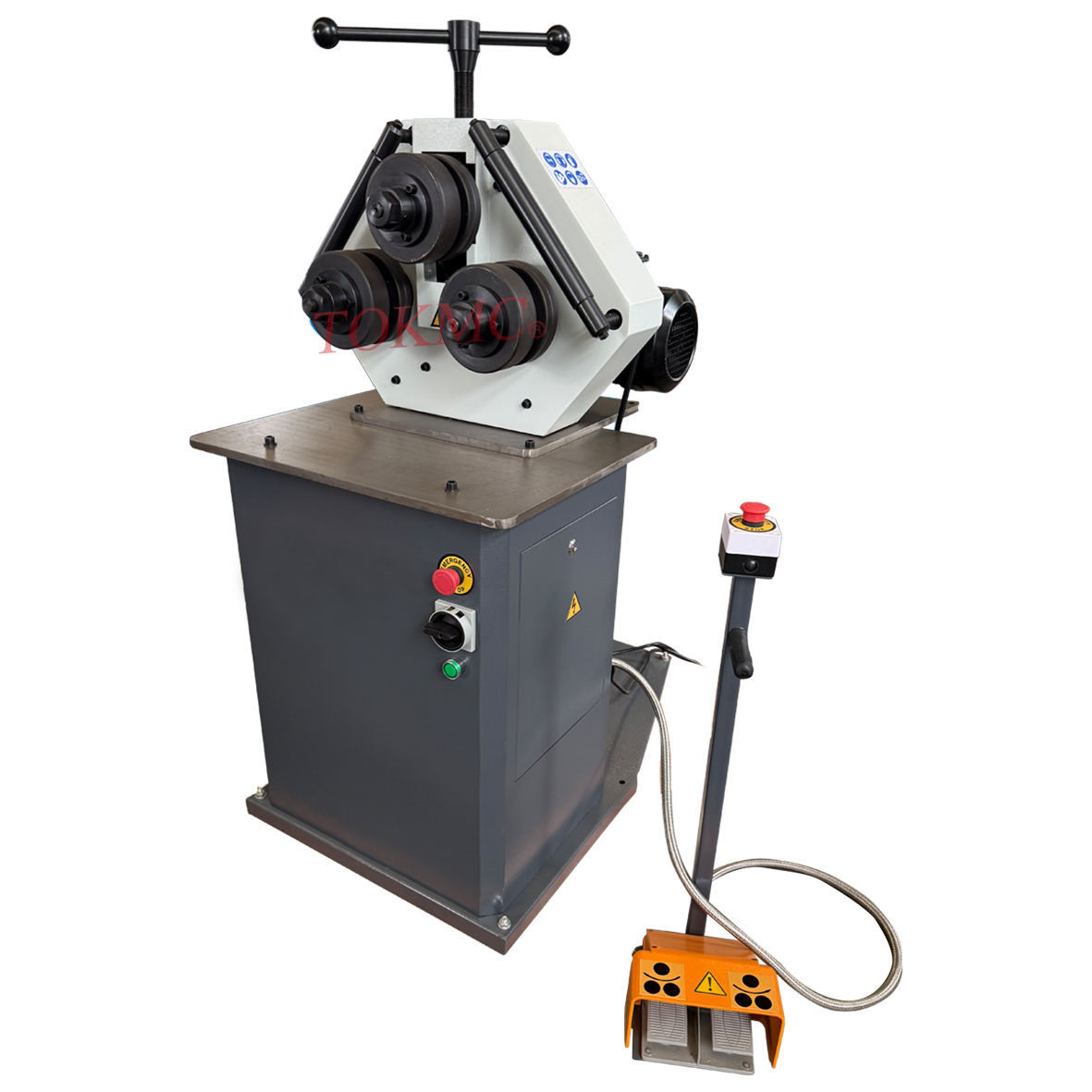

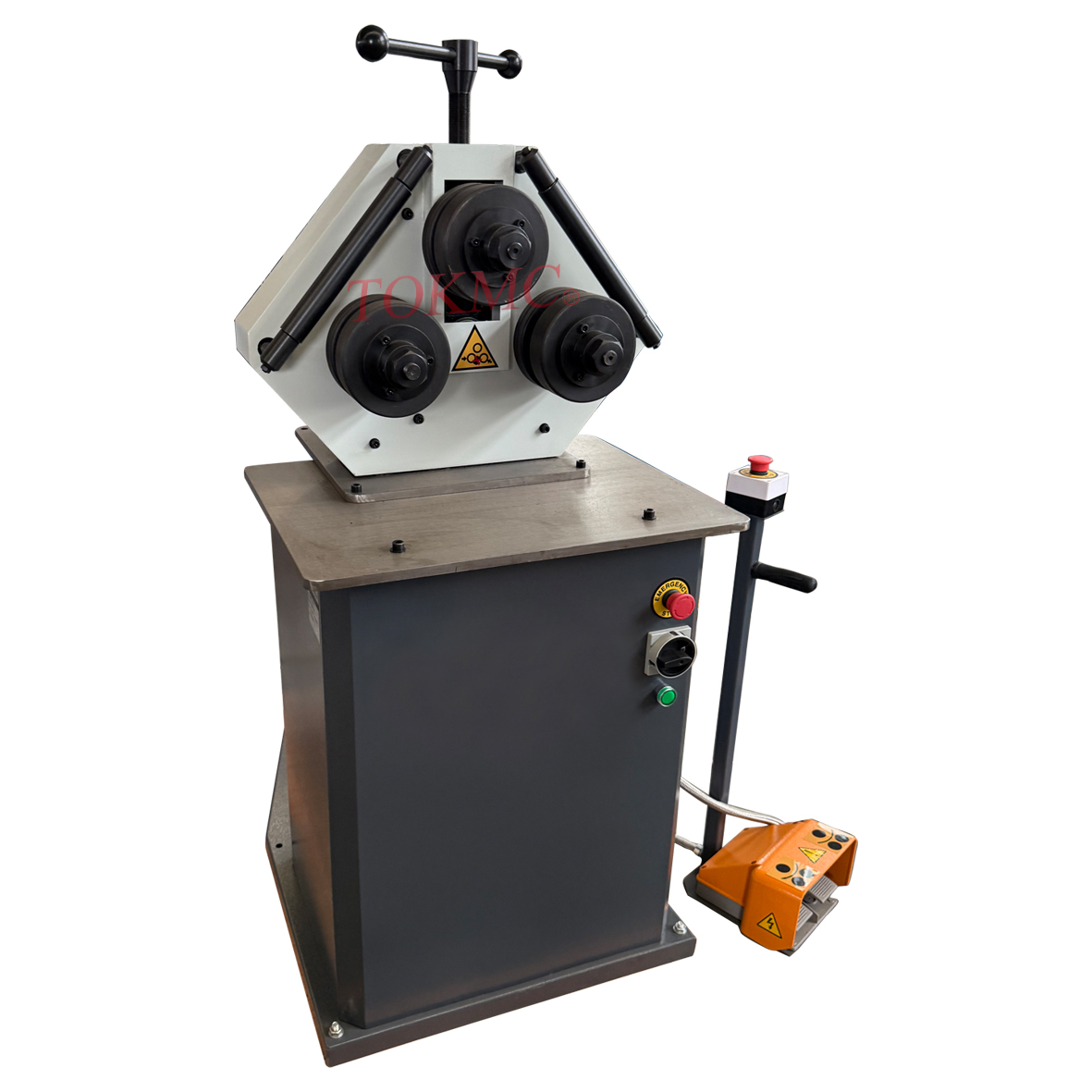

TOKMC RBM30HV is a high-quality, heavy-duty electric Profile Bending machine / Roll Bender designed to withstand demanding professional use. The machine makes metal bending easy and fast, and it is suitable for forming pipes, square tubes, flat bars, and beams.
|
Model |
RBM30HV |
|
|
Diameter of roller |
30 mm |
|
|
Spindle speed |
9 r/min |
|
|
Power |
0.75kw/1 hp |
|
|
Packing size |
120×75×121 cm |
|
|
N.W/G.W |
244/282 kg |
|
|
Capacity |
Size (mm) |
Min. Diameter (mm) |
|
|
40x40x3 |
1000 |
|
|
50x15 |
350 |
|
|
50x30x3 |
1200 |
|
Round bar |
15 / 20 /25 / 30 |
600 |
|
|
40x40x2 40x40x3 40x40x4 40x40x5 |
400 |
|
|
40x40x2 40x40x3 40x40x4 40x40x5 |
400 |
|
|
50x50x2 50x50x3 50x50x4 50x50x5 |
400 |
|
|
50x25x2 50x25x3 50x25x4 50x25x5 |
300 |
|
|
50x25x2 50x25x3 50x25x4 50x25x5 |
400 |
|
|
50x25x2 50x25x3 50x25x4 50x25x5 |
300 |
|
Pipe |
35x2 40x2 45x2 50x2 55x2 60x2 |
1000 |
