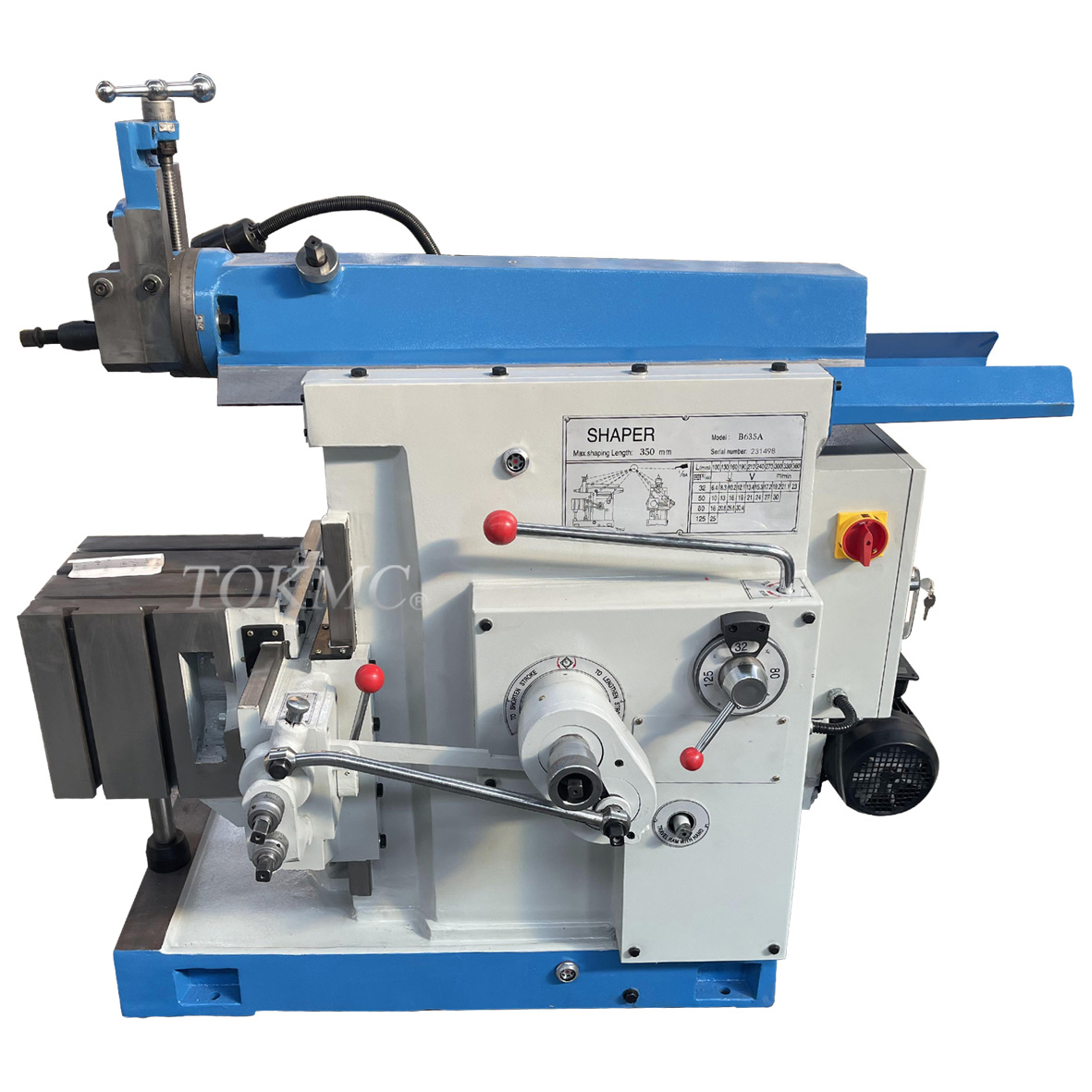

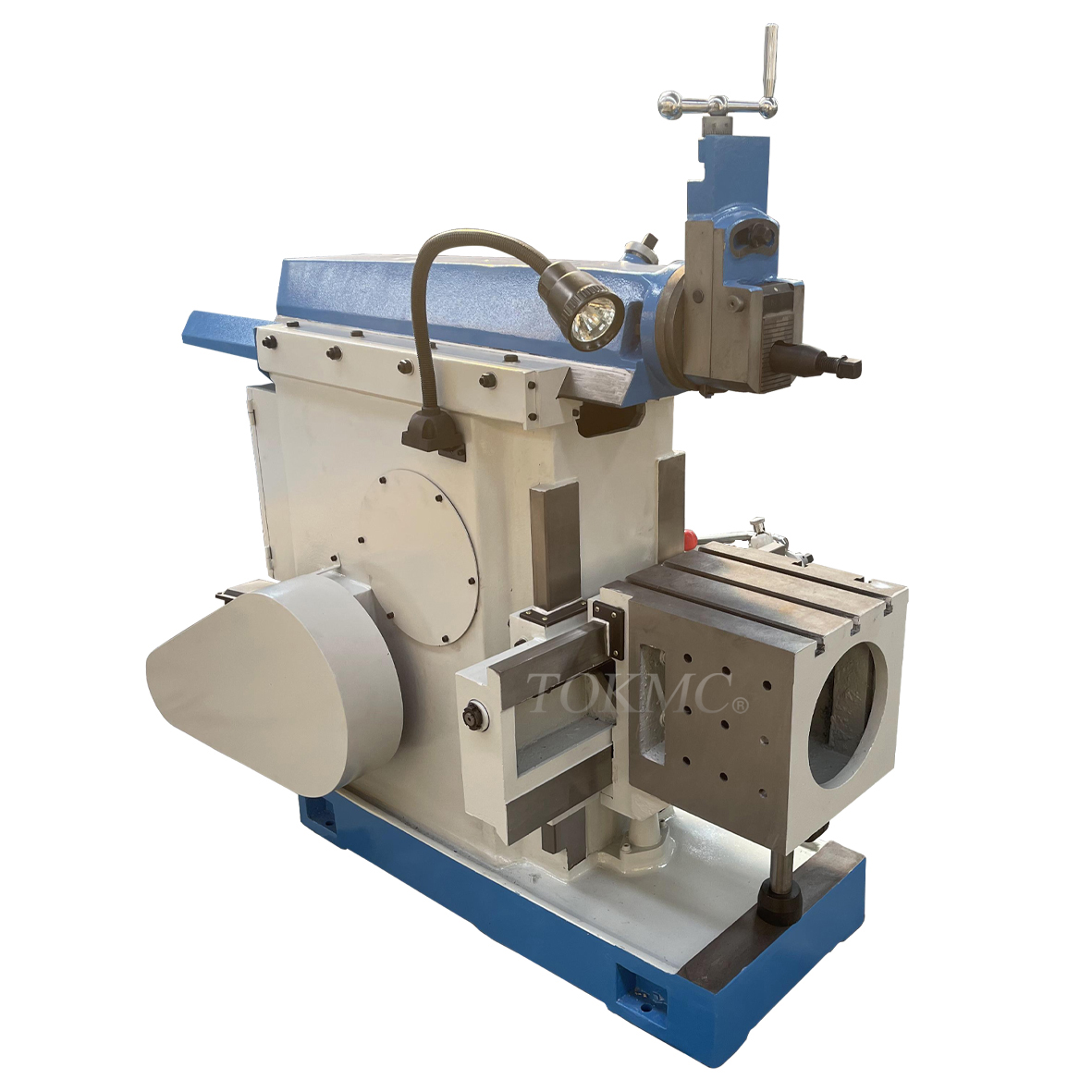

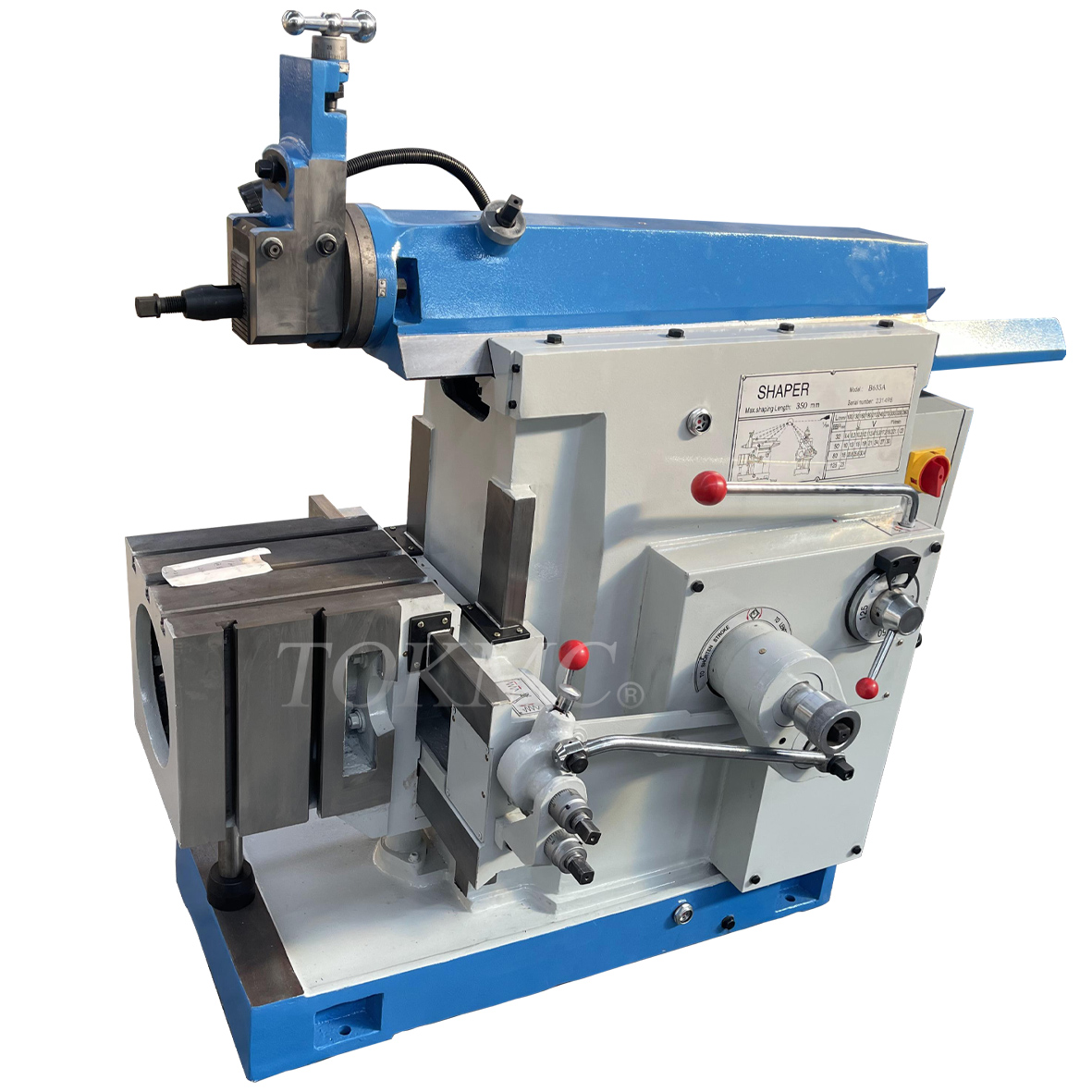

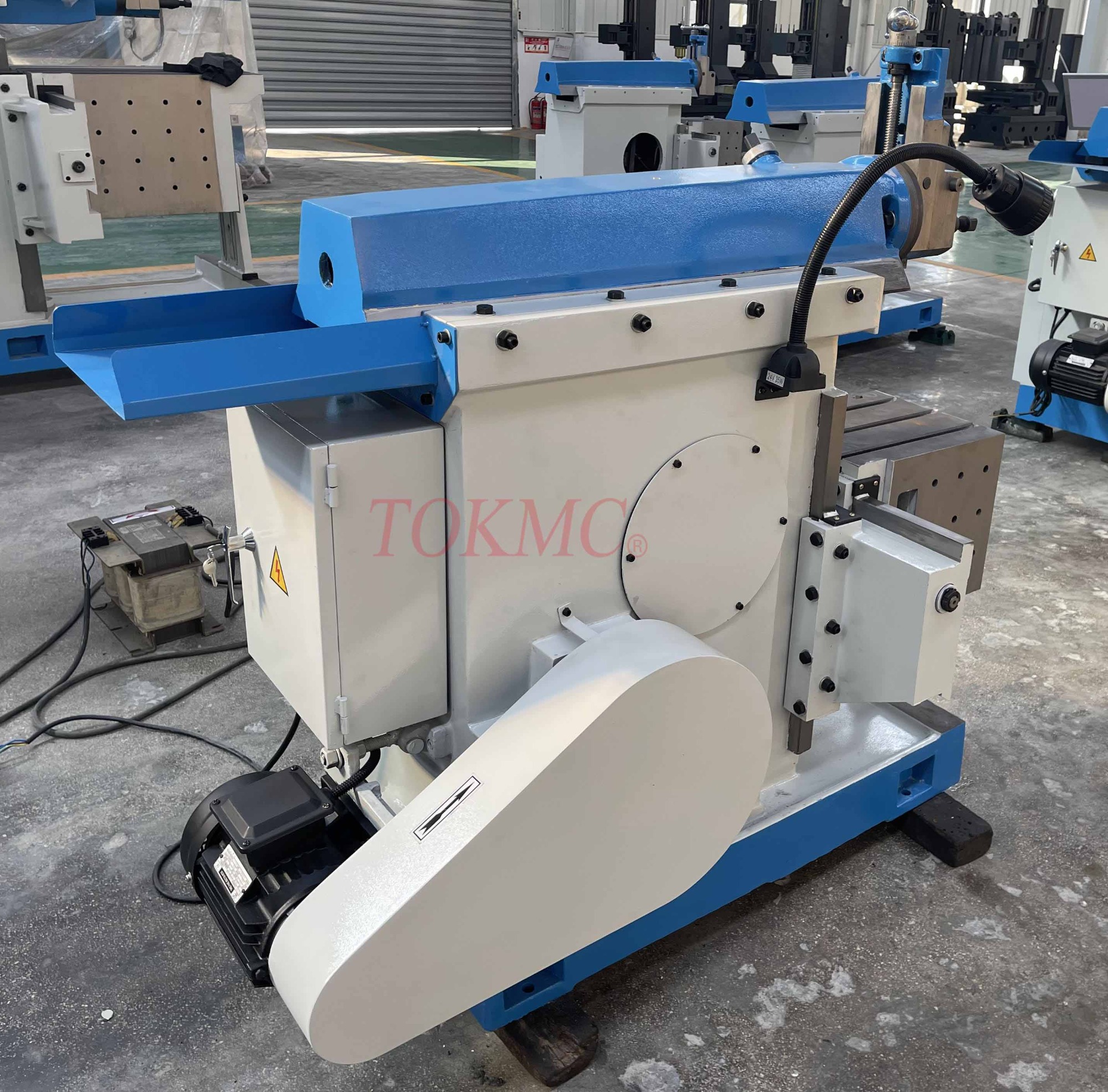

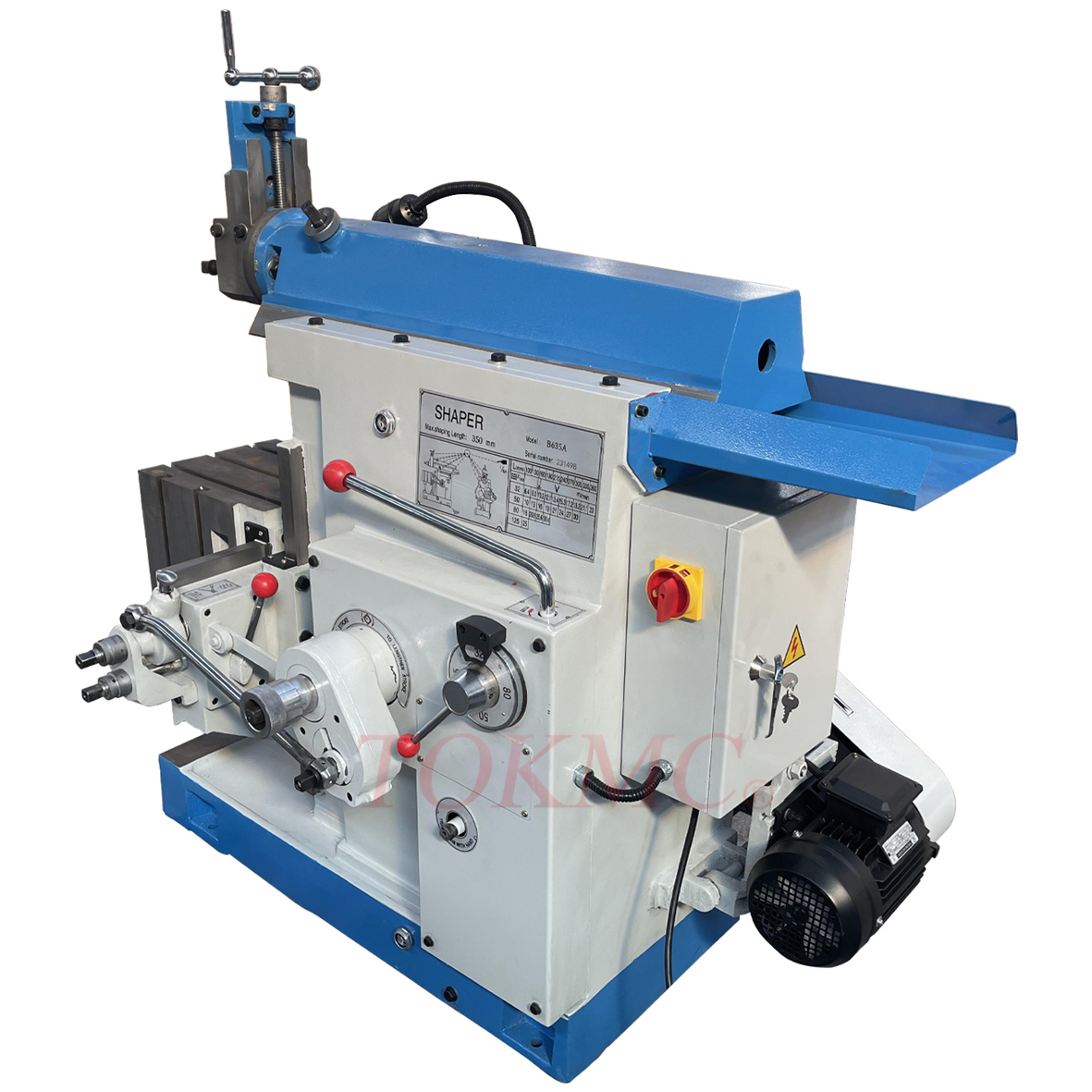

A shaper machine is a reciprocating machine tool used to produce flat, contoured, or profiled surfaces, particularly in metalworking, using a single-point cutting tool. It removes material during a forward stroke, with a quick-return mechanism for efficiency. Common types include crank, geared, and hydraulic, used for creating slots, keyways, and gears.
|
Model |
B635A |
|
|
Maximum cutting length(mm) |
350mm |
|
|
Maximum distance from ram bottom to table surface(mm) |
330mm |
|
|
Maximum table horizontal travel(mm) |
400mm |
|
|
Maximum table vertical travel(mm) |
270mm |
|
|
Leading surface of the planer to bed out of the maximum distance |
550mm |
|
|
The maximum displacement of the ram |
170mm |
|
|
Maximum turning angle of the worktable(no vice) |
+/-90 degree |
|
|
Maximum turning angle of the worktable(vice) |
+/-55 degree |
|
|
The turret Maximum vertical travel |
110mm |
|
|
Number of ram strokes per minute |
32, 50, 80, 125, times min |
|
|
The ram back and forth a table feed amount |
Wheeled round a tooth (vertical) |
0.18mm |
|
Wheeled round a tooth (horizontal) |
0.21mm |
|
|
Wheeled round 4 tooth (vertical) |
0.73mm |
|
|
Wheeled round 4 tooth (horizontal) |
0.84mm |
|
|
Electric |
1.5kw 1400r/min |
|
|
Carton size |
1530*930*1370mm |
|
|
Net weight |
1000kg/1200kg |
|
