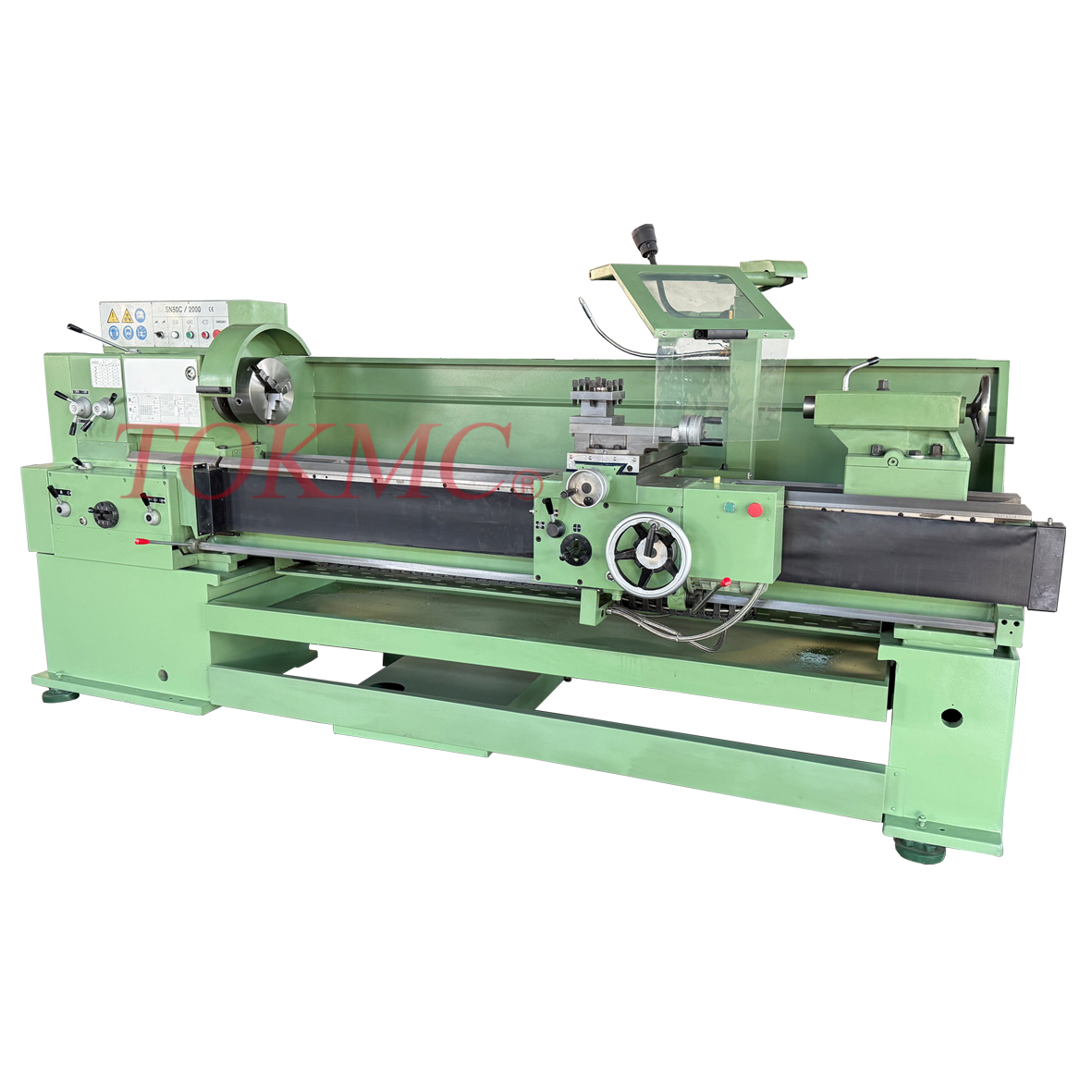

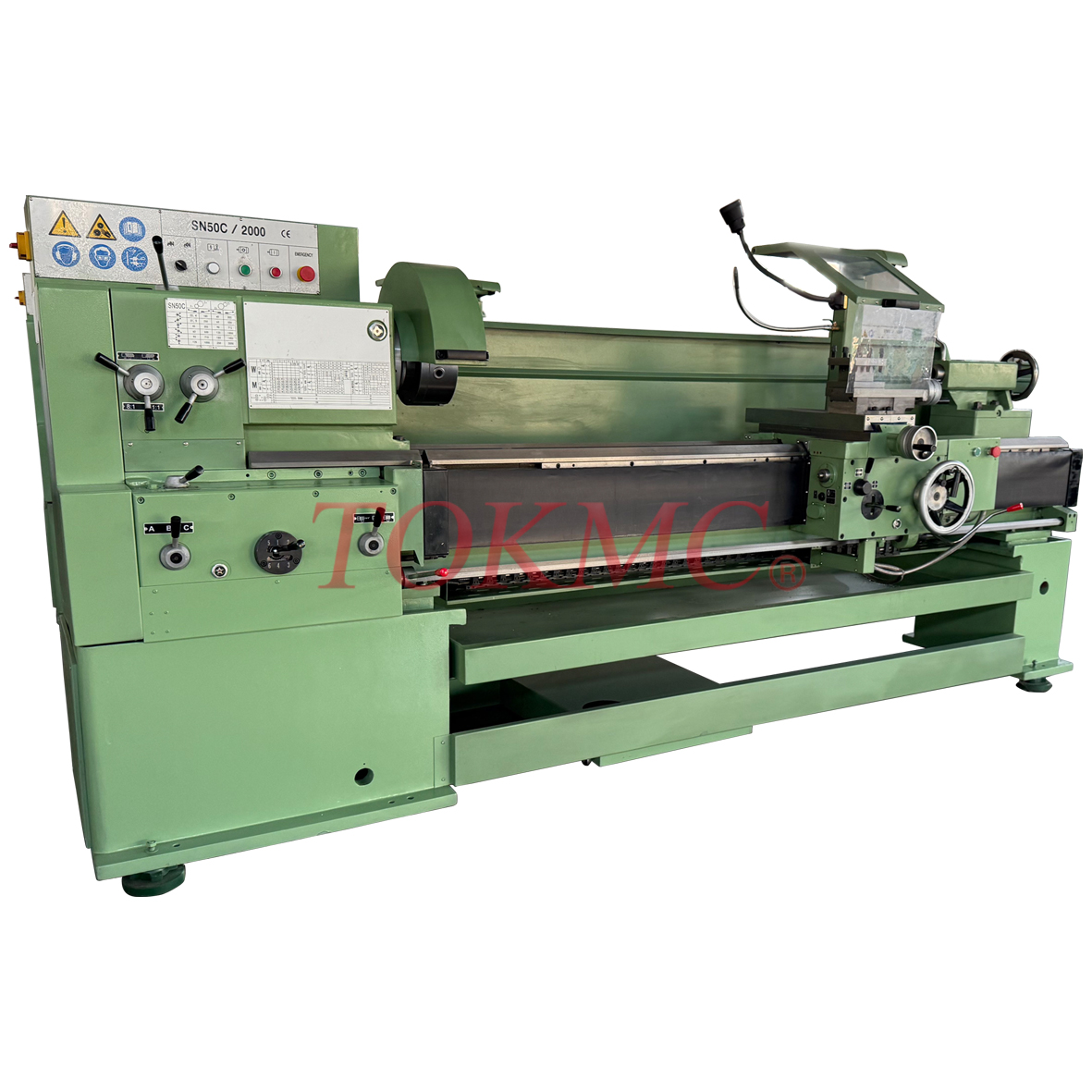

Model |
Unit |
SN50C |
|
Max.Swing over bed |
Mm |
500 |
|
Max.Swing over gap |
mm |
700 |
|
Max.swing over cross slide |
mm |
270 |
|
Max. length of work piece |
mm |
1000/1500/2000mm |
|
Effective gap length |
Mm |
357 |
|
Bed width |
mm |
340 |
|
Spindle bore |
|
Ф52mm |
|
Taper of Spindle bore |
|
M.T.6 |
|

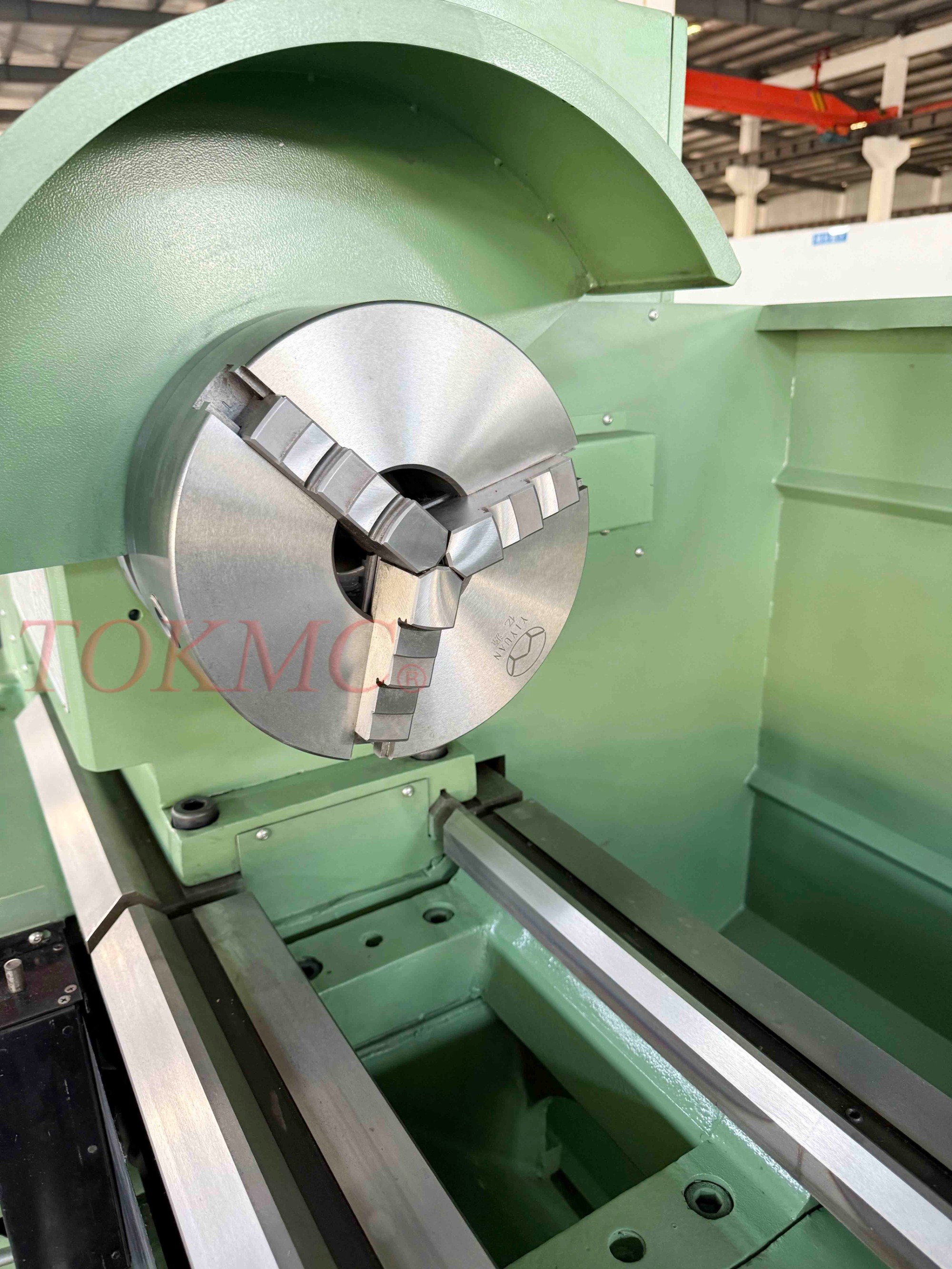

Spindle nose |
|
C6 |
|
Spindle speed (gear steps) |
rpm |
22-2000 |
|

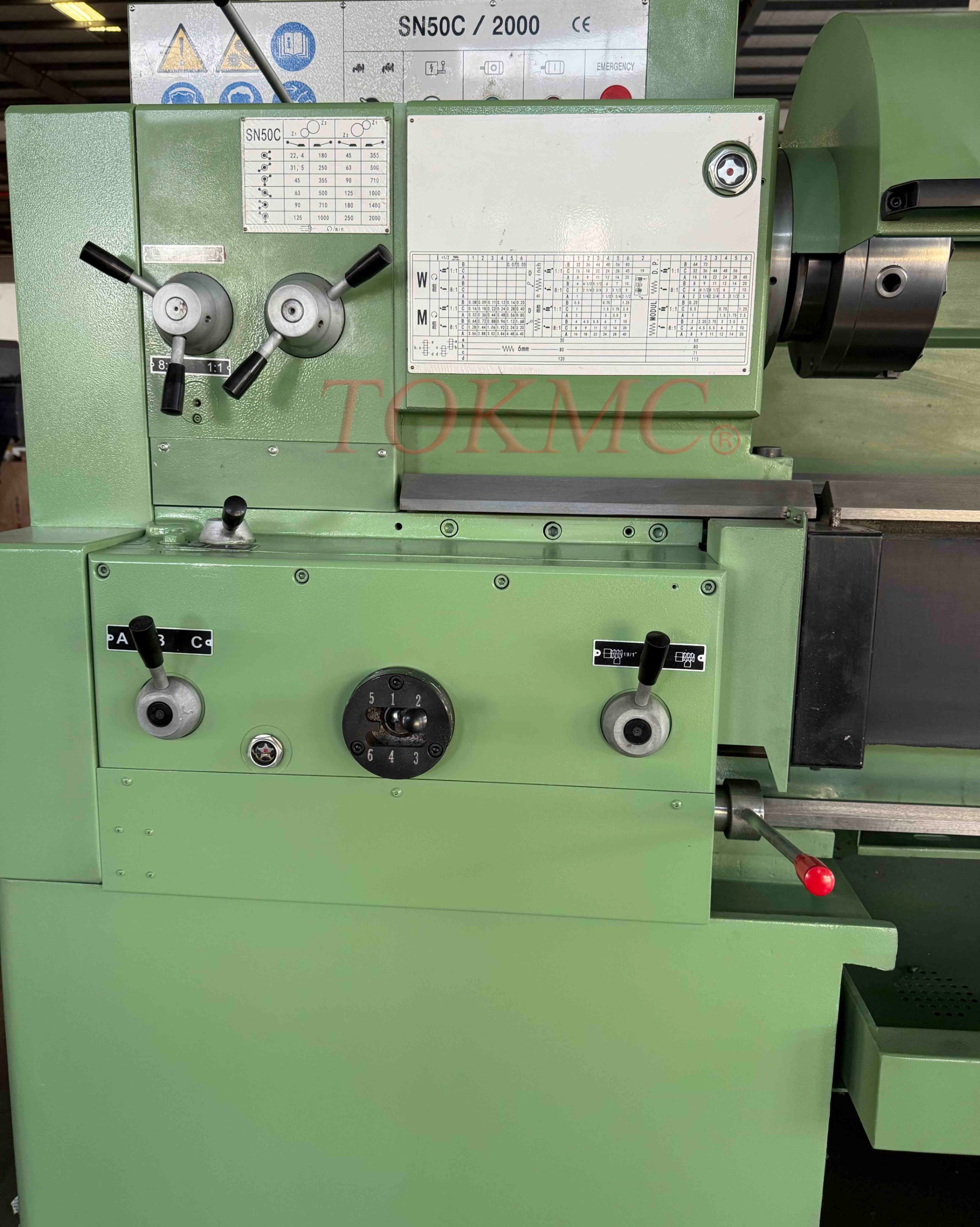

Imperial pitches Threads |
TPI |
1-80 / 38kinds |
|
Metric pitches Threads |
mm |
0.5-40 / 29kinds |
|
Diametral pitches threads |
D.P. |
2-72 / 31kinds |
|
Module pitches threads |
M.P. |
0.25- 20 / 26Kinds |
|
Cross slide travel |
mm |
300 |
|
Tool slide working travel |
mm |
140 |
|
Longitudinal feeds |
Mm/rev |
0.05 ~ 6.4 |
|
Cross feeds |
Mm/rev |
0.25~3.2 |
|
Max.section of tools size |
mm |
32x32 |
|

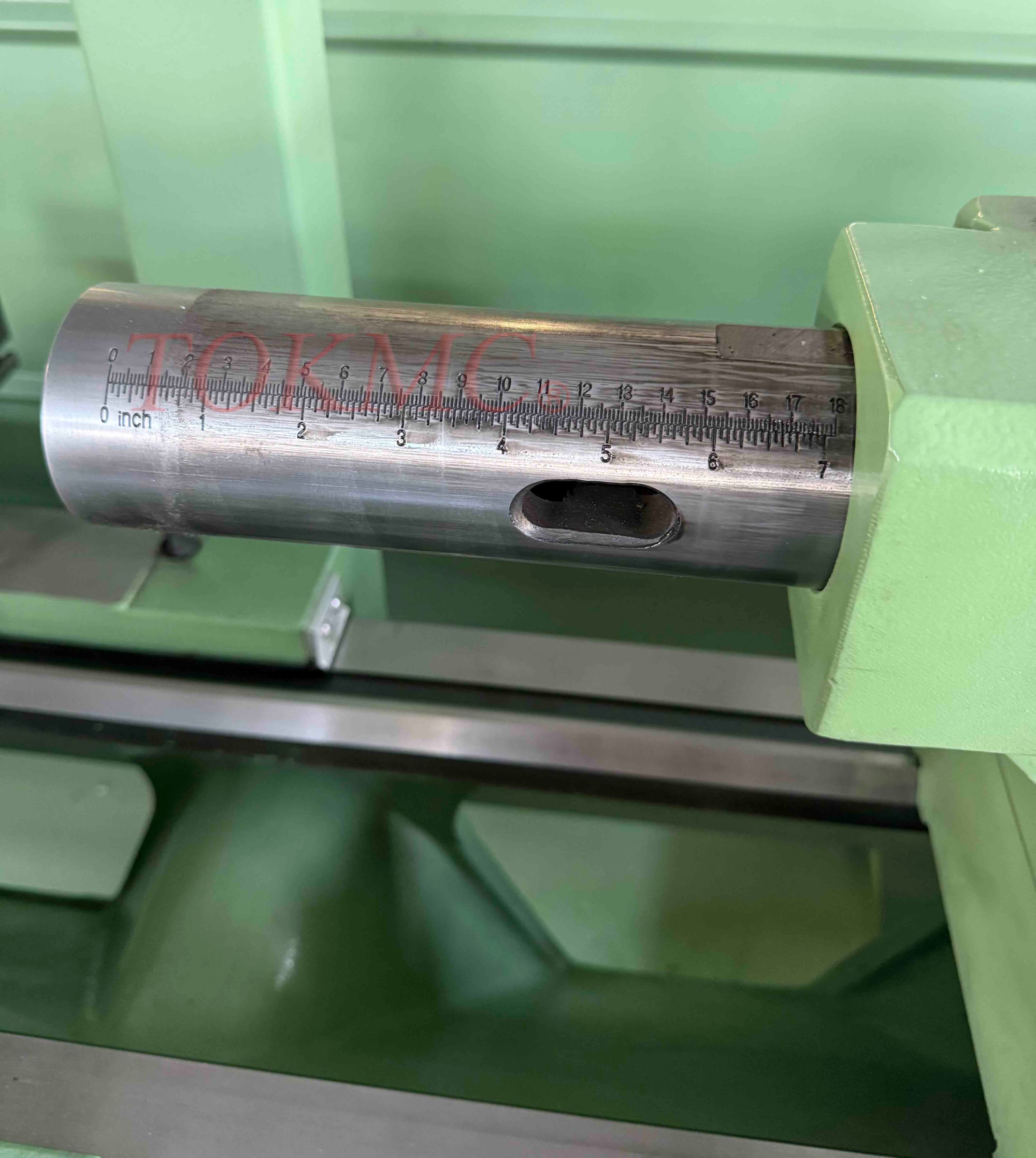

Quill diameter of tail stock |
mm |
70 |
|
Quill travel of tail stock |
mm |
180 |
|
Taper of tailstock spindle center hole |
|
M.T.5 |
|
Main motor power |
Kw |
5.5 |
|
Coolant pump power |
w |
120 |
|
Package size |
mm |
2700/3200/3720 length 1120x1905 |
|
Gross weight |
Kg |
1935/2035/2250 |
