Specification |
Unit |

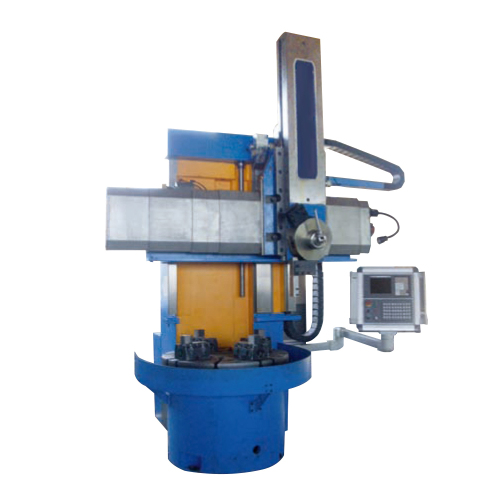

C5123D |
|
Max.turning diameter on vertical head |
mm |
2300 |
|
Worktable diameter |
Mm |
2000 |
|
Max.height of workpiece |
Mm |
1600 |
|
Max. weight of workpiece |
Tons |
8 |
|
Speed range of table |
rpm |
3.2-80 |
|
Speed-step of table |
steps |
16 |
|
Tool holder feed level |
|
Variable |
|
Tool holder feed range |
mm/min |
0.1~1000 |
|
Travel of railhead (Horizontal) |
mm |
1210 |
|
Travel of railhead (Vertical) |
mm |
800 |
|
Tool holder section size length x width |
mm |
30x40 |
|
Horizontal column travel |
mm |
1190 |
|
Main motor power |
Kw |
30 |
|
Max.torque |
N.M |
32000 |
|
Machine weight |
Tons |
19.2 |
|
Machine size |
mm |
3210×2850×3910 |
