Specification |
Unit |

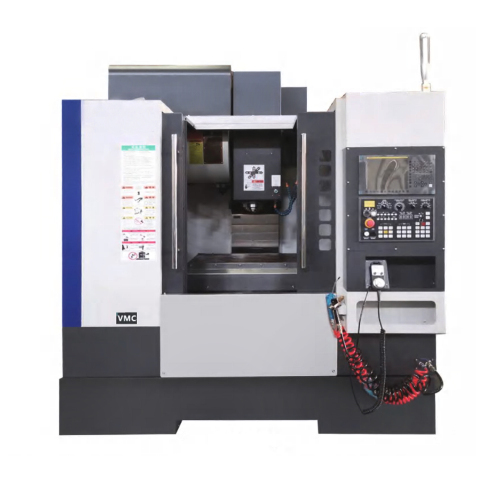

VMC850 |
|
Table size |
mm |
1000x550 |
|
Max.loading weight |
kg |
500 |
|
Slot-Number/Width/distance |
mm |
5-18x90 |
|
X,Y,Z axis travel |
mm |
800/500/500 |
|
Max.distance from spindle nose to table surface |
mm |
150-650 |
|
Spindle center to Z axis guideway surface |
mm |
570 |
|
Spindle motor power |
kw |
7.5/11 |
|
Max.spindle speed |
rpm |
10000 |
|
Spindle taper |
|
BT40 |
|
3 axis rapid speed |
M/min |
48/48/36 |
|
Max.cutting speed |
M/min |
10 |
|
Pull stud |
|
MAS403 BT40-45° |
|
ATC capacity |
|
BT40-24T |
|
Max.diameter of tool and length |
mm |
Φ85x350 |
|
Positioning accuracy |
mm |
±0.004 |
|
Repeatability accuracy |
mm |
±0.003 |
|
CNC system |
|
Fanuc ,siemens/mitsubishi |
|
Machine size |
mm |
2700x2500x2650 |
|
Machine weight |
kg |
5300 |
Standard configuration
-Back row chip full cover. -water tank, chip box.
-backward chip washing device. -Operation panel and handwheel.
-ATC. -belt driven spindle. -shrinker cooling sytem at the spindle side.
-air cooling system at spindle side. -heat exchange device of electric cabinet.
-work area cleaning water gun,air gun. -work light and alarm light.
Special configuration
-chip conveyor. - Spindle central outlet.
-Fourth axis or Five Axis. -spindle oil cooling function.
-straight connection spindle. -oil-water seperation device.
-tool measure device. -door open switch.
-High speed high precision functions. -column elevation
