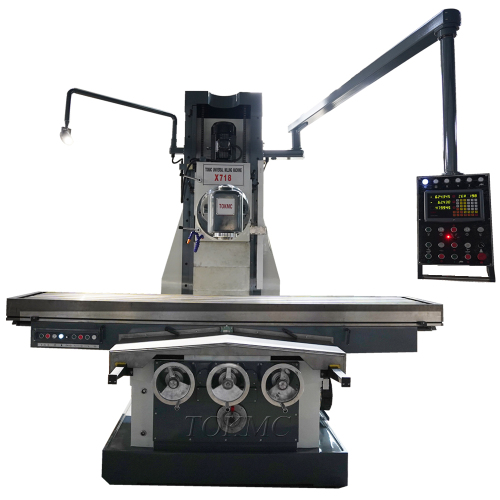

X718 Hercules Bed type universal swivel head milling machine

Item No.: 001
2800x500 mm table size
2800x800mm optional.
Ballscrew transmission.  more durable.
Add to Inquiry
Feature :
- heavy duty cutting,It can bear 5 tons on worktable
-X,Y ,Z axis travel 2500mmx1020mmx1090mm
-universal swivel head 360 degree, processing Multi-angle, multi-faceted workpiece
-Good stability, easy to operate
-Pendant Control Box,Includes 3 Axis Digital ReadOut
specifications     units  X718
table size mm 2800×500
table travel(X,Y) mm 2500×1020
Distance from spindle to table surface height mm 385—1540
Distance spindle to table surface   lower mm 0—1160
Distance spindle to table surface vertical head mm 0—1090
number/width/distance of T-slot mm 4—20—100
max.load of table kg 5000
Feed speed mm/min 22.4—560
Rapid feed speed mm/min 1650
Z axis feeding mm/min 11.2—280
Z speech axis feeding mm/min 825
Spindle taper   7:24 ISO50
Spindle speed range rpm 36—1340
Spindle speed step steps 12
Distance from spindle axis to column guideway mm 900
Spindle motor power kw 7.5
Overall dimension mm 3020×3000×3000
Machine weight kg           9000
