Machine Model |
Units |

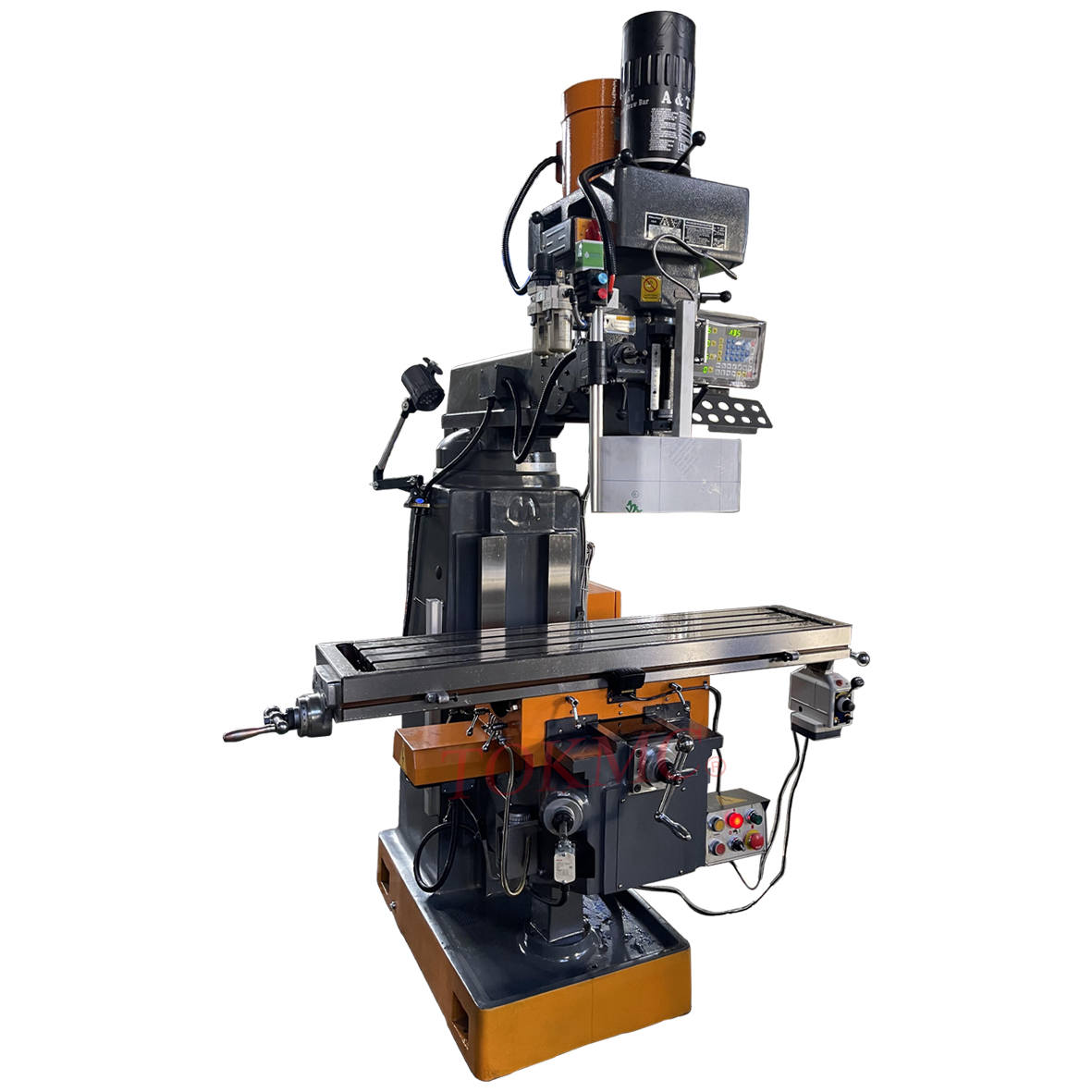

X6330 |
|
|
Dimensions |
mm |
305*1370 |
|
|
Inch |
12"*54" |
||
|
Working table |
X-axis |
mm |
785 |
|
Y-axis |
mm |
405 |
|
|
Z-axis |
mm |
500 |
|
|
ground way |
Y-axis |
|
Rectangular |
|
Z-axis |
|
Rectangular |
|
|
Spindle |
Spindle Taper |
|
NT40 |
|
Spindle Travel |
mm |
127 |
|
|
Spindle Speed |
steps |
16 |
|
|
Spindle Feed |
mm |
0.076/0.003" 0.038/0.0015" 0.203/0.008" |
|
|
Low Range |
r/min |
66、110、175、270、550、930、1460、2270 |
|
|
High Range |
r/min |
132、220、350、540、1100、1860、2920、4540 |
|
|
T-slot |
Slot Number X Width |
mm |
3X16 |
|
T-slot Pitch |
mm |
65 |
|
|
Voltage |
V |
220V/380V/ 415V |
|
|
Motor |
Frequency |
HZ |
50/60 |
|
Head Motor |
HP |
5 |
|
|
Coolant Motor |
HP |
1/8 |
|
|
Knee Motor |
HP |
1/2 |
|
|
Max.Working Piece Weight |
kg |
350 |
|
|
Saddle W*L |
mm |
335*650 |
|
|
Ram Travel |
mm |
620 |
|
|
Spindle Diameter |
mm |
105 |
|
|
From spindle center to body |
mm |
195-675 |
|
|
From spindle nose to working table |
mm |
90-590 |
|
|
Machine Dimension L*W*H |
mm |
1770*1780*2250 |
|
|
Net Weight |
KG |
1500 |
|
