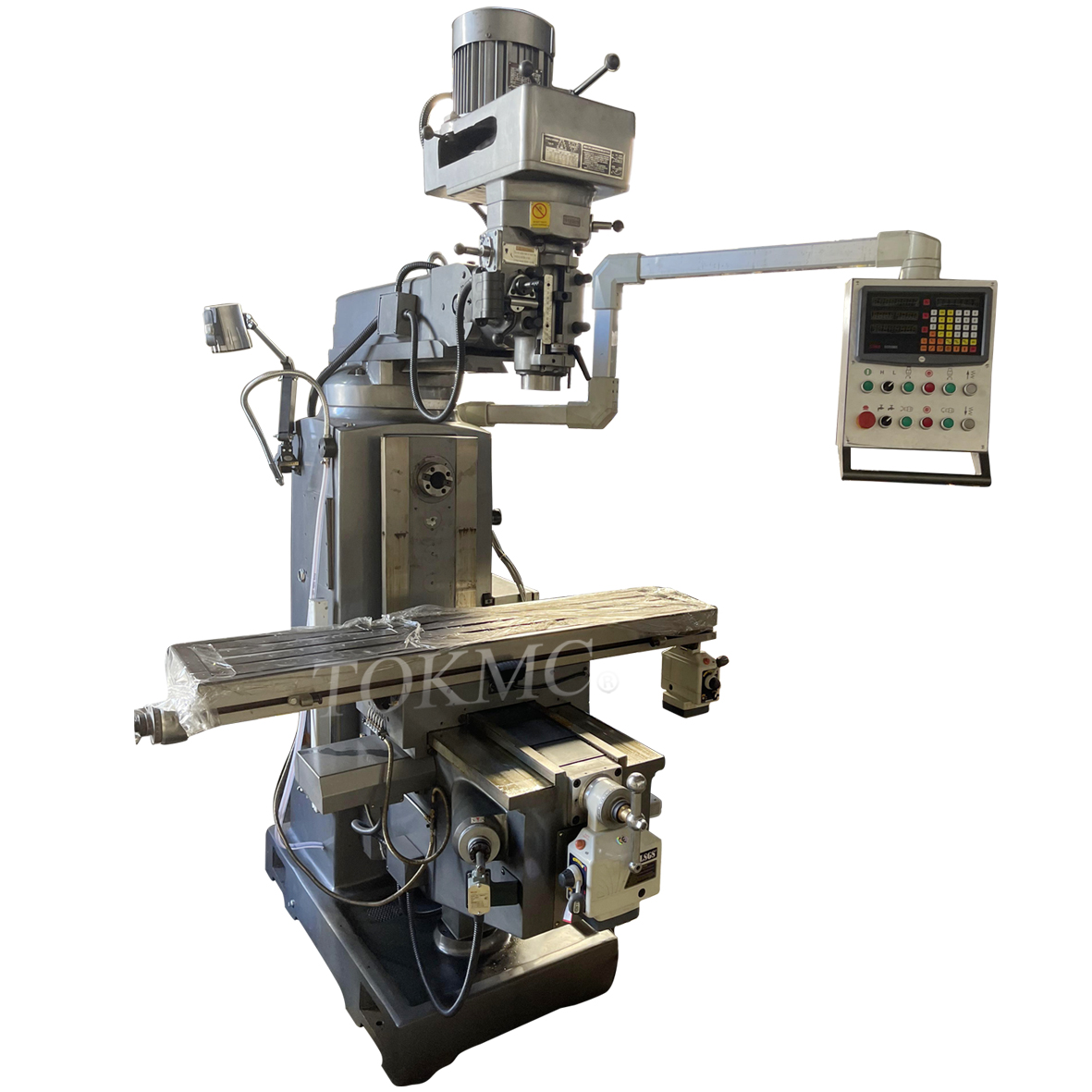

Machine Model |
HW6 |
||
|
Worktable Dimensions |
mm |
1370x305 |
|
|
Inch |
54”x12” |
||
|
Working table |
X-axis |
mm |
800 |
|
Y-axis |
mm |
420 |
|
|
Z-axis |
mm |
420 |
|
|
Spindle |
Spindle Taper |
|
NT40 vertical |
|
NT40 (or ISO40) horizontal |
|||
|
Vertical Spindle Travel |
mm |
127 |
|
|
Spindle Speed |
steps |
75-4550 vertical |
|
|
45-1300 horizontal |
|||
|
Vertical Spindle Feed |
mm |
0.076/0.003" 0.038/0.0015" 0.203/0.008" |
|
|
Vertical spindle Low Range |
r/min |
66、110、175、270、550、930、1460、2270 |
|
|
Vertical spindle High Range |
r/min |
132、220、350、540、1100、1860、2920、4540 |
|
|
T-slot |
Slot Number X Width |
mm |
3x16 |
|
T-slot Pitch |
mm |
80 |
|
|
Motor |
Voltage |
V |
220/380/415 |
|
Frequency |
HZ |
50/60 |
|
|
Spindle Head Motor |
Kw |
3.7 kw vertical and horizontal |
|
|
Coolant Motor |
HP |
1/8HP |
|
|
From spindle center to body |
mm |
100-650mm |
|
|
From spindle nose to working table |
mm |
150-480mm |
|
|
Machine Dimension L*W*H |
mm |
1930x1750x2300mm |
|
|
Net Weight |
KG |
1600 |
|
