4 axis vertical slotting machine 160mm

Item No.: 005
Electrical System Suitable To CE
Brake for Motor
Spindle Chip Cover with Safety Switch
Rotary Table 320 mm & Chuck 250 mm & Index
Max.cutting width 10MM
Request Quote

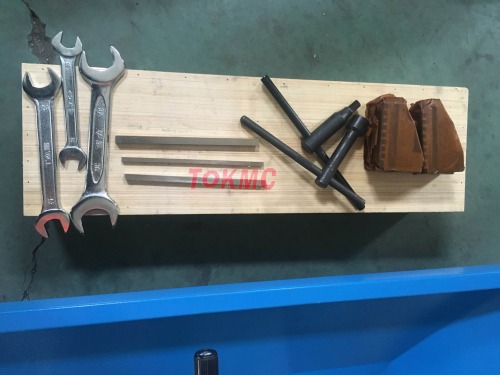

Description
Specification Unit VSL-160mm
Max. Slotting length mm 160
No. Of ram strokes per minute   23,32,44,48,67
Swing angle of ram deg 45°
Table diameter mm 350mm
Vertical adjustment of ram Mm 160
Distanc between tool holding surface and column front mm 485
Distance between table surface and lower end of ram slide mm 320
Max.longitudinal travel of table mm 360
Max. Cross travle of travel mm 320
Max.rotary angle of table deg 360
Tool shank size (WXH) mm 25x40
Max.cutting force N 4500
Max.table load-carrying capacity KGS 300
Width of table center T-slot Mm 14
Power of main drive motor Rpm 700/1410
Net weight KGS 1000
Overall dimensions mm 1270x1100x1700
