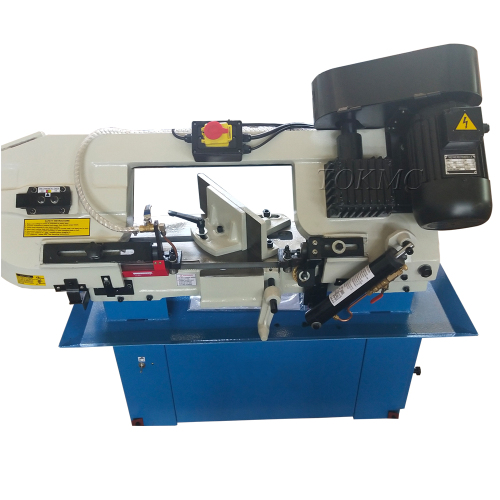

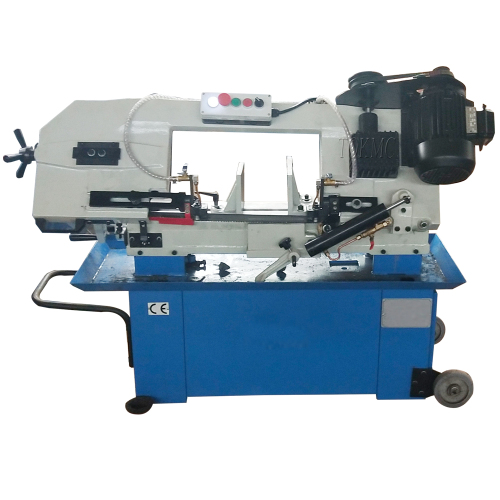

9" bandsaw BS916B

Item No.: 089
1. The maximum processing capability of BAND SAW BS-916 series is 9" (229 mm)
2. The quick clamps can be swiveled from 0° to 45°
3. Infinitely adjustable blade speed through PIV transmission
4. Featured in 4 different speed
5. Vertical force controlle
Add to Inquiry
Description
6. Strong structure for big capacity cutting
7. Electric coolant system for extending the life of blade and improve the precision of work piece
8. High-capacity due to controlled by motor
9. Has the advantage of quickly clamping
10. The falling speed of saw bow is controlled by hydraulic cylinder
11. With a sizing device, machine will stop automatically after sawing materials
12. With power brake protection device, machine will power off automatically when the rear protective cover is opened

Standard accessories:
Blade
Clamping vice
Electric coolant system
Model BS-916B
  Max Circular      @90 o 229mm (9" )
  Rectangular @ 90 o 127x405mm (5" x16" )
Capacity Circular      @ 45 o 229mm (9" )
  Rectangular @ 45 o 150x190mm(6" x7.5" )
Blade speed                      60HZ 114, 196, 288, 377FPM
50HZ 95, 164, 240, 312 FPM
Blade size 27x0.9x3090 mm

Motor 1.5KW 2HP
Drive V belt
Packing Size 172x83x114 cm
NW/GW 280/340KGS
