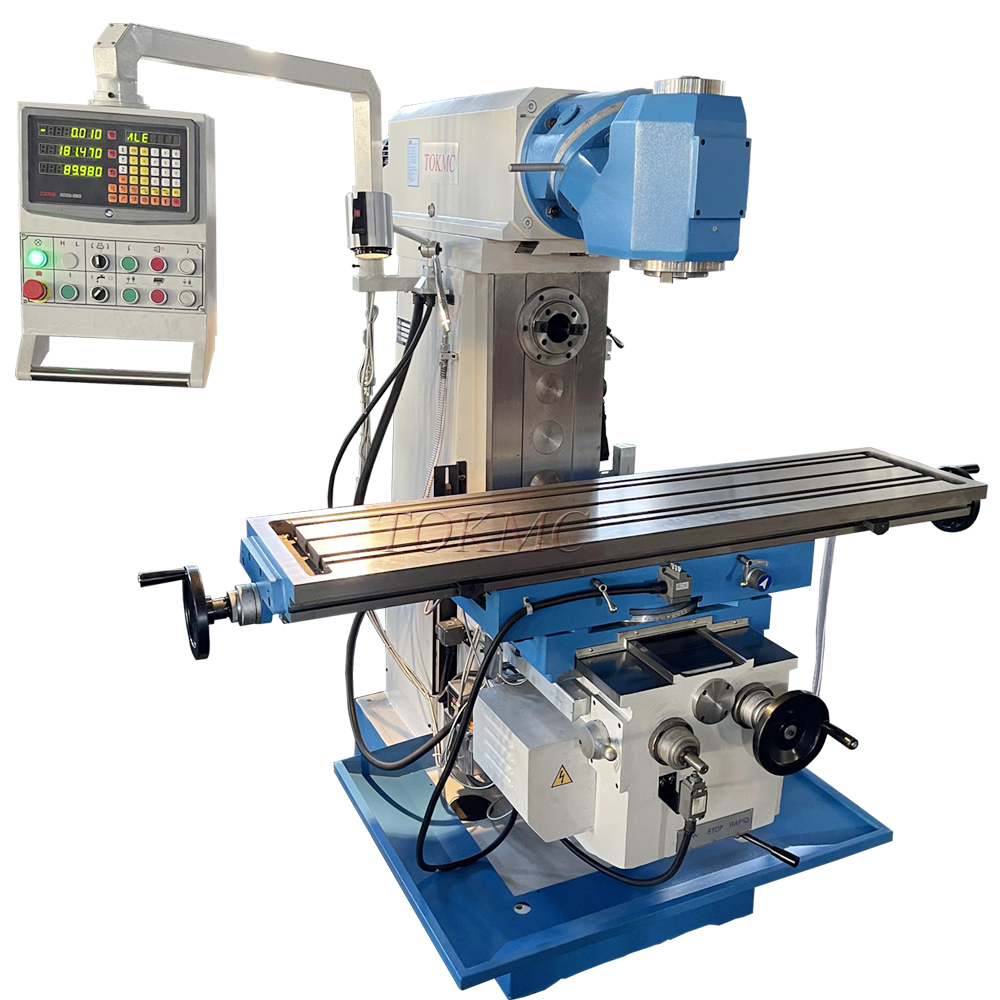

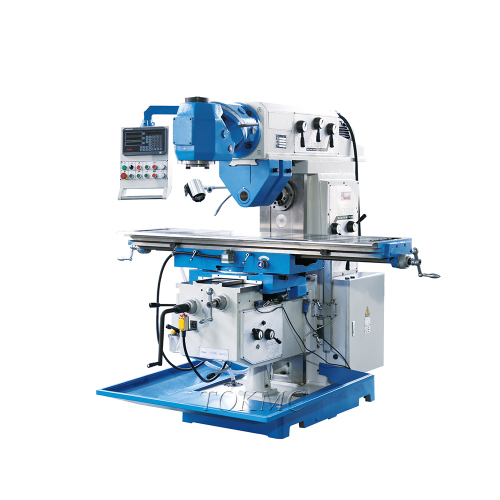

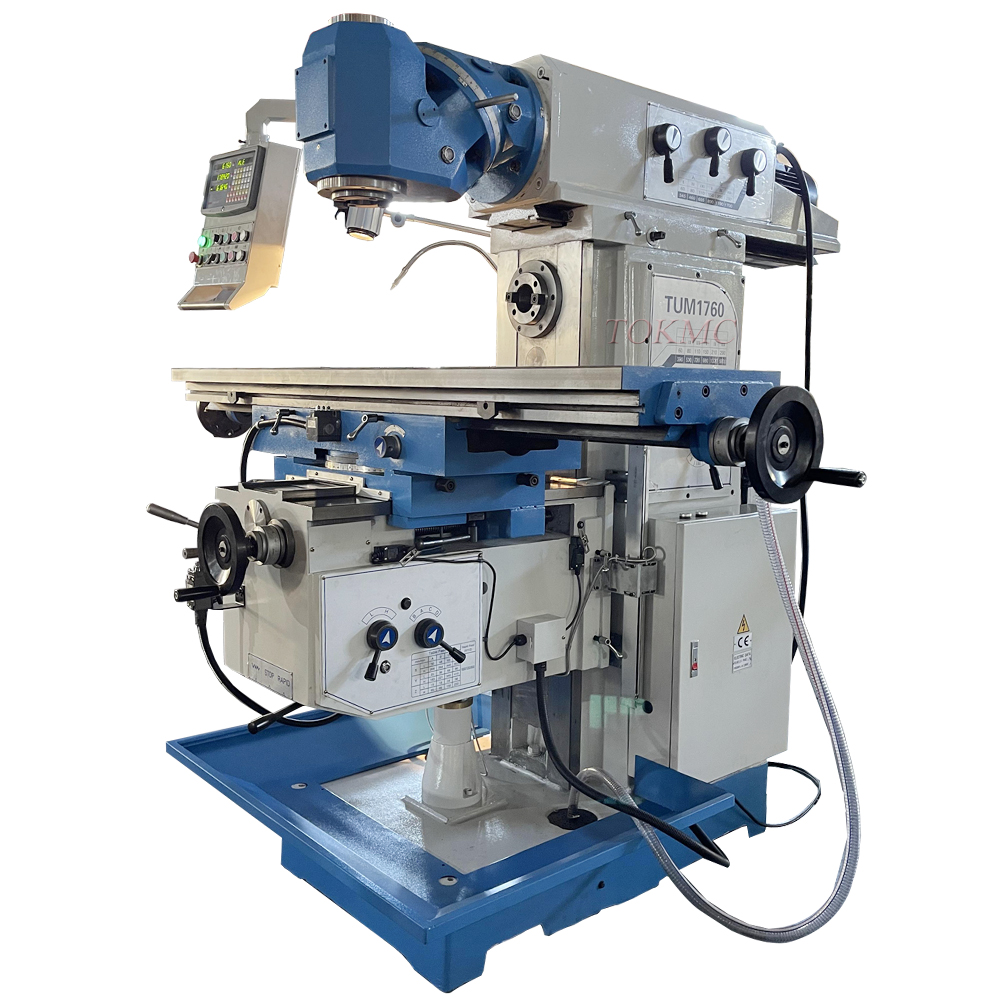

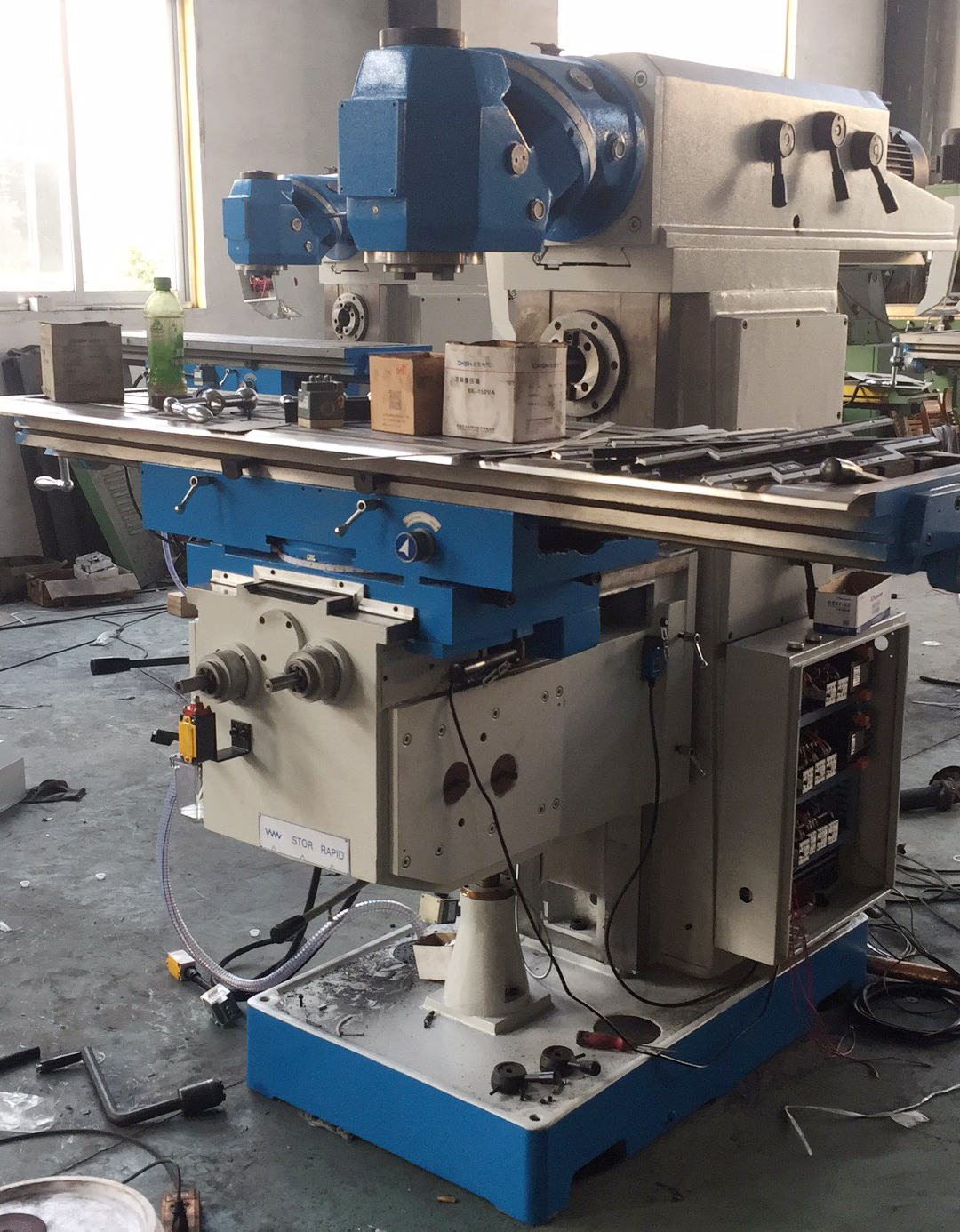

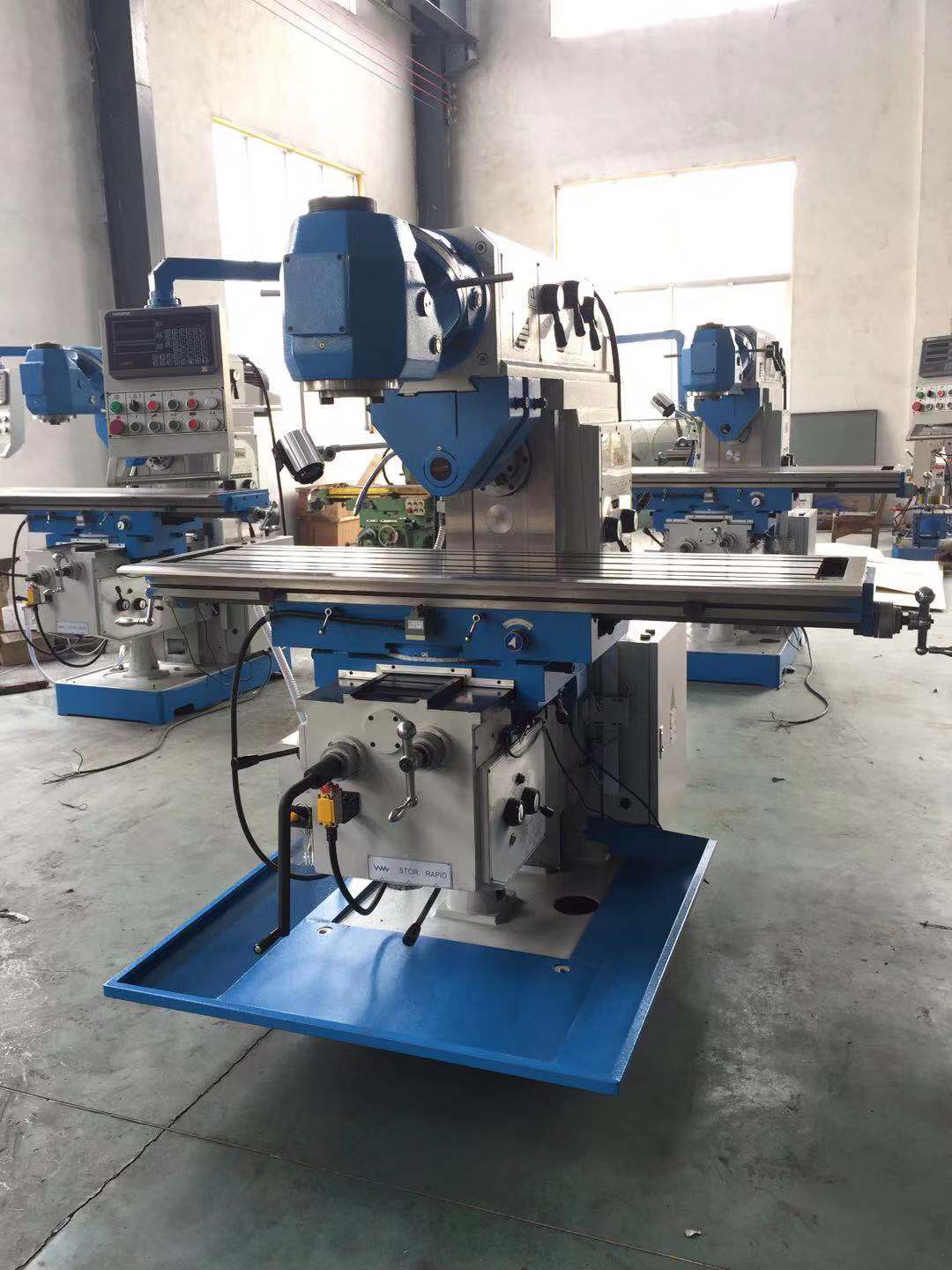

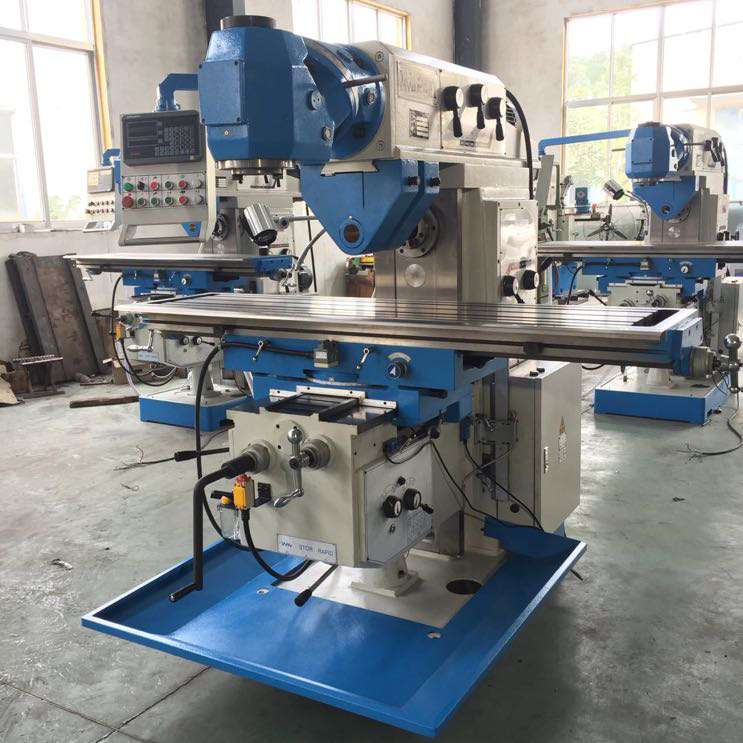

| ITEM | TUM1760 |
| Spindle taper | ISO50(V) ISO50(H) |
| Distance from spindle to table | 30-405mm |
| Spindle speeds | 12steps 60-1700(V) r.p.m. 12steps 60-1800(H) r.p.m |
| Table size | 1700x400mm |
| Max. Rotations angle of table | ±45° |
| Table travel (X/Y/Z) | (1000)900x400x405mm |
| Feeding travel (X/Y/Z) | 860x350x400mm |
| Feeding rang of longitudinal travel | 8steps 30~600mm/min |
| Feeding rang of cross travel | 8steps22~410mm/min |
| Feeding rang of vertical travel | 8steps 15~220mm/min |
| X-axis rapid feed speed | 1800mm/min |
| Y-axis rapid feed speed | 1300 mm/min |
| Z-axis rapid feed speed | 600mm/min |
| Feed motor | 1.5KW |
| Max. Weight of work piece | 400KGS |
| T-slot number/width/distance | 3/18mm/70mm |
| Column guide way | Rectangular guideway |
| Cross slide way of table | Rectangular guideway |
| Longitudinal slide way of table | Dovetails guideway |
| Main motor | 4KW(V ) 4KW(H) |
| Coolant pump power | 90W |
| N.W./G.W. | 2650/2850KGS |
