| Item | ZX50C |
| Max.drilling dia. | 50 |
| Max.horizontal milling dia. | 100 |
| Max.vertical milling dia. | 25 |
| Max.boring dia. | 120 |
| Max.tapping dia. | M16 |
| Spindle taper | MT4,ISO30 |

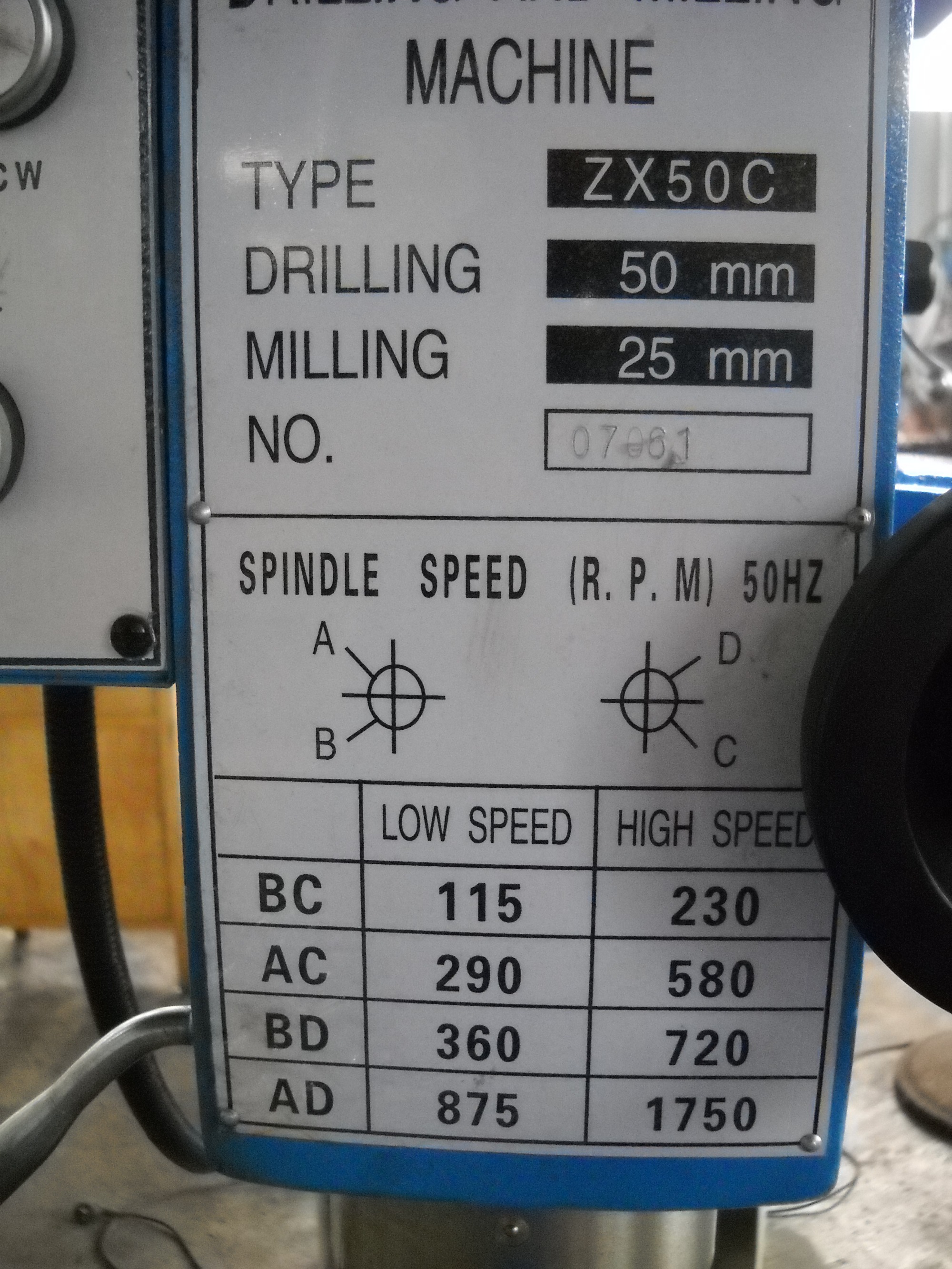

| Spindle speeds range | 115-1750(8) |
| Spindle travel | 120 |

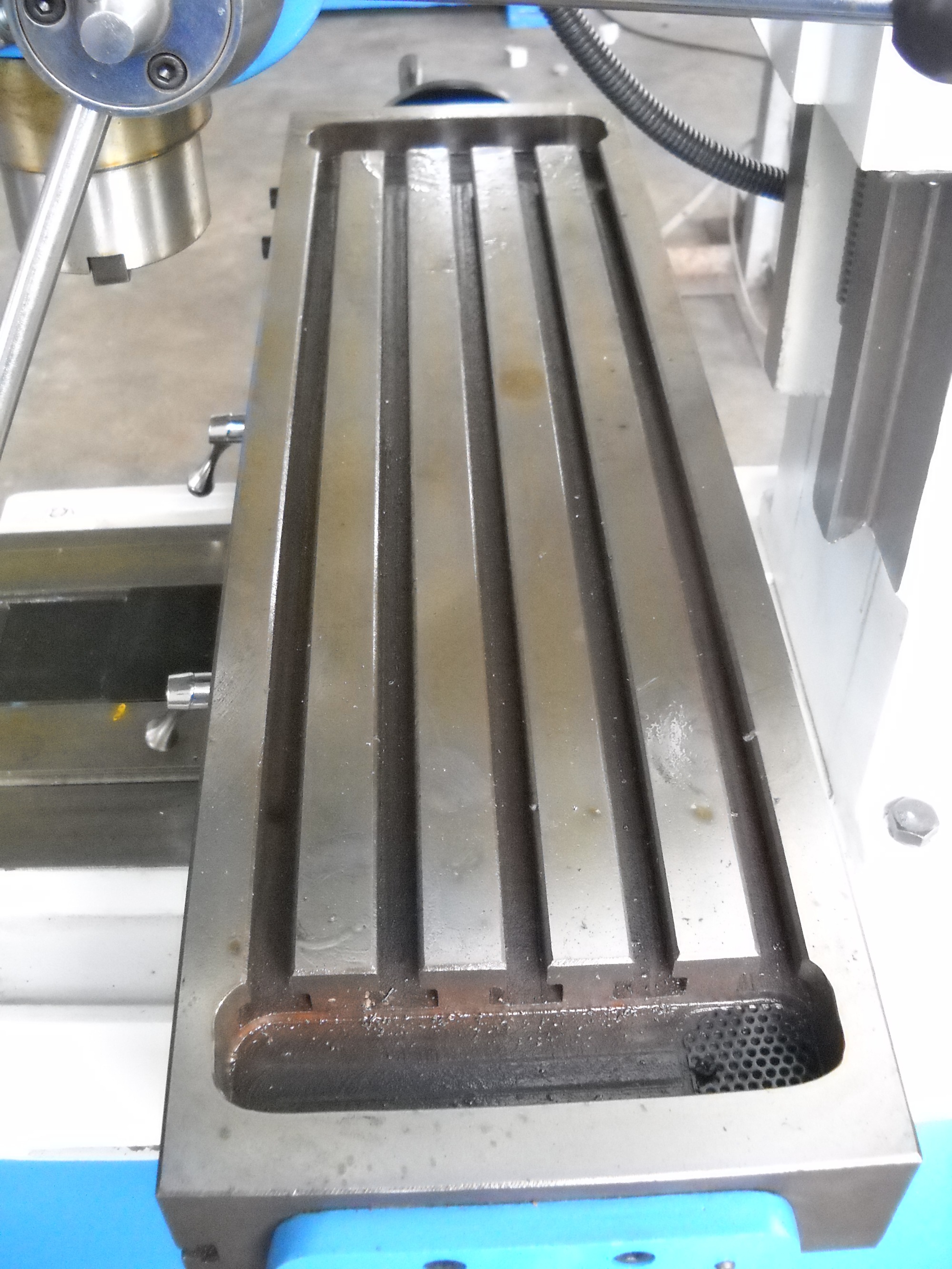

| Table size | 800×240 |
| Table travel | 400×230×380 |
| Main motor power | 20.85/1.5 |
| N.W/G.W | 500/600 |
| Digital readout two axes |
| Machine vise 6” |
| Digial Power feed X /Y axis |
| Coolant system |
| Rotary table 250mm |
| Clamping kit 52pcs |
