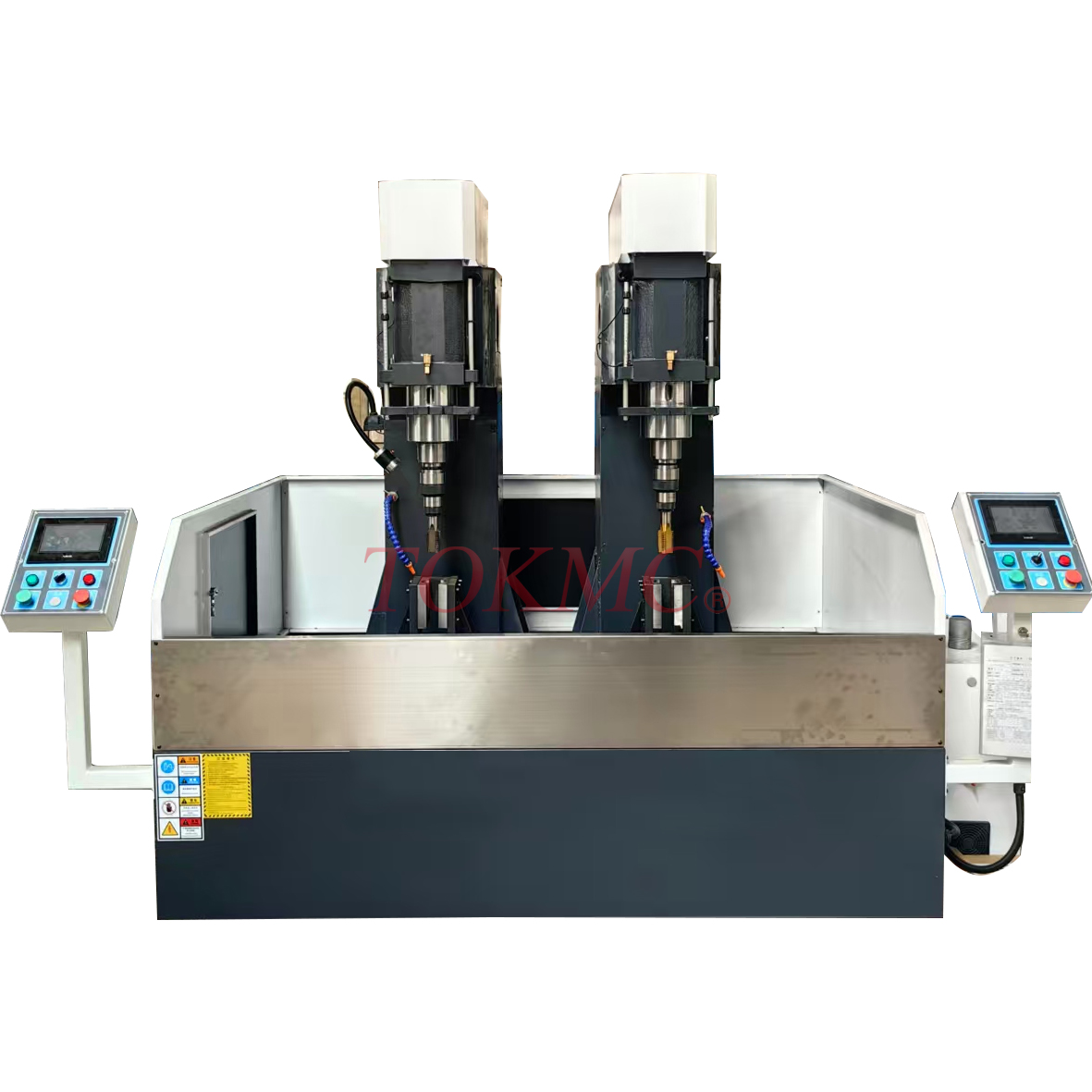

Model |
TOKMC-35 |
Unit |
Remark |
|
Z axis travel |
150 |
mm |
|
|
Spindle bearings |
NSK |
|
|
|
Spindle leadscrew |
TAIWAN HIWIN |
|
|
|
Sealing rings |
America |
|
|
|
Distance from spindle nose to worktable |
300-800 |
mm |
Adjust height |
|
Z-axis spindle motor |
4KW |
Kw |
|
|
Spindle speed |
Variable speed |
r.p.m |
|
|
Spindle outer diameter |
Φ95 |
mm |
|
|
Maximum drilling depth |
Φ35 |
mm |
|
|
Spindle taper bore size |
MT4 |
|
|
|
Z-axis feed motor |
2.3KW Xinje absolute value servo motor (bus type) |
Kw |
|
|
Z-axis rapid displacement |
15 |
m/min |
|
|
Positioning accuracy/repeatability |
0.01-0.02 |
mm |
|
|
Worktable size |
customized |
mm |
|
