2.Continuous blows can be implemented, changing the past situation where the handle moves up and down once and strikes once. You can use the display to set continuous light hitting and continuous heavy hitting. This also reduces the labor intensity of workers.

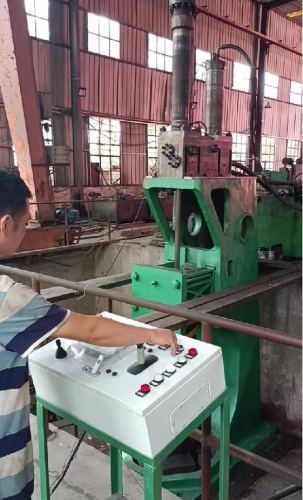

3. Remote control can be implemented, and according to the site environment, you can choose to place the console at will
Location. In this way, it is convenient for workers to better observe the state of the forged workpiece, and it is convenient to operate.
4.The console of the electro-hydraulic hammer can be put together with the manipulator, and one person can operate the electro-hydraulic hammer with his right hand and the manipulator with his left hand. In this way, one less worker can be used and the production cost can be reduced
No. |
Item |
Unit |
specifications |
1 |
Power |
V/Hz |
380V/50Hz |
2 |
design strike energy |
KJ |
>60 |
3 |
Drop some weight |
kg |
2500 |
4 |
design itinerary |
mm |
1200 |
5 |
Minimum closed mold height (without dovetail) |
mm |
260 |
6 |
Working oil pressure |
Kg/cm2 |
125-140 |
7 |
Oil pump model |
L |
A2F160R2P3 |
8 |
Attack frequency (times/minute) |
Min-1 |
7 ≥7 hammer |
9 |
Main mtor |
KW |
55*1 |
