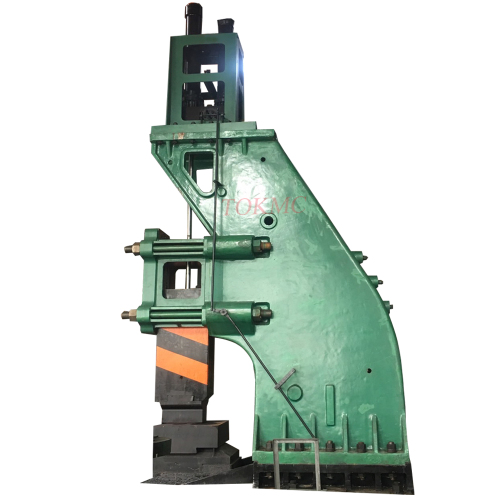

Single arm follow up control fully hydraulic open die forging hammer C61Y
|
Specification |
unit |
1.5 T |
2.5T |
3T |
|
Striking energy |
KJ |
35 |
75 |
150 |
|
Max.drop weight include hammer |
KG |
1500 |
2500 |
4000 |
|
Max.working stroke |
m |
1.1 |
1.2 |
1.35 |
|
anvil height |
mm |
725 |
725 |
750 |
|
Hammer spacing |
mm |
700 |
850 |
900 |
|
Guideway spacing |
mm |
450 |
530 |
550 |
|
Diameter of big Hammer head |
cm |
95 |
130 |
145 |
|
Main cylinder pressure |
Kg/cm2 |
30 |
30 |
30 |
|
Diameter of small Hammer head |
cm |
70 |
85 |
90 |
|
Working Oil pressure |
|
120 |
120 |
120 |
|
Oil pump model |
L |
45V-C |
45V-C |
45V-C |
|
Accumulator size |
mm |
220 |
220 |
220 |
|
Max.striking frequency |
Min-1 |
≥75 |
≥75 |
≥75 |
|
Main motor power |
Kw |
75x1 |
75x3 |
75x3 |
|
Heat exchange area |
㎡ |
10 |
15 |
20 |
|
Oil tank volumn |
㎡ |
2 |
3 |
6 |
