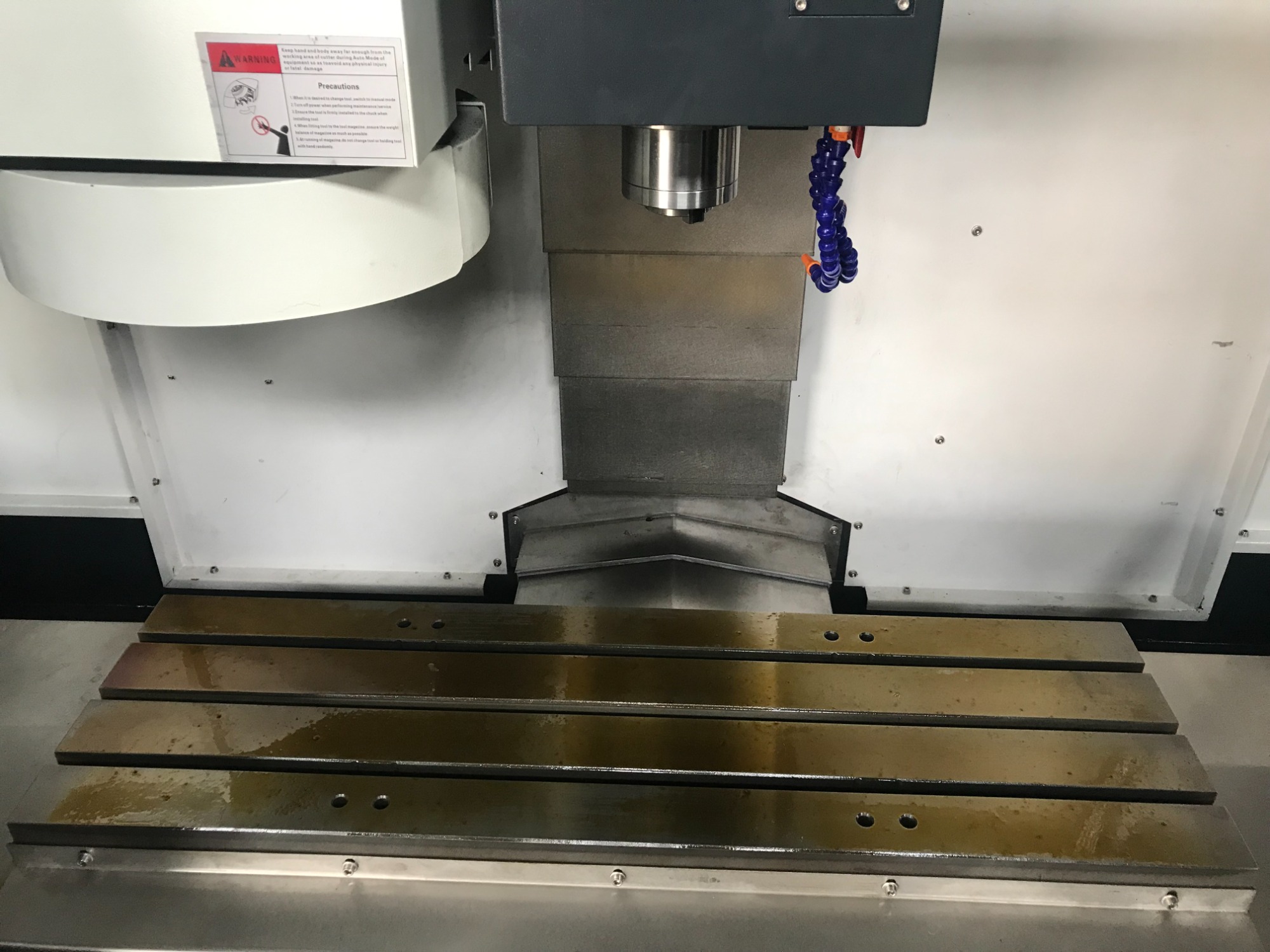

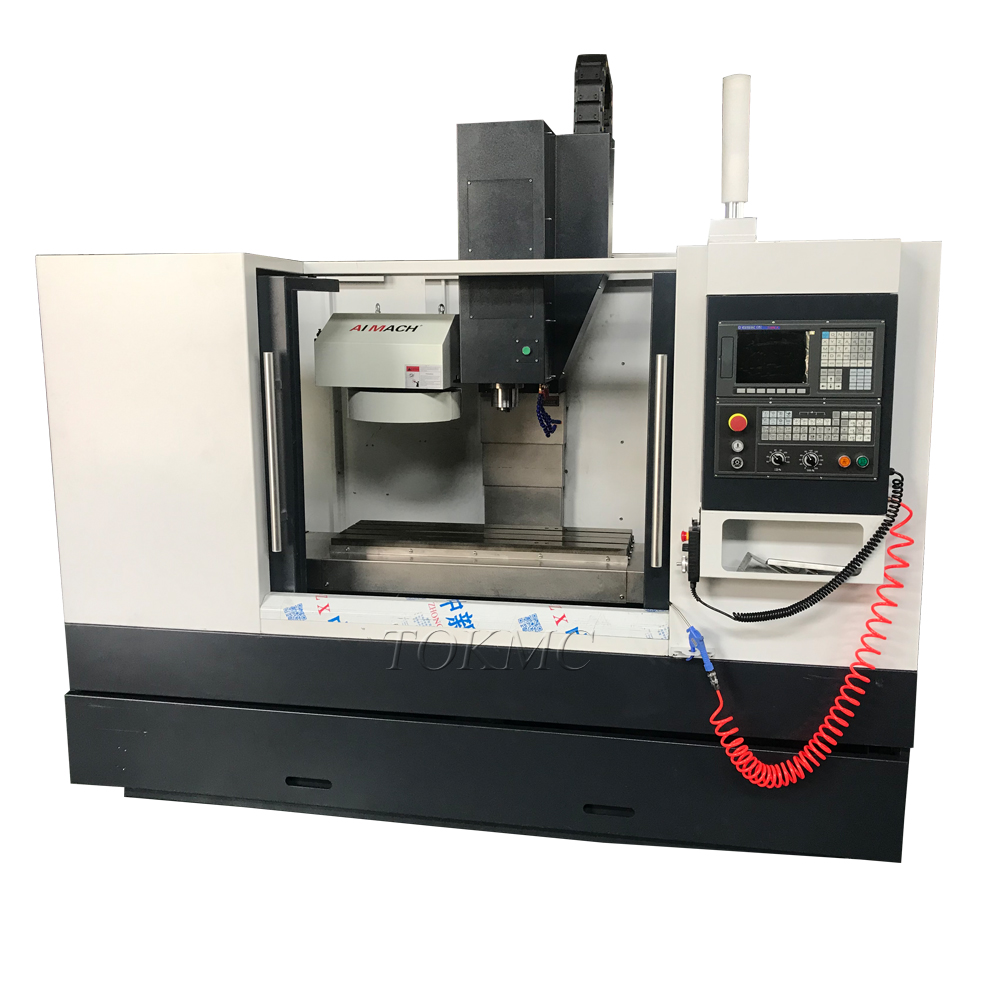

CNC Machine center VMC400
1. German Rexroth Ball Linear Guide, which makes the machine tool have higher rigidity, lower noise and friction characteristics.
2. High-rigidity C-shaped structure design of the whole machine.
3. Synchronous belt spindle structure improves transmission accuracy, provides good machining finish and higher thermal stability.
4. All structural components have stiffeners and corner braces.
Standard accessory : Fanuc 0i MF or GSK cnc system, RS232 connection
Optional accessory : Siemens 828D, KND, 24pcs arm style tool magazine,4 axis rotary table, auto chip conveyor
|
Specification |
Unit |
VMC400 |
|
Table travel X,Y,Z |
mm |
400/280/450 |
|
Distance between spindle and table surface |
mm |
100-550 |
|
Spindle center to column surface |
mm |
350 |
|
Rapid feed speed X |
M/min |
18 |
|
Rapid feed speed Y |
M/min |
18 |
|
Rapid feed speed Z |
M/min |
12 |
|
Cutting feed rate |
Mm/min |
1-4000 |
|
Table size |
Mm |
820x230 |
|
Max.loading weight on table |
Kg |
300 |
|
T-slot (number-width-Distance) |
|
3-16-65 |
|
Spindle speed range |
Rpm |
6000 |
|
Spindle taper |
BT |
30 |
|
Spindle motor power |
Kw |
3.7 |
|
Magazine type |
|
12 pcs Bamboo hat type knife |
|
Max.tool diameter |
Mm |
80 |
|
Max.tool length |
Mm |
200 |
|
Max.tool weight |
Kg |
6 |
|
Positioning accuracy |
Mm |
±0.005/300 |
|
Repeatability |
Mm |
0.003 |
|
Weight |
Kg |
1600 |
|
Machine size |
Cm |
190x150x210 |
