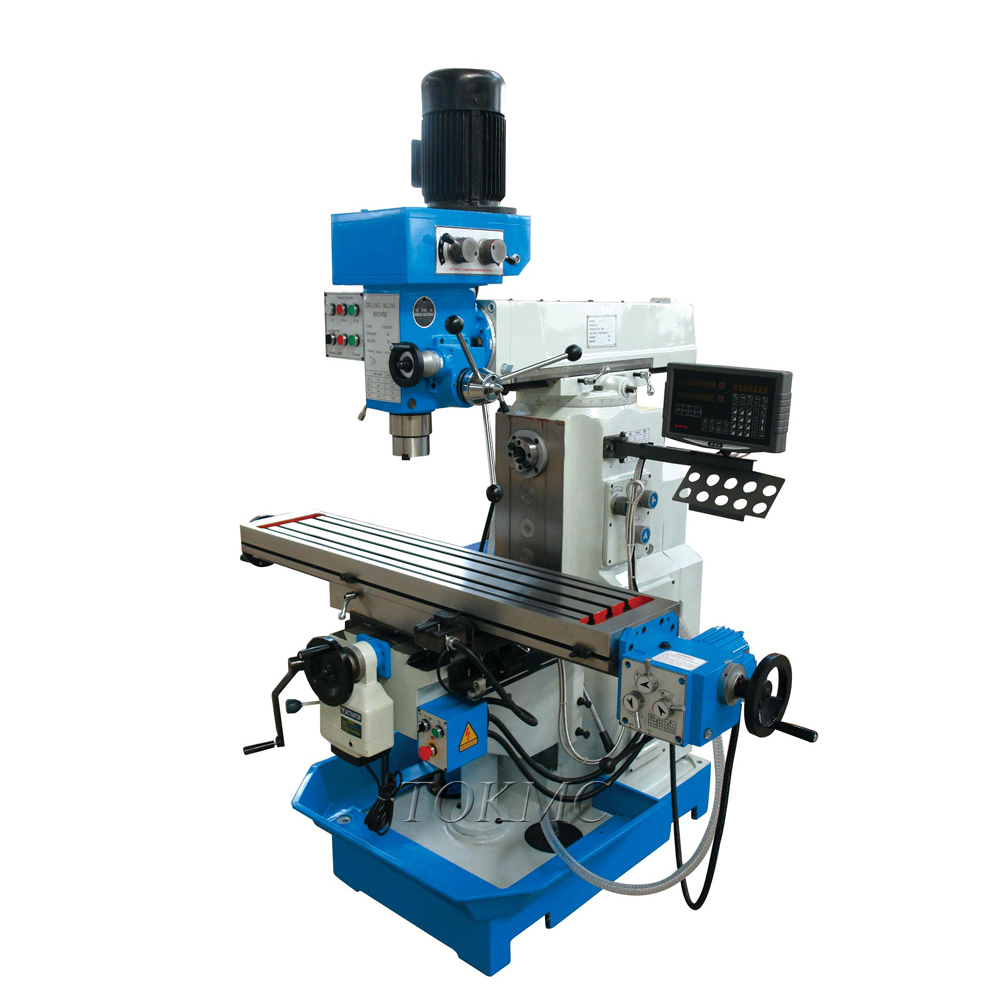

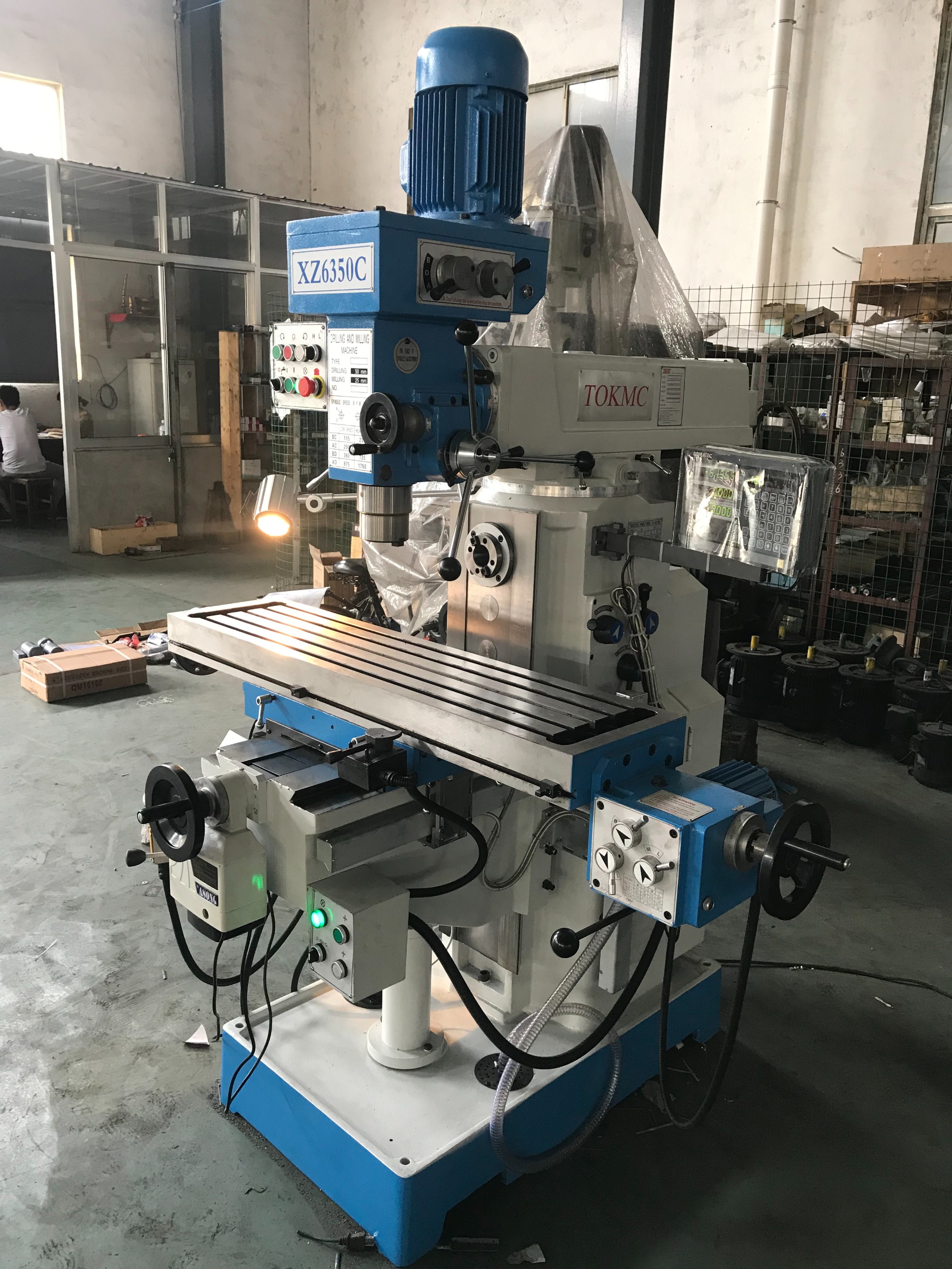

Drilling milling machine XZ6350C

Item No.: A009
Hardened and ground table surface.

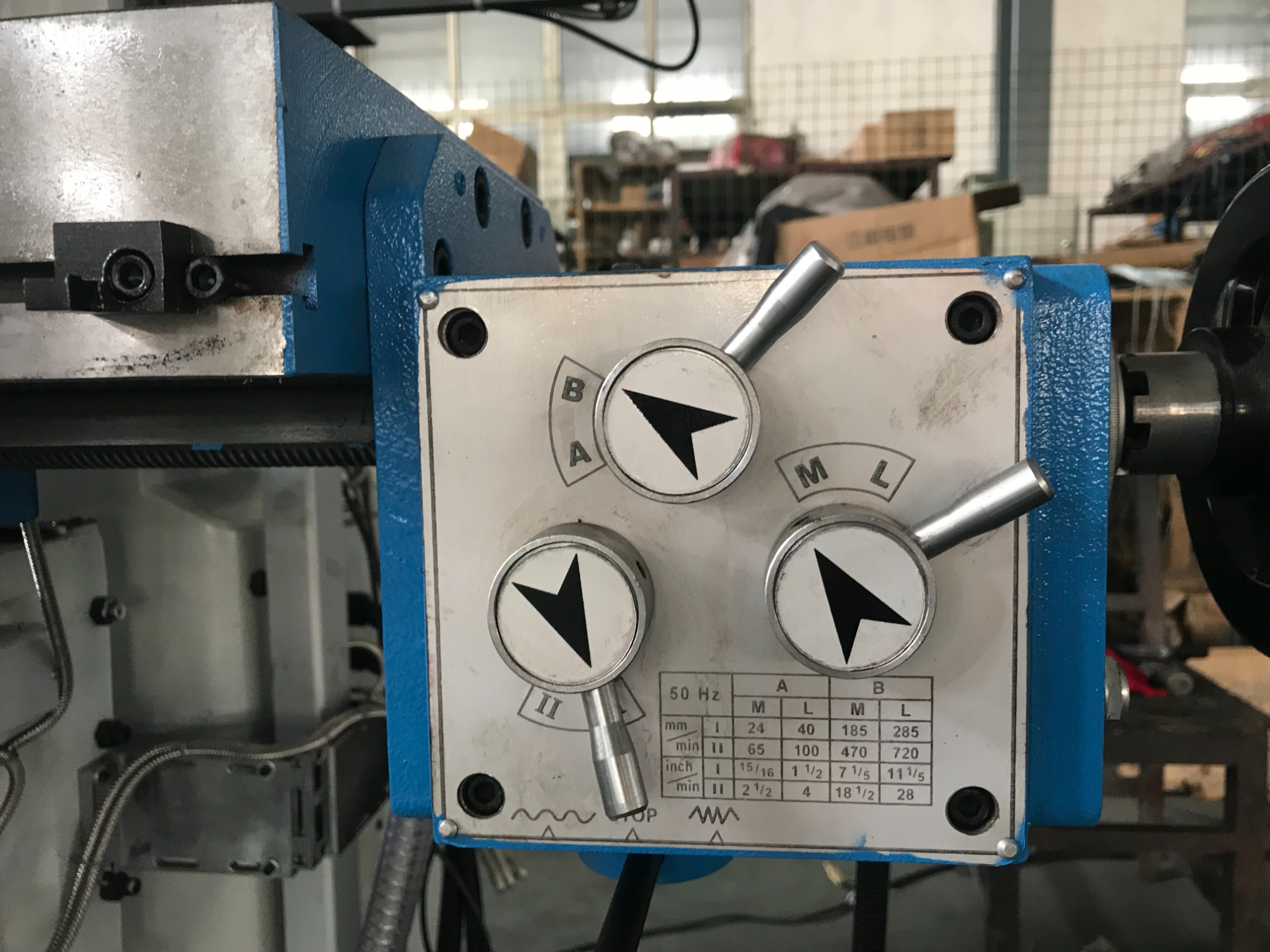

Table feed in X  axis by gear parts.

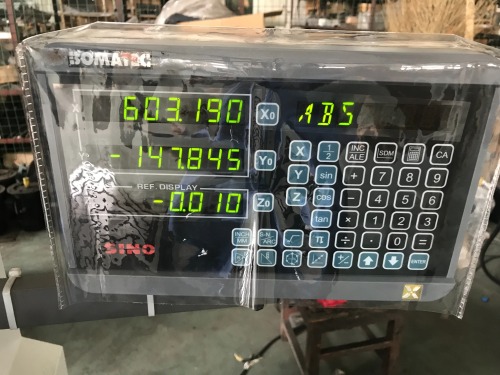

DRO is optional.
Add to Inquiry
Description
Milling Machine XZ6350C
Spindle taper MT4(V)  ISO40(H)
Distance from spindle to table 90-410mm
Distance from horizontal spindle to table 0-300mm
Distance from spindle to column 200-700mm

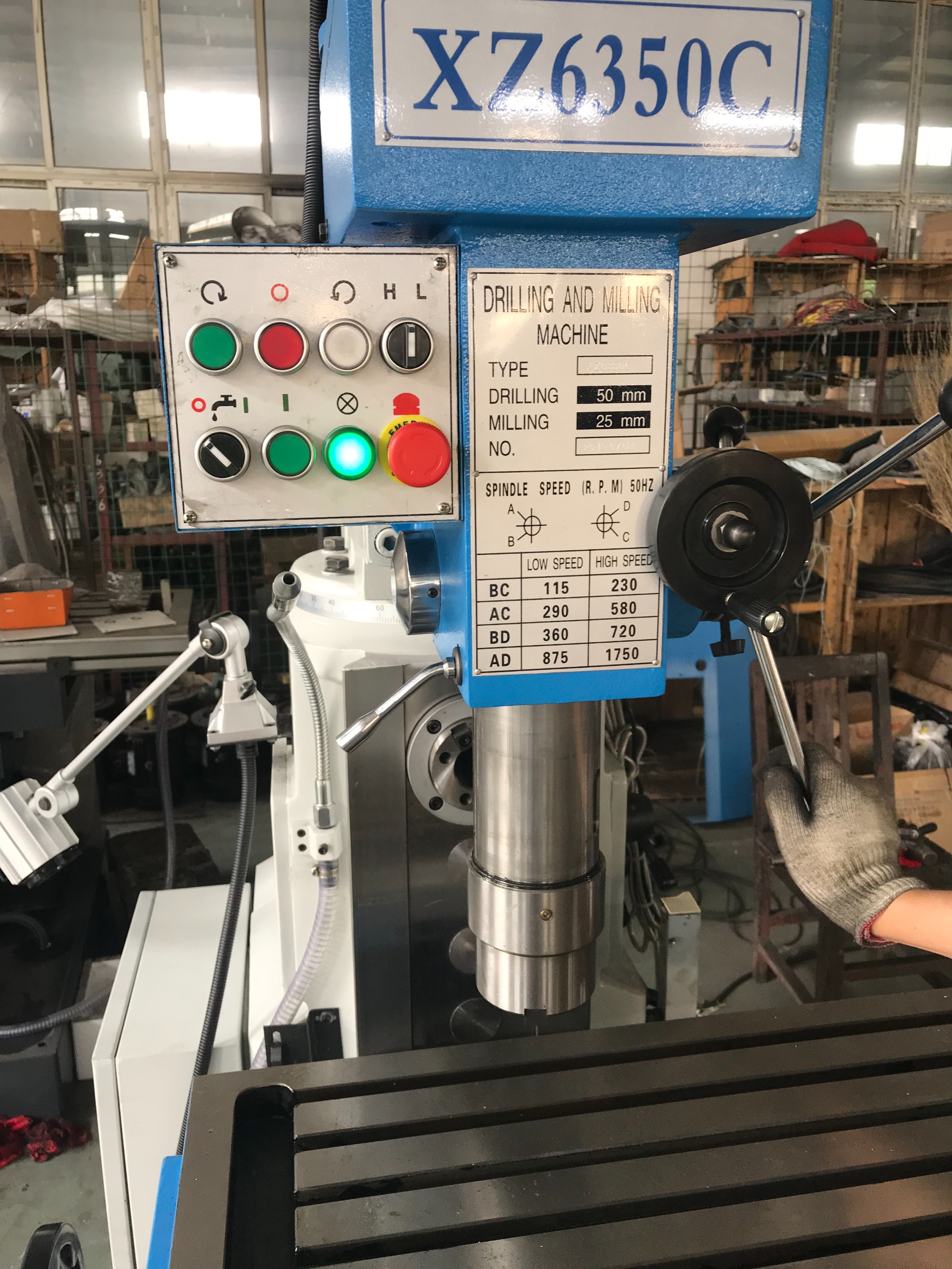

Spindle speeds (8step)115-1750r.p.m(V)
(12step)40-1300r.p.m(H)
Spindle travel 120mm
Max.drilling capacity of auto-feeding M16
Head movement ±45°
Table size 11201200×280mm
Table travel (Horizontal/Cross/Vertical) 600/260/300mm
Max.weight of work piece 200kg
T-slot Number/Width/Distance 3/14mm/70mm
Horse power for main motor 0.85/1.5kw(V)  2.2kw(H)
X axis driving motor 370W
Overall dimension 1600×1340×2130mm
Packing size 1620×1400×2220mm
N.W/G.W. 1250/1350kg
