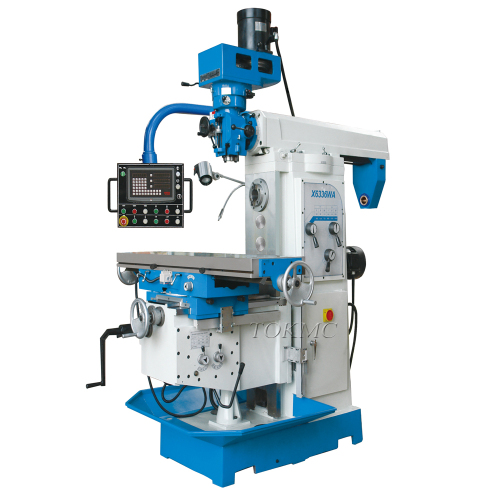

universal radial milling machine

Item No.: 008
Rectangular guideway with high stability
X,Y,Z axes auto feed.
Ballscrew on X,Y axes is optional.
Add to Inquiry
Description
 Specification X6336WA
Spindle taper ISO40(V)    ISO50(H)
Distance from spindle to table 30-510mm
Spindle speeds 75-4660r.p.m(V)              40-1300r.p.m(H)
Table size 1500x360 mm
Max.rotations angle of table ±45
Table travel(horizontal/cross/vertical) 900x390x500mm
Feeding range of longitudinal cross travel 860x350x450mm
Feeding range of longitudinal travel 30-600 mm/min 8 steps
Feeding range of cross travel 22-410mm/min  8 steps
Feeding range of vertical travel 15-220 mm/min 8 steps
X Y Z axis rapid feed speed 1300 /1200/ 600 mm/min
Feed motor 1.1 kw
Max. Weight of workpiece 400 kgs
T-slot number width distance 3-18-70 mm
Main motor 5HP (V)  4KW(H)
Overall dimension 2180X1950X2380 mm
N.W./G.W. 2350/2600KG
