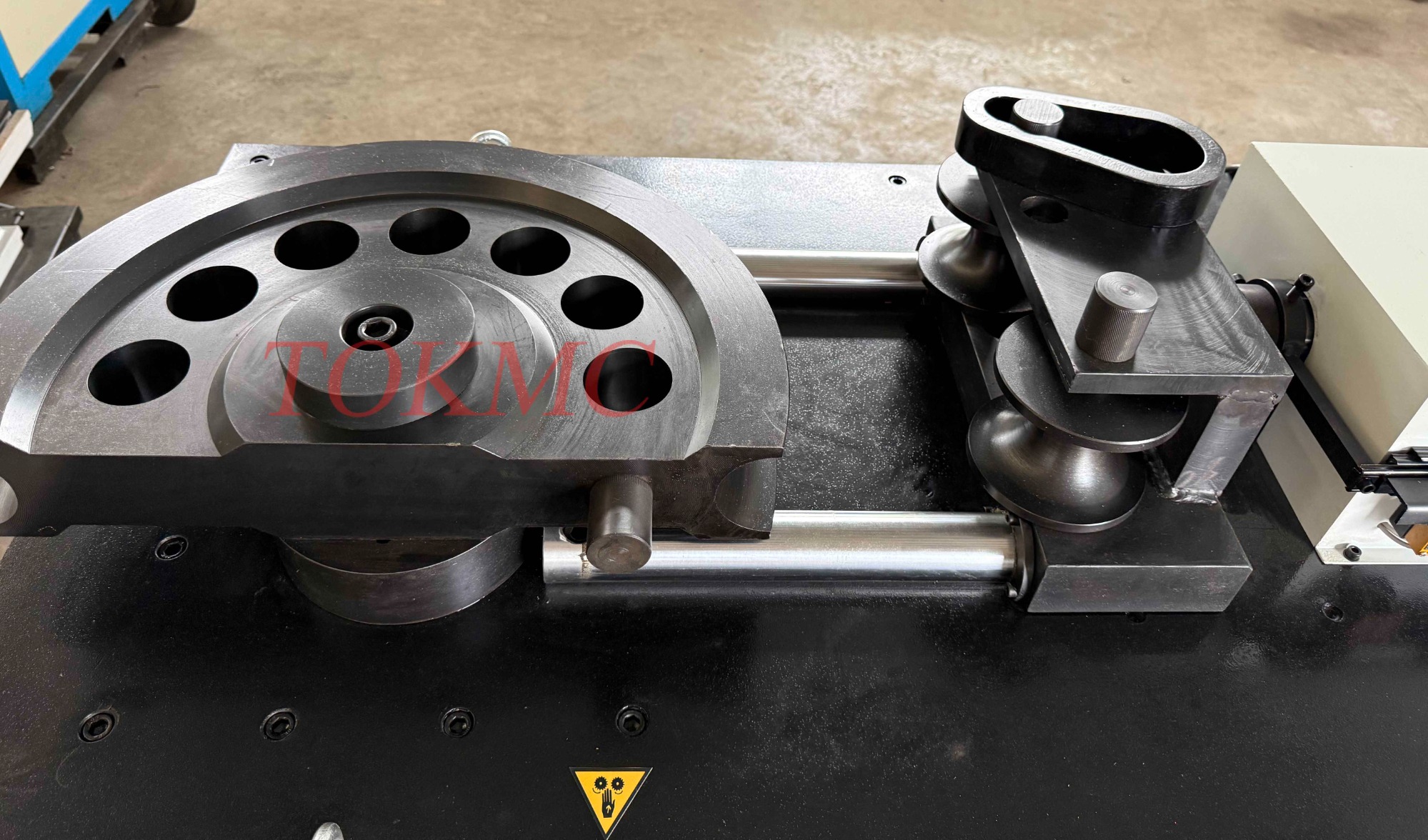

Standard dies: 76 x 265 mm (OD x CLR) / 60 x 210 mm (OD x CLR).
Wall thickness:1-9mm.
Hydraulic power drive, PLC Control.
|
Model |
JTB-80 |
||
|
Dimensions of Workpieces |
Round pipe |
Max. |
φ80 |
|
Min. |
φ40 |
||
|
Stainless steel pipe |
Max. |
φ50.8 |
|
|
Min. |
φ32.2 |
||
|
Square pipe |
Max. |
80x80 mm |
|
|
Min. |
40x40 mm |
||
|
Angle of Bending |
180° |
||
|
Rate of Main Shaft Rotation |
2 r/min |
||
|
Performance of Motor |
5.5 kW 1400 r/min |
||
|
Hydraulic Motor for Specific Purpose |
1.5 kW 1400 r/min |
||
|
Packing Size |
150x91x155 cm |
||
|
N.W./G.W. |
1300 /1400 kg |
||
