1. Bending work pieces such as low carbon round tubes, stainless round tubes, square tubes, and round steel bars to achieve desired shapes.

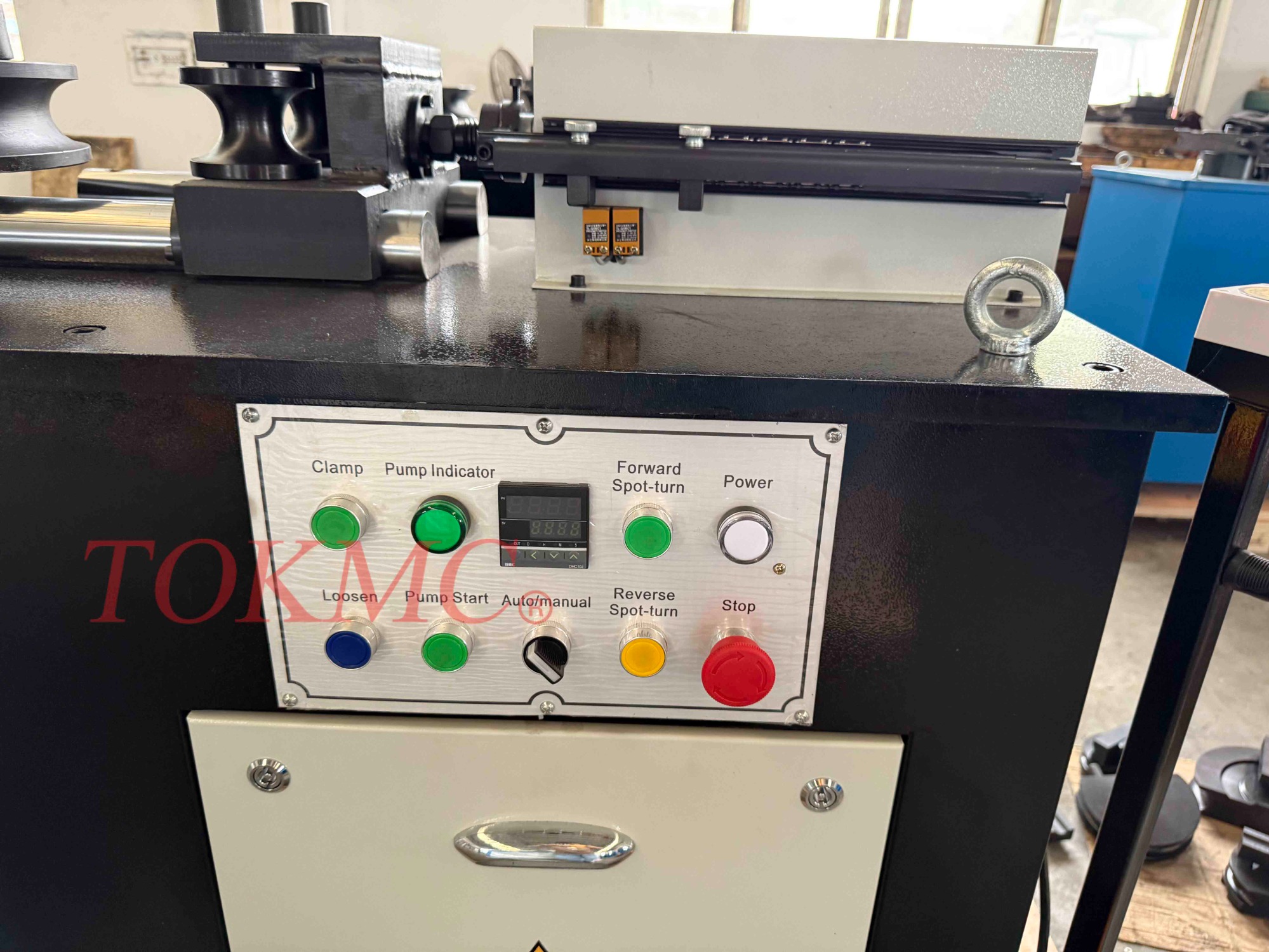

2. The equipment features “one-touch” operation on single workpiece and data-program controlled mass processing.
3. Easy to operate, reasonable in composition, and low power consumption with high work efficiency.
4.Hydraulic power drive, PLC control
5. Wall thickness: 1-5mm
Standard accessories:
25mm, 32mm, 38mm, 48mm
|
Model |
JTB-50 |
||
|
Dimensions of workpieces |
Round pipe |
Max. |
φ51mm |
|
Min. |
φ16mm |
||
|
Stainless steel pip |
Max. |
φ38mm |
|
|
Min. |
φ16mm |
||
|
Square pipe |
Max. |
50x50mm |
|
|
Min. |
16x16mm |
||
|
Angle of bending |
180° |
||
|
Rate of main shaft rotation r/min |
5 |
||
|
Motor(Kw) |
2.2 |
||
|
Packing size |
1450x 690x 1170 mm |
||
|
N.W/G.W. |
550 / 620 kg |
||
