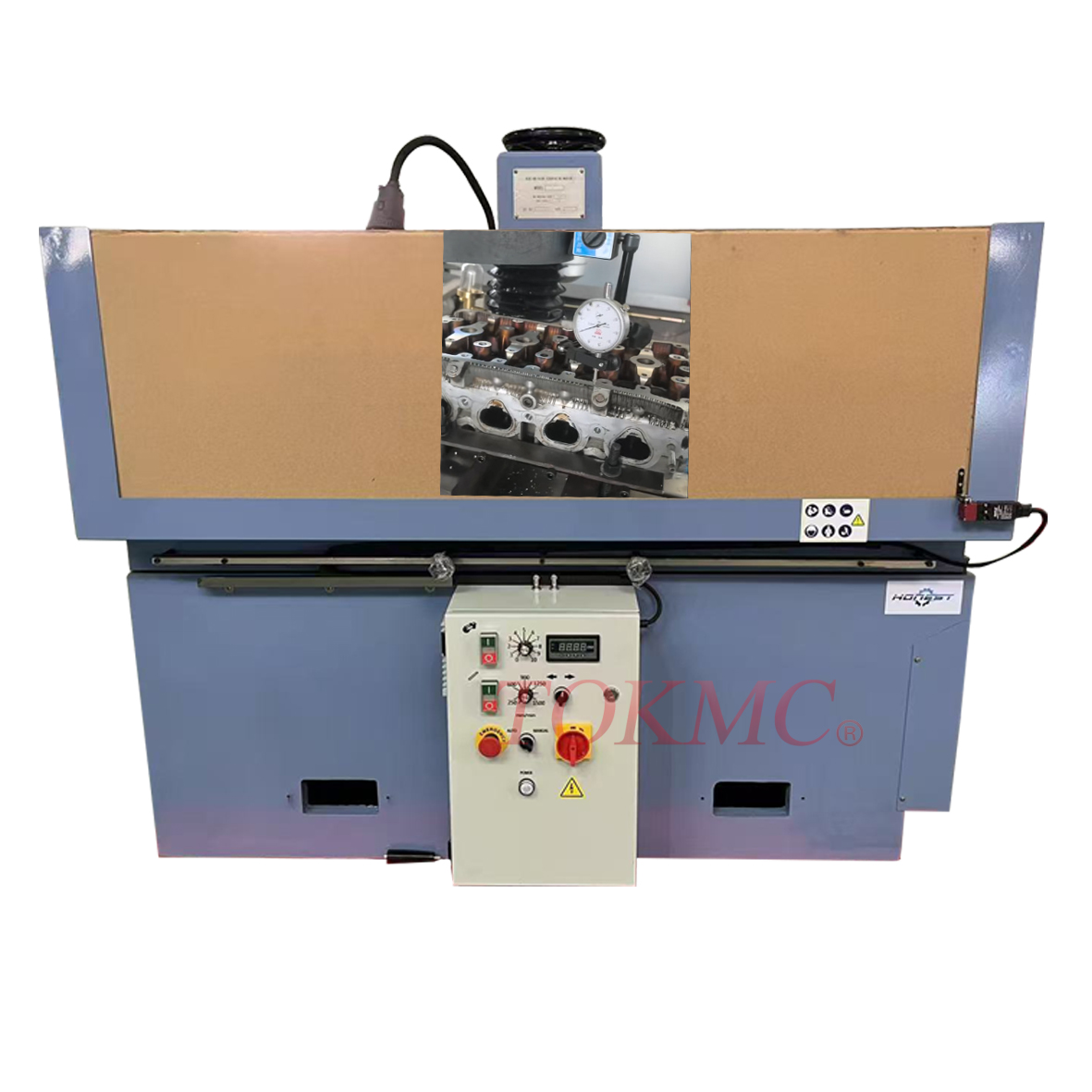

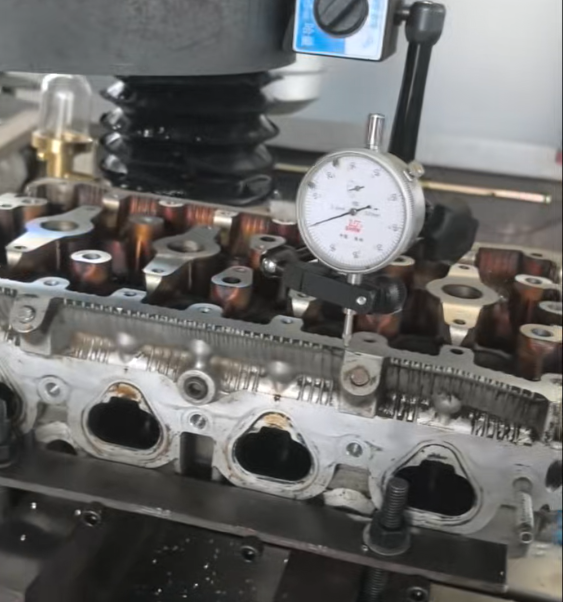

· Purpose: Resurfacing and skimming cylinder heads and engine blocks for cars and trucks (gasoline and diesel).
· Build: High-grade cast iron frame for structural rigidity, stability, and vibration reduction during milling.
· Workpiece Capacity: Designed to handle components up to roughly 1100 mm in length.
· Control & Operation: Often equipped with precision ball screw table drives, inverter-controlled head rotation, and manual or continuous cycle programs.
|
Resurfacing machine tokmc |
Unit |
KSM1100 |
|
Worktable travel |
Mm |
1350 |
|
Max.work piece length |
Mm |
1100 |
|
Max.work piece width |
Mm |
400 |
|
Work piece height min.and max. Tokmc |
Mm |
260-520 |
|
The diameter of milling wheel |
Mm |
400 |
|
Variable head rotate speed |
Rpm |
300-1200 |
|
Variable table travel speed |
Mm/min |
0-600 |
|
Spindle head motor |
Kw |
2.2 |
|
Worktable motor |
Kw |
1.5 |
|
Machine dimension |
cm |
190x125x168 |
|
Net weight/Gross weight |
Kg |
1500/1760 |
