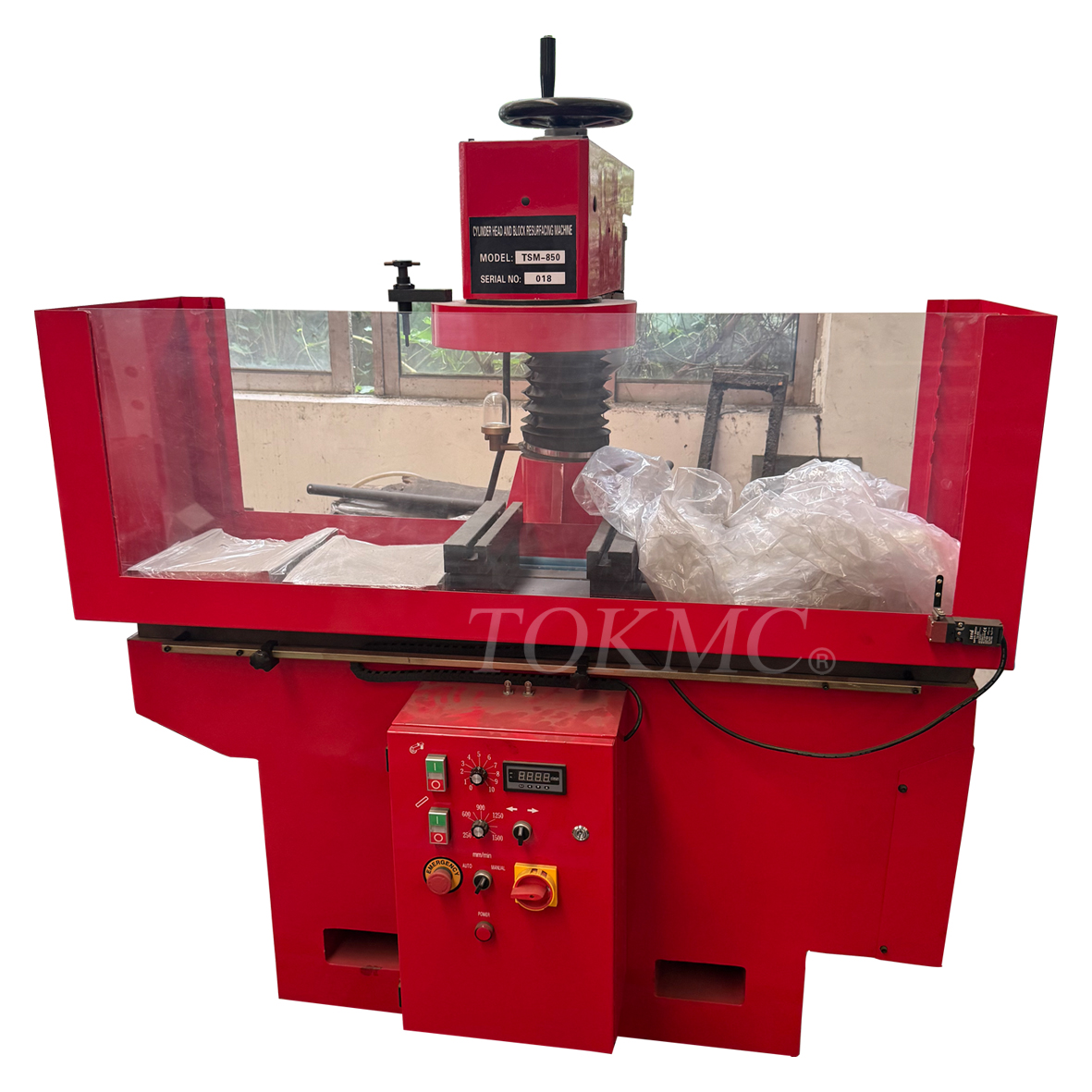

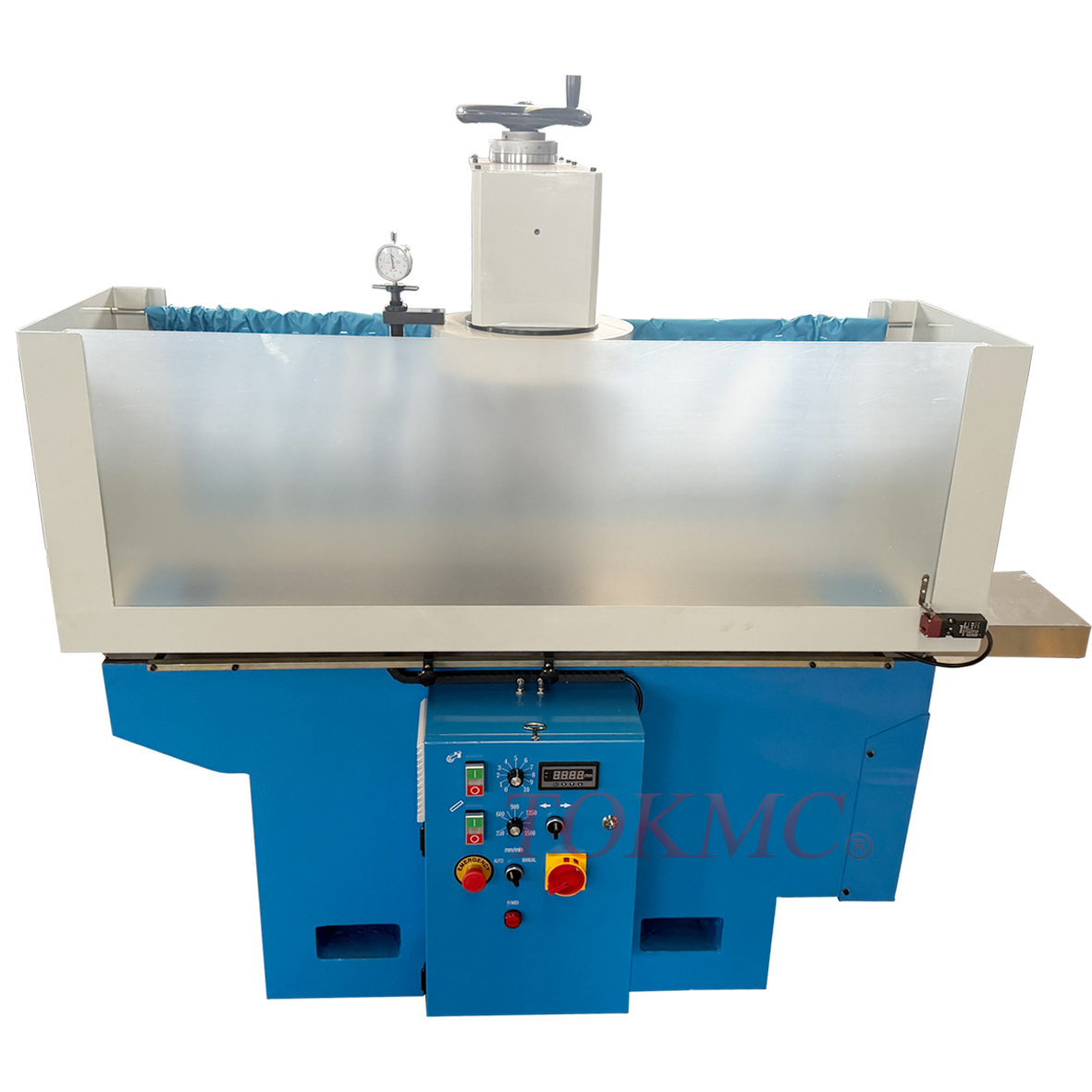

The TSM850, KSM850 and TSM1200 are designed for professional engine rebuilding, remanufacturing and automotive machine shops. They can machine cylinder heads and engine blocks used in passenger cars, trucks, diesel engines and other heavy-duty applications.
|
Block Resurfacing Machines |
Unit |
KSM850 |
|
Worktable travel |
Mm |
1115 |
|
Max.work piece length |
Mm |
850 |
|
Max.work piece width |
Mm |
330 |
|
Min.max. Work piece height |
Mm |
160-440 |
|
Milling wheel diameter |
Mm |
330 |
|
Variable head rotate speed |
Rpm |
300-1200 |
|
Variable table travel speed |
Rpm |
0-600 |
|
Head motor |
Kw |
1.5 |
|
Table motor |
Kw |
0.75 |
|
Tokmc machine size |
Cm |
163x110x168 |
|
Net weight/gross weight |
Kg |
850/1000 |
