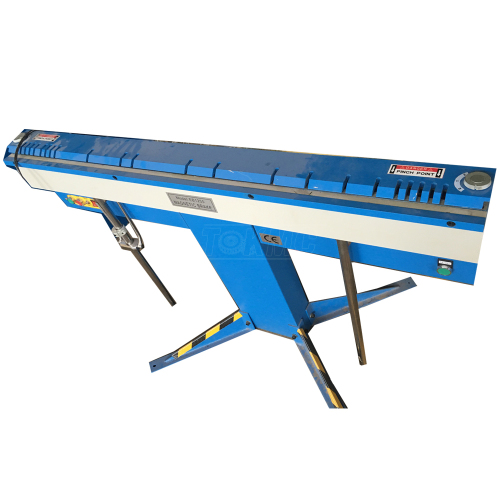

magnetic bending machine EB1250
magnetic bending machine EB1250 magnetic bending machine EB1250 magnetic bending machine EB1250

magnetic bending machine EB1250

Item No.: 025
-magnetic clamping brake
-Easy Raise clamp bar
-Unlimited box depth
-includes multiple finger lengths
-bending stop included
Add to Inquiry
Description
Magnetic bending machine uses electromagnetic, rather than mechanical clamping system.
The machine consists of a long electromagnet with a steel clamp bar located above it.
The sheet metal is clamped between the two by an electromagnet capable of clamping with a force range of 3-10 tons,
Rotating the bending beam then forms the bend.
The sheet is bent around the front edge of the clamping bar.
They have application in many ways with four various sets clamping bars
Model  EB625 EB1000 EB1250 EB2000 EB2500 EB3200
Max .length×thickness 625×1.6mm 1000×1.6mm 1250×1.6mm 2000×1.6mm 2500×1.6mm 3200×1.2mm
Clamping force 3 ton 4.5 ton 6 ton 9 ton 12 ton 10ton
Duty cycle 30% 30% 30% 30% 30% 30%
Back gauge 390mm 640mm 640mm 640mm 640mm 640mm
Foot switch no no standard standard standard standard
Protection  Thermal cut-out 70°C
Nominal current 4 amp 6amp 6amp 12amp 15amp 15amp
Bending -edge length 670 1050 1300 2090 2590 3290
Distance between lifters 630 1010 1260 2028 2528 3228
Packing size 83×112×38cm 120×112×38cm 145×112×38cm 220×112×38cm 270×112×38cm 340×112×38cm
N.W/G.W 102/127KG 142/177KG 175/220KG 290/360KG 330/420KG 400/510KG
