Mechanical slotting machine B5020E

Item No.: 107
Diameter of worktable 500mm
Request Quote
Description

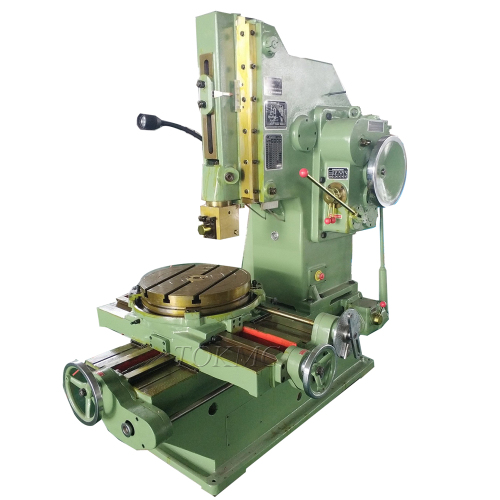

 Mechanical slotting machine B5020E
No.of ram reciprocation per minute 32/50/80/125  N/Min
Adjusting vertical distance of slide block 215 mm
Max. Rotary angle of worktable 360 degree
Feed range of worktable in longitudinal&tranverse direction 0.054-1.24mm
Rotary feed range of worktable 0.035-0.805 degree
Max.size of slotting tool LxH 25x40 mm
Max.slotting force 5 KN
Max.slotting length 200 mm
Distance from tool holding surface to column front 480mm
Distance from worktable surface to underside of
Slide rack
320 mm
Max.longitudinal travel of worktable 440 mm
Max.transverse travel of worktable 420 mm
Diameter of worktable Φ500
Max. Loading weight of worktable 400kg
Inclination of ram 0-8 ̊
T-Slot width in the center of worktable 18H8
Power and rotating speed of main motor 3kw, 1420 r/min
Power and rotating speed of motor for rapid travel of table 0.75kw,1390 r/min
Net weight kgs 2200 kg
Diemensions of machine tool  LxWxH 1717x1221x1885 mm
Working accuracy
Flatness of machined surface on tested workpiece 0.015 mm
Vertically of machined surface on tested workpiece 0.025 mm
Surface roughness on tested workpiece 6.3
Verticality of machined side surface on tested workpiece
Against base
0.02 mm
