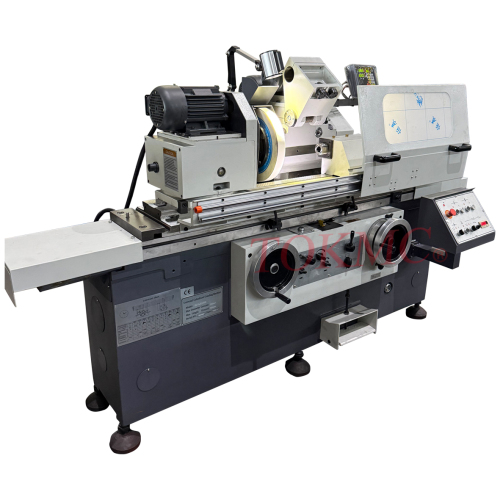

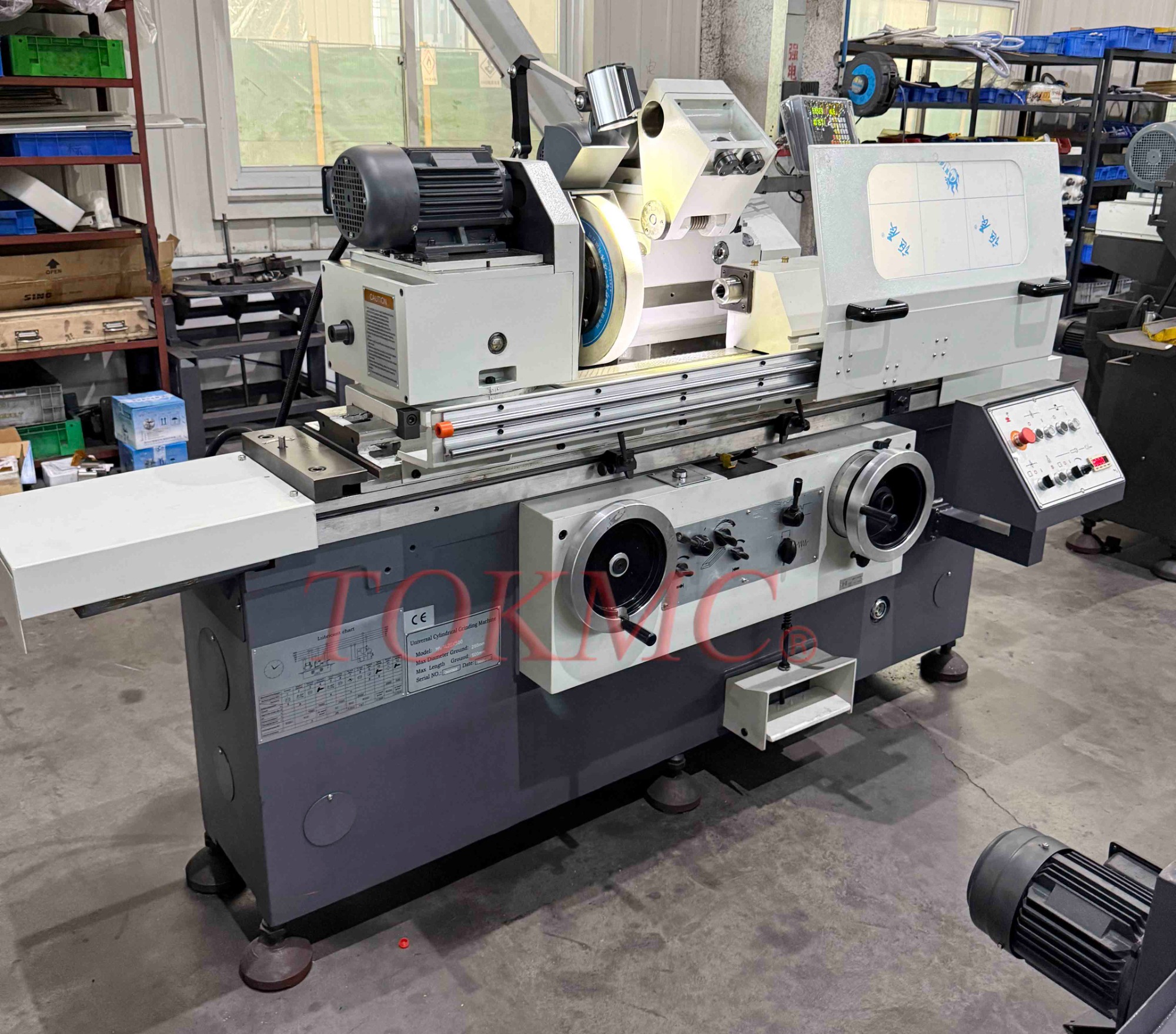

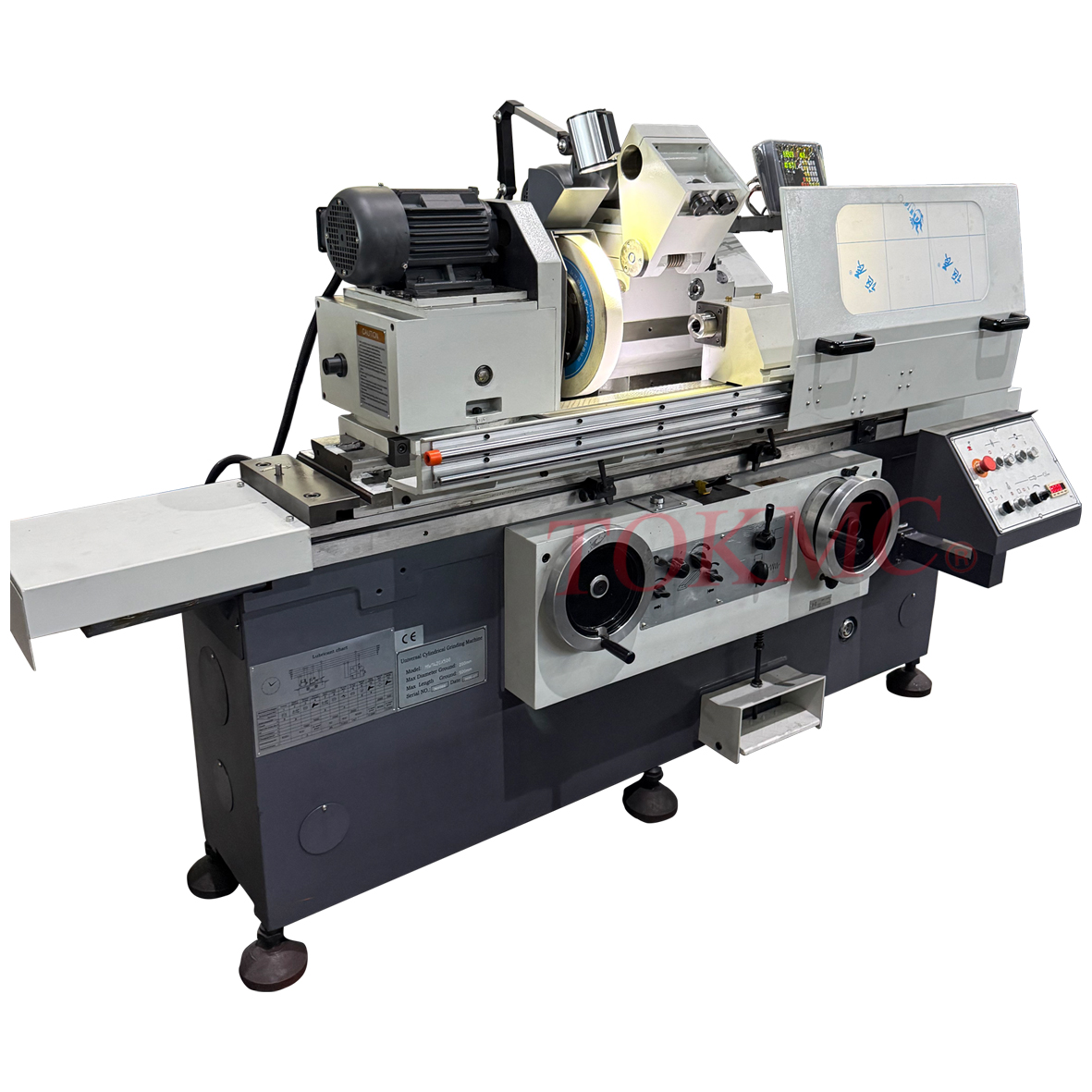

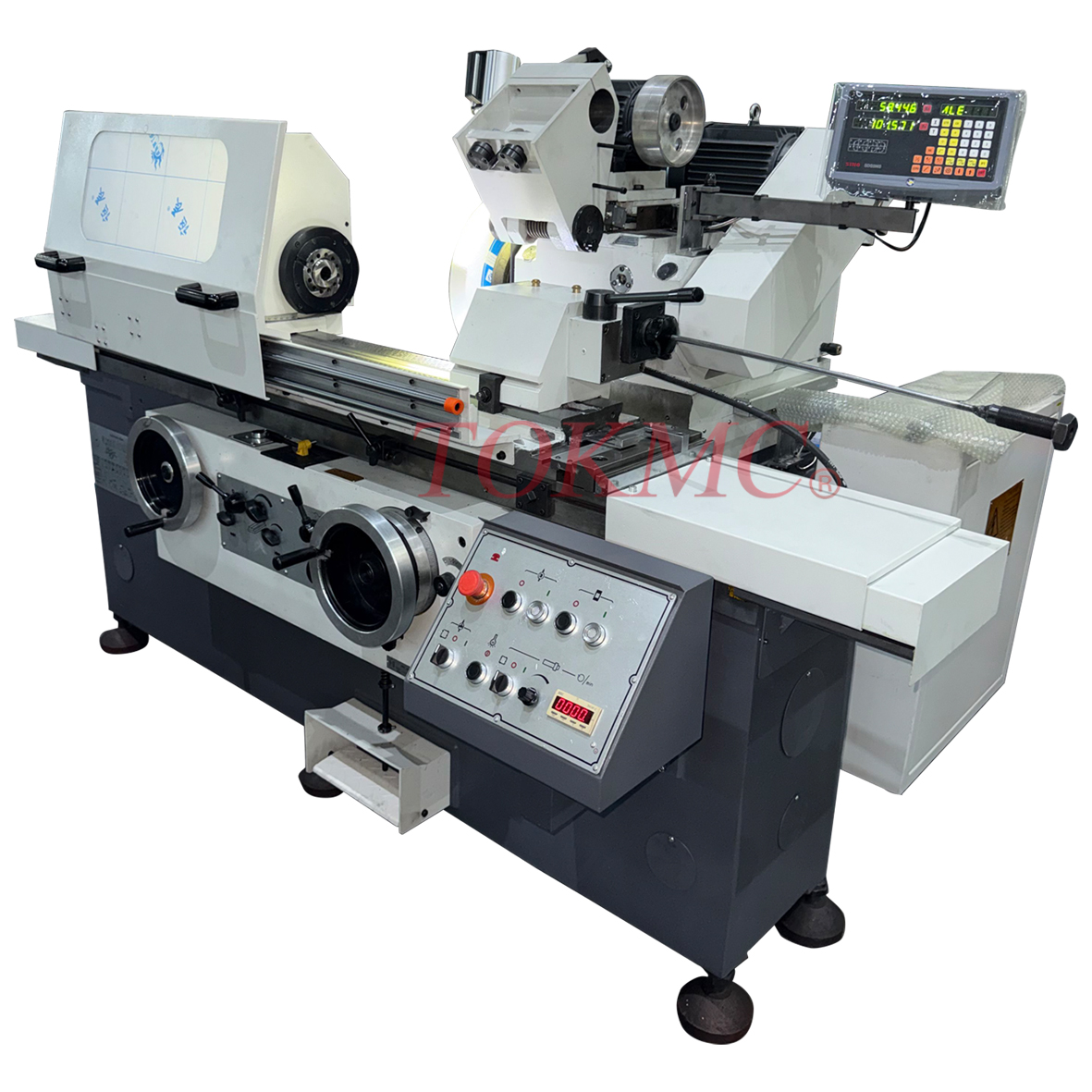

Universal Cylindrical Grinding Machine and Accessory:
Tank coolant
Reading digital

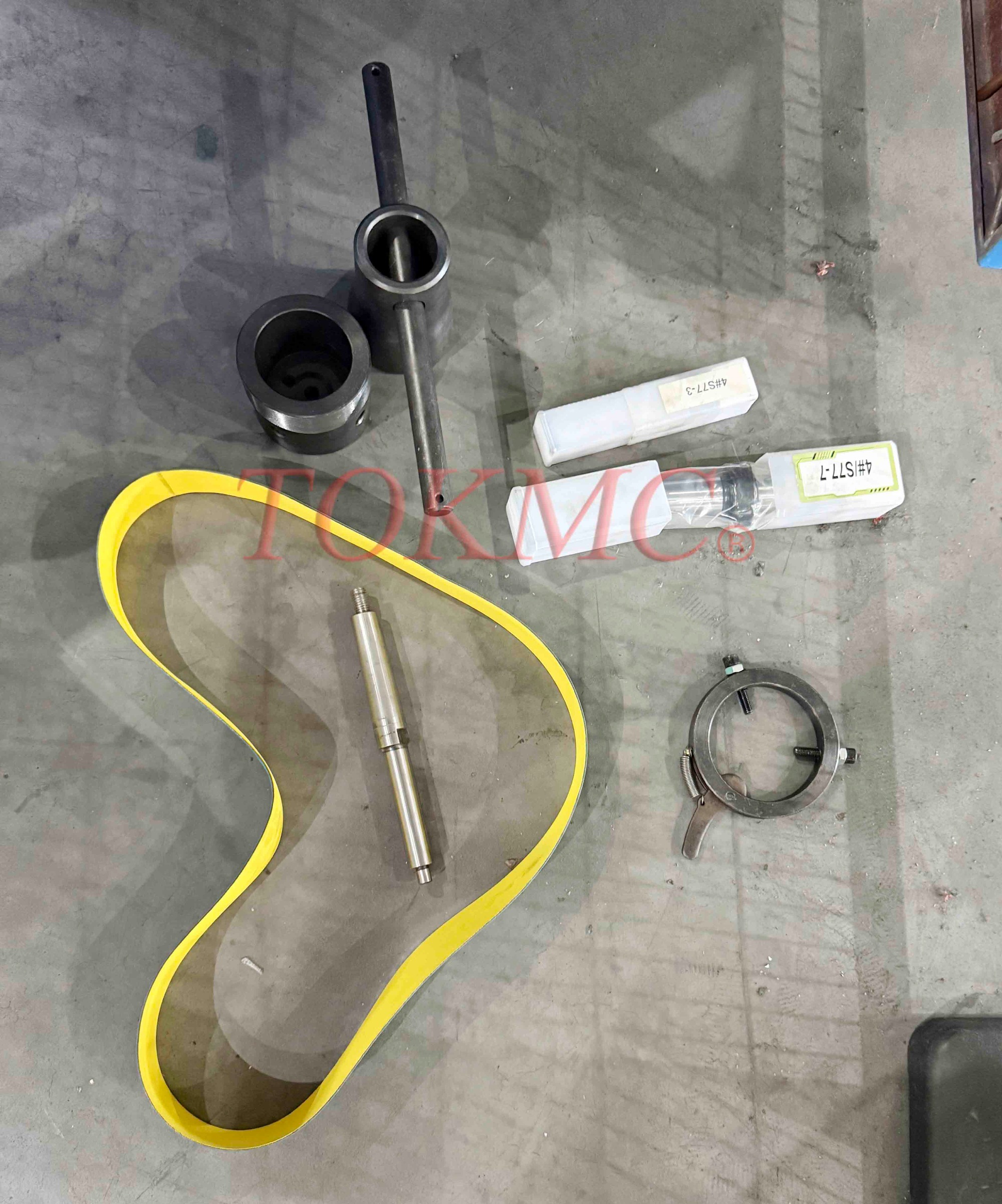

Dresser , grinding wheel
Pin balancing , 4 fangs
Bumper , tools for disassembly grinding wheel
Ring sealing , mounting for balancing
Grinding wheel
Instructions in English
Head for grinding internal
Nozzle grinding internal
3 jaw chuck
Declaration compliance CE Ce declaration
Rest open and closed
4- jaw chuck
Item tokmc Universal Cylindrical grinding MW1420x500Rise fangs mm l00Distance between fangs mm 500Area grinding Ø/mm Ø200x500mmDiameter for shafts with support mm 8-60Diameter for rollers without steadies mm 8-200Diameter for holes mm 25-l00Maximum Libra detail kg l00Maximum length processing external mm 500Maximum length processing internal mm l00Height axis mm l35Cone head rev . MK MT4Cone horse MK MT4Min. feed mm 0.0025mmShift sleeve horse mm 30Speed spindles head rpm 26-260 variableDiameter 3-jaw chuck mm l65Dimensions grinding wheel Ø/mm 400/50/203Maximum width grinding wheel mm 50Speed peripheral grinding wheel m/s 35Max shift transverse mm 205Shift transverse on rotation mm Coarse 2.0/ precise 0.5Scale shift transverse mm 0.01/0.0025Fast infeed mm 50Range turnover head grinding wheel º C.W 30° , C.C.W 30°Diameter grinding wheel for holes mm Max 30 x 25 x 10 mmMin. 17 x 20 x 6 mmSpeed turning the grinding wheel for holes rpm 10000Max range turnover table º C.W 3° , C.C.W 9°Efficiency pumps coolant L/min 25L/minEngine grinding wheels for rollers kW / rpm 4kwEngine head rotary kW / rpm 1. 1kwEngine grinding wheel for holes kW / rpm 1. 1kwEngine power supply hydraulic kW 1. 1kwPump coolant kW / rpm 0. 125kw
