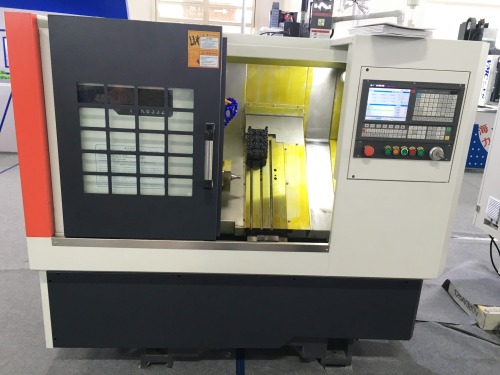

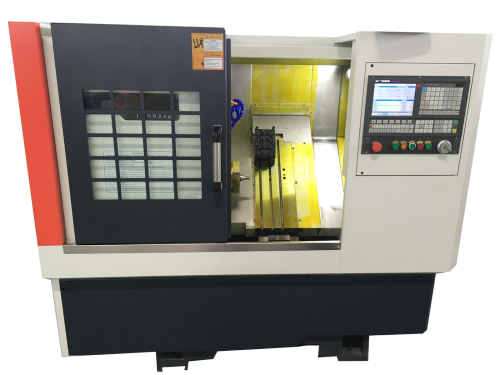

slant bed horizontal cnc lathe

Item No.: 148
This cnc lathe is available for processing various shaft ,disc parts, turning can be all kinds of scre thread, arc, cone and plane internal and external surface,
It is satisfied with ferrous and non-ferrous metal high speed cutting.
Add to Inquiry
Feature :
  1. 45 degree slant bed cnc lathe
  2. Higher accuracy taiwan linear guideways
  3. Chip convey is optional, right or in the back position
  4. Spindle units two types, heavy duty cutting for bearing and gear processing and high speed type for high precision processing. It is optional for customer
  5. Screw pre-stretching structure
  6. Standard gang tools, optiona turret tools.
specification TOK6332
Max. swing over bed 320mm
max. swing over cross slide 110mm
Max.processing length 250mm
x axis travel 300mm
z axis travel 250mm
Spindle unit 140mm
Spindle nose A2-5
Spindle bore 48mm
Bar capacity 40mm
Max.spindle speed 4000 rpm
Chuck size 6
Spindle motor 3.7kw
X/Z axis repeatability ±0.003mm
Feed Motor torque on X/Z axis 4/6 N.M
X/Z axis rapid traverse 15/15 m/min
Turret type Gang tools
Cutting tool size 20x20mm
Guidway type 45 degree
Total power capacity 9/11 kva
Size 192x135x170CM
Weight 2000kgs
