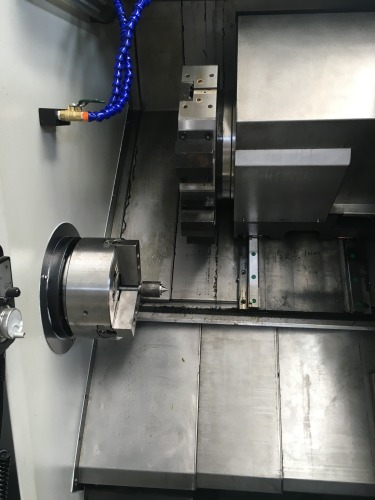

Slant bed cnc lathe TOK66A

Item No.: 147
High accuracy taiwan linear guideway
High speed spindle unit,
High rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Add to Inquiry
Specification unit TOK66A
Max.swing over bed mm 660
Max.swing over cross slide mm 400
Max.processing length mm 700
Spindle unit mm 260
Spindle nose (optional chuck)   A2-8
The spindle motor power Kw 11
Max.spindle speed rpm 2800
Spindle bore mm 85
Bar capacity mm 75
The X/Y axis screw specifications   4010/4010
Max. X axis travel mm 260
Max.Z axis travel mm 800
Motor torque on X axis N.M 10
Motor torque on Z axis N.M 10
X/Z axis repeatability mm ±0.003
Tool turret (optional)   100-8T/12T
Center height on tool turret mm 100
Hdyraulic quill dia. mm 100
Hydraulic quill traverse mm 80
Hydraulic quill taper   M.T.5
Hyraulic tailstock travel mm 650
Machine size (LxWxH) mm 3700x2000x2100
Net Weight Kg 4800
